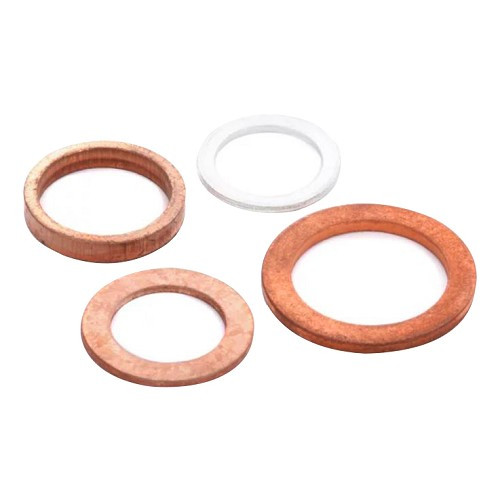

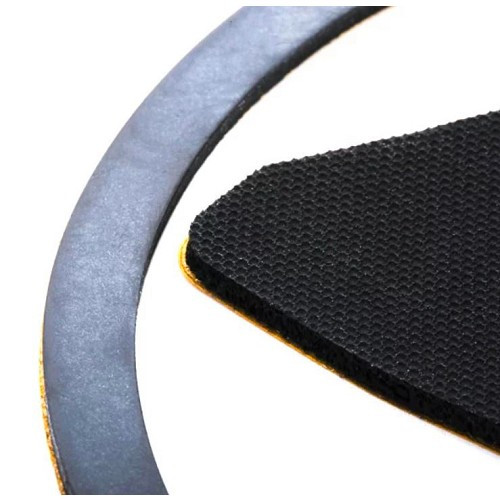

Complete set of crankcase bottom gaskets for VW Golf 1 1.5 1.6 petrol diesel and 1.8 petrol

Details about : Complete set of crankcase bottom gaskets for VW Golf 1 1.5 1.6 petrol diesel and 1.8 petrol

Complete set of crankcase bottom seals for Volkswagen Golf 1 Sedan, Cabriolet and Caddy:

Sedan :
- 1.5L 70hp from 02/1974 to 12/1975 (engine code FH)
- 1.5L 70hp from 08/1977 to 12/1983 (engine code JB)
- 1.5L 85hp from 02/1974 to 09/1975 (engine code FD)
- 1.6L 65hp from 12/1976 to 07/1978 (engine code FV)
- 1.5L 75hp from 09/1975 to 07/1977 (engine code FP)
- 1.6L 75hp from 08/1979 to 07/1981 (engine code EM)
- 1.6L 75hp from 01/1976 to 07/1979 (engine code FN)
- GTI 1.6L 110hp from 06/1976 to 07/1982 (engine code EG)
- 1.8L 90hp from 08/1983 to 12/1983 (engine code EX)
- GTI 1.8L 112hp from 08/1982 to 12/1983 (engine code DX)
- GTI 1.8L 112hp from 08/1982 to 12/1983 (engine code JJ)
- 1.5D 50hp from 08/1976 to 07/1980 (engine code CK)
- 1.6D 54hp from 08/1980 to 07/1982 (engine code CR)
- 1.6D 54hp from 08/1982 to 12/1983 (engine code JK)
- GTD 1.6TD 70hp from 08/1981 to 12/1983 (engine code CY)

Cabriolet :
- 1.5L 70hp from 01/1979 to 12/1983 (engine code JB)
- 1.6L 72hp from 04/1986 to 12/1990 (engine code RE)
- 1.6L 75hp from 08/1979 to 07/1983 (engine code EM)
- 1.6L 75hp from 08/1983 to 04/1992 (engine code EW)
- 1.6L 75hp from 08/1983 to 04/1992 (engine code HN)
- GLI 1.6L 110hp from 08/1979 to 07/1982 (engine code CE)
- GLI 1.6L 110hp from 08/1979 to 07/1982 (engine code EG)
- 1.8L 90hp from 08/1983 to 09/1992 (EX engine code)
- 1.8L 95hp from 08/1983 to 04/1993 (engine code JH)
- 1.8L 98hp from 08/1989 to 07/1993 (engine code 2H)
- 1.8L 112hp from 08/1982 to 12/1989 (engine code DX)
- 1.8L 112hp from 08/1982 to 12/1989 (engine code EV)
- 1.8L 112hp from 08/1982 to 12/1989 (engine code PB)
- 1.8L 112hp from 08/1982 to 12/1989 (engine code KT)

Caddy :
- 1.5L 70hp from 08/1982 to 07/1983 (engine code JB)
- 1.6L 75hp from 08/1982 to 07/1983 (engine code EM)
- 1.6L 75hp from 08/1983 to 07/1989 (engine code EW)
- 1.6L 75hp from 08/1983 to 07/1989 (engine code HN)
- 1.8L 95hp from 08/1985 to 07/1992 (engine code JH)
- 1.6D 54hp from 08/1982 to 07/1992 (engine code JK)
- 1.6D 54hp from 08/1982 to 07/1992 (engine code ME)

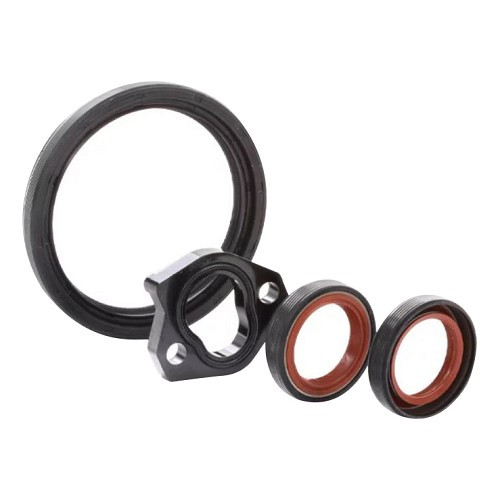

Kit includes crankshaft oil seal.

When disassembling the crankcase, be sure to clean the gasket surfaces on the crankcase and on the engine to avoid over-thickness, which could lead to further leakage.

Original reference:

037 198 011 C

032 103 609 B
