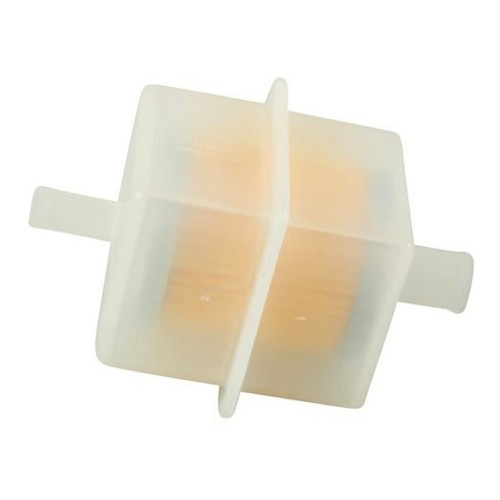

Fuel filter for carburettor, large model

Details about : Fuel filter for carburettor, large model

Fuel filter specific to flat 4 fuel injection
Inlet diameter 8 mm / Outlet diameter 13 mm
German quality

For VW :
- Beetle Saloon & Convertible with fuel injection, 08/1974 ->01/1980
with engine 1600cc L-Jetronic 50hp type AJ.
- Bay Window Combi 2.0L with fuel injection, 08/1974 ->07/1979
from chassis N° 215 2000 001->
- Transporter T25 / T3, 2.0L injection, engines
- 2.0L 70hp (CV) injection, 05/1979 ->15/1982
- 1.9L 82hp (DH), 90hp (GW) injection, 01/1983 ->07/1985
- 1.9L 60hp (DF), 78hp (DG), 08/1982 ->07/1992
- Porsche 914-4 1.8 to 2.0 with fuel injection

Observe the direction of fitting: arrow -> pointing towards the carburettor

Original reference:

133 133 511

311 133 511
