Digital multimeter with USB interface

Qty :

In stock

Shipped by Mecatechnic on: Monday, August 18, 2025

Delivery mode

Home delivery : 54.00€

Collect at store Wambrechies (France) : Free

Description Product

Customer review

Your questions

Description Product

Details about : Digital multimeter with USB interface

Multimeter for automotive use, for 2 and 4-stroke engines.

Technical information :
USB port for PC connection : yes
Data retention function (saves the measured value): yes
Overload indicator: yes
Low battery indicator: yes

Measurement range:
DC Voltage: 6 / 60 / 600 / 1000 V
Alternating voltage: 6 / 60 / 600 / 1000 V
Continuous current: 60 mA / 600 mA /6A / 20A
Alternating current: 60 mA / 600 mA / 6A / 20A
Resistance: 600 Ohm / 6 kOhm / 600 KOhm / 6 MOhm / 60 MOhm
Continuity: audible signal sounds at below 20 ohms
Diode: test current approx. 0.8 mA
Capacity: 40nF to 4000uF
Temperature: -20°C to 400°C
Frequency: 10 Hz to 10 MHz
Lifecycle: from 0.5% to 99.9%
Tachometer: 120 to 20,000 rpm
Dwell : (0-90°) / (0-72°) / (0-60°) / (0-45°)
Pulse width from 0.5 ms to 20ms

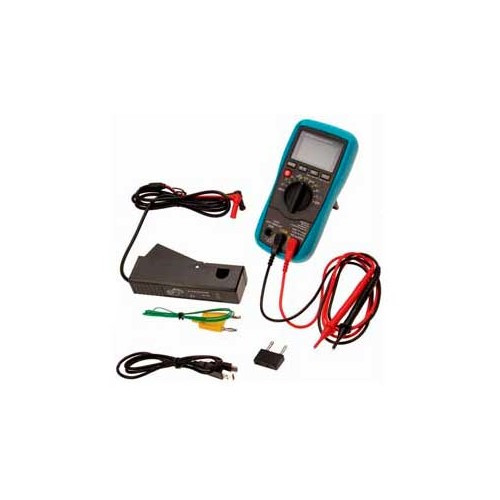

Includes: temperature sensor, condenser adapter, inductive pick-up, 2 measurement cables, USB cable CD with driver / software, bag and 9V battery

Pdf

Customer review

4 Feedback

5

1 Feedback
4

2 Feedback
3

1 Feedback
2

0 Feedback
1

0 Feedback

With Trusted Shops, we can improve directly thanks to your comments posted on the MECATECHNIC website

Sort by

Best reviews

Yann J

05/03/2024 - France (except Dom-Tom-Corsica)

Good product, but the red and black measurement cables have too much resistance and will need to be replaced for accurate measurements, especially for measurements on low resistances.

Sandro P

18/10/2019 - France (except Dom-Tom-Corsica)

Good, but the supplied battery is dead

Show responses
