Safety regulator "S" propane 37mbar CLESSE

The new S EVOLUTION range is a benchmark in propane pressure regulation and safety. Its design is in line with our Clesse EVOLUTION product range. A cut-off and second stage valve, its use is appreciated in recreational vehicles and mobile homes.
For the first time, users will see a clear, visual indication of "no gas" - "no pressure" - and can quickly determine the measures needed to remedy the situation, without having to check the gas cylinders.

Thus, any failure of the supplied appliances, cut or damage to the gas supply piping will activate the safety function immediately visible through the SAFETY SCOPE indicator integrated into the new ergonomic VISIOCONTROL joystick.

Technical specifications:
- Gas: propane.
- NF certified.
- Pressures: inlet (E) (Pu) bar: 0.525 - 19.5; outlet (S): 37 mbar.
- Output: 4 Kg/h - 55 Kw.
- UPSO Mbar safety: 25.
- Body and cover: zamac (EN 1774).
- LPG-resistant NBR seals and diaphragm (EN 549).
- Polyamide protective shell.
- Connections: I/O: MM 20x1.5.
- Connection tightening torque: 10 to 20 N.m.

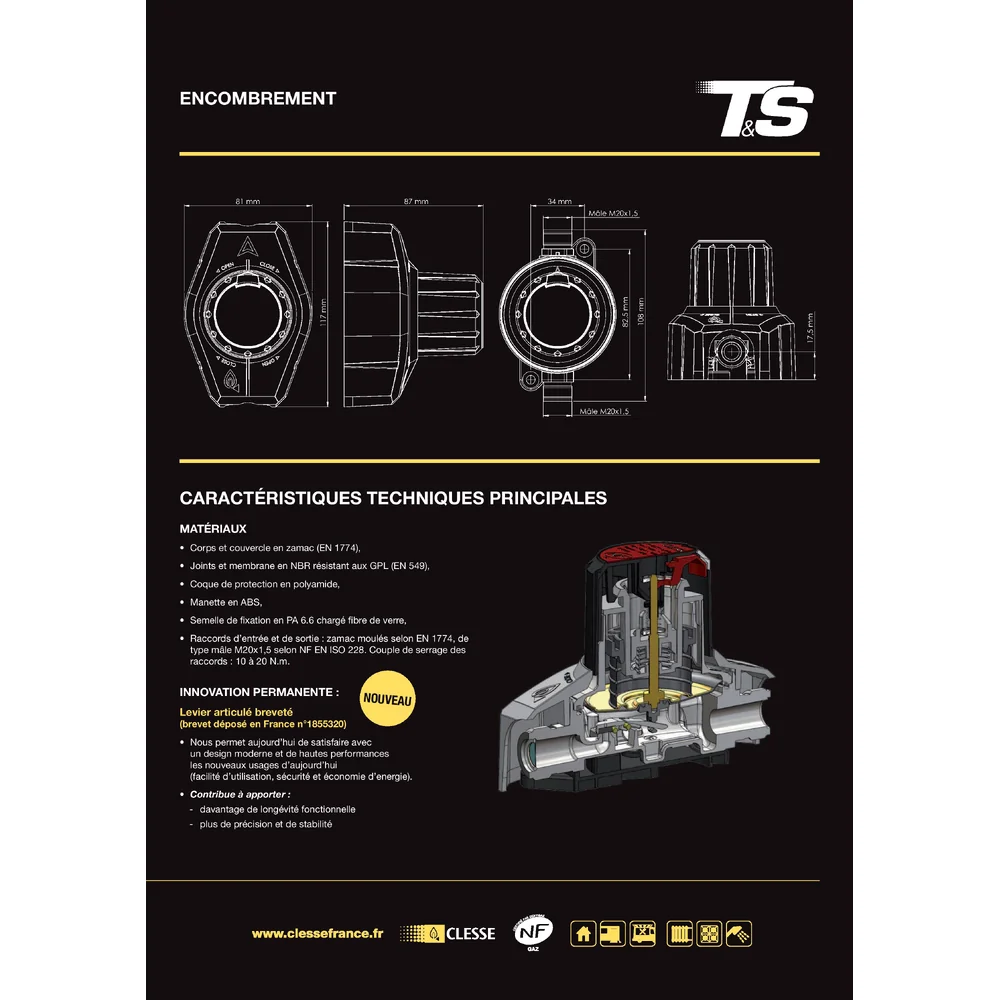

- Dimensions (LxWxH): 117x 81 x 88 mm
- Weight: 372 g

Ref. Clesse 6475400
