Wheel and tire

Van Lifers and other enthusiasts of outings in vans and converted vans, don't leave home without your Fiamma LEVEL UP kit. This kit of levelling wedges is essential for those who have to cope with variations in the level of the ground where they park.Designed for outdoor and indoor parking of leisure vehicles, they are weatherproof thanks to their UV-resistant polyethylene structure.  Lightweight and strong, they won't rust.With their 3 levels, each chock adapts to the terrain you're on.  Each wheel chock can support 2.5 tonnes, i.e. 5 tonnes per axle.They are ideal for use on camping sites, in the countryside and especially for long-term parking.For practicality's sake, they come with a suitable storage bag.Non-stackable wheel chocks.
Colour: grey.
Dimensions (wedge): 57x20x13 cm.
Number of levels: 3.
Maximum load per axle: 5 tonnes (2.5 tonnes per wedge).
Weight (wedge): 1.45 kg.
Sales unit: Pair of chocks.Ref Fiamma 97901-059

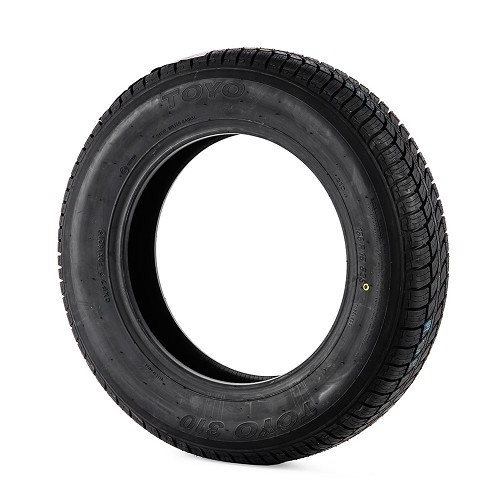

Tubeless tire
Size 155 x 80 x R 15

Quality Toyo tire

Packed in a box

Pair of 10 mm Aluminium shims
Double drilled: 5 x 100 / 5 x 112
57.1 mm diameter centering ring for VW, AUDI
Shims sold separately, without screws and bolts

Set of 4 polished stainless steel hubcaps

For 15-inch diameter steel wheels.

Universal.

Caution: To fit and clip correctly, rims need to be at least 5cm deep.

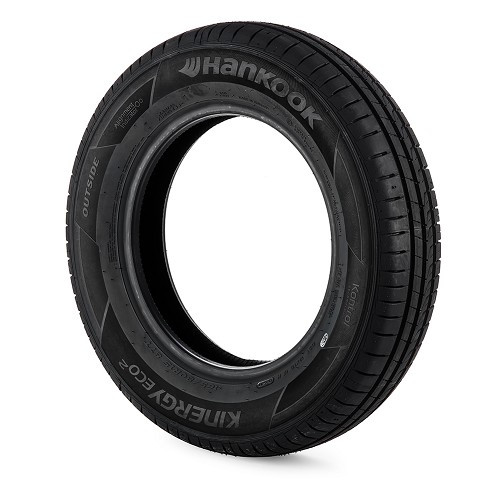

Tubeless tire
Size 165 / 80 / R15

Quality Hankook or Nankang tires, depending on availability

Pair of 20mm aluminium shims
Double drilled: 4 x 100/4 x 108
Spacer ring, diameter 57.1mm for VW, AUDI and BMW
Spacers sold without screws and bolts

Pair of 20 mm Aluminium shimsDouble holes: 4 x 100 / 4 x 108Porsche 924 2.0 have 4x108 center distance57.1 mm diameter centering ringShims sold separately without screws
Remember to measure your original screws and order the equivalent ones with 20 mm more thread, and check the fit of the screw head required on your rims.

Worn or punctured, you need to replace your tire. This 400x8 or 480x8 trailer tire is for you!
4Ply.
Tubeless.
Load-speed index: 62M.
Tire width: 6.5 cm.
Max. load/tire: 265 kg.
Maximum speed: 130 Km/h.
Sold individually.

Pair of 15mm aluminium shims
Double drilled: 4 x 100/4 x 108
Spacer ring, diameter 57.1mm for VW, AUDI and BMW
Spacers sold without screws and bolts

M12 x 1.5 steel wheel bolt with 60° tapered base and 50 mm long thread.

Technical details:
Thread: M12 x 1.5
Base: 60° conical
Key opening: 17 mm
Thread length: 50 mm
Total length: 75 mm

Set of 16 M12 x 1.5 wheel bolts with 60° seat.

Technical details:
Thread: M12 x 1.5
Seat: 60° taper
Key opening: 17 mm
Thread length: 39 mm
Total length: 64 mm

CAMPER's Flat Jack inflatable chock relieves stress on chassis and tires when parking on uneven terrain. It fits tires up to 255 cm wide and vehicles with a GVW up to 7.5 t.
Inflatable via a valve adaptable to a standard compressor (not supplied), it's easy to use and takes up no space (66x1x43 cm folded) when stowed in the motorhome. Made from a double-walled air cushion, it is particularly resistant.
One cushion can lift the vehicle up to a height of 6 cm.A maximum ofone additional cushion can besuperimposed, raising the vehicle up to 12 cm.
Composition: Polyurethane (PU) / Nylon.
Operating pressure: 0.6 to 1.0 bar max.
Weight: 0.7 kg.
Sold individually.

Steel wheel bolt M14 x 1.5 with 60° conical seat, 63.5mm long.

Thread: M14 x 1.5
Seat: 60° taper
Thread length: 40 mm
Total length: 63.5 mm
Key opening: 17 mm

M12 x 1.5 steel wheel bolt with 60° tapered base and 42 mm long thread.

Technical details:
Thread: M12 x 1.5
Base: 60° conical
Key opening: 17 mm
Thread length: 42 mm
Total length: 67.5 mm

TR13 valve tube for 175/185 x 15 tyres.

For tyres:
- 175 x 15
- 185 x 15

Valve type: TR13
Packaged in a box.

Surface: spherical
Thread type: M14 x 1.5
Thread length: 19mm

M12 x 1.5 steel wheel bolt with spherical seat and 45 mm long thread.

Technical details:
Thread: M12 x 1.5
Seat: spherical
Key opening: 17 mm
Thread length: 45 mm
Total length: 65 mm

Hemispherical 14 x 150 mm bolt
Length of thread: 27 mm
Sold per unit.

M14 x 1.5 original steel wheel bolt, 27mm long, with spherical seat.

Thread: M14 x 1.5
Seat: spherical
Key opening: 17 mm
Thread length: 27 mm
Total length: 48 mm
