Discover the TOOLATELIER strobe lamp, Mecatechnic's famous tool brand.

Before describing the strobe lamp with advance phase shift, it is useful to describe the operating principle of the ordinary setting strobe lamp (without advance phase shift).

The strobe lamp is a lamp that operates on the stroboscopic principle. Namely, a rotating part of the motor is described as stationary by reference to a very brief flash that occurs several times in synchronization with the rotation of the motor.

The part of the engine that is described as stationary using the strobe light is a timing mark that the carmaker has provided on one of the engine's rotating components, such as the fan belt pulley or the engine flywheel. There is always a fixed mark on the engine, close to the point where the moving mark passes through, which is used as a reference point for the rotating mark.

In addition to the standard lamp, the phase-shifting strobe lamp is equipped with a self-powered flash tube that is independent of the spark plug and the phase-shifting electronic circuit. In this case, the degree of ignition advance required by the vehicle can be set by means of a knob on the pistol. The flash will be triggered with a delay in relation to the spark plug ignition, and will therefore be out of phase.

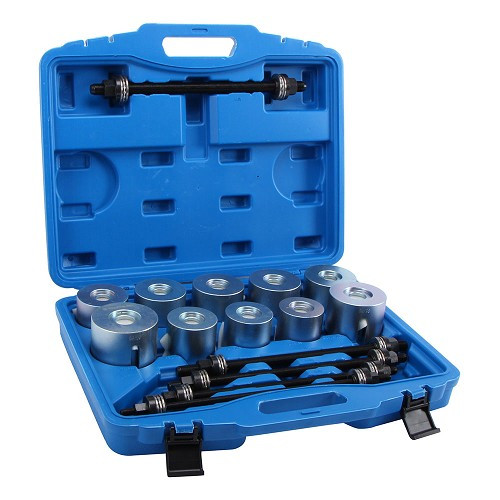

This TOOLATELIER kit is ideal for mounting and dismounting silentblocs, bearings and spherical plain bearings.

How to use this silentblocs tool?

This set can be used in 2 ways:
Either manually on a workbench and/or directly on the vehicle, or with a hydraulic press.

What are the technical specifications?

These bushes are 5 mm thick and 60 mm high. The set comprises bushes with external diameters of 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 85, 90 mm. Rod threads are 10 x 1.5 / 12 x1.5 / 14 x 1.5 / 16 x 1.5 / 18 x 1.5 mm with a screw length of 350 mm.

Flange press for brake lines witha 3/16" SAE - 4.75 mm DIN diameter

- 45º
- 6 mm DIN - 45°
- 8 mm DIN - 45°
- 10 mm DIN - 45°

For braking systemswith rigid copper, steel and stainless steel tubing.

This TOOLATELIER manual brake bleeder is designed for use with most master cylinder reservoirs.

Once this bleeder is connected, fill the canister with fluid and pressurize the circuit by pumping. You can then carry out the bleeding operation without external assistance.
Reservoir capacity: 2 liters.

Int. cap diameter: 42.24 mm for 43 mm expansion vessel.

Supplied with European adapter.

Content includes: Gas tester instrument including
Calibrates in air, no moving parts to wear out
No filters to change
Accurate to 0.5% C.O measurement at 15-25?C
Accurate to 0.5% C.O measurement at 15-25?C
Instructions included

This TOOLATELIER tool kit enables theremoval and fitting of wheel bearings.
This kit can be used for various makes of vehicle.

What's the material?
Thisextractor set is made of forged and hardened carbon steel.

What's in the set?
It comes with 9 bearing compression plates, outside diameters: 55.5, 59, 62, 65, 66, 71.5, 73, 78 and 84 mm
1 x extraction shaft
3 x extraction bell :
- outer Ø: 76 mm, 86 mm and 91 mm
- inner Ø: 70 mm, 76 mm and 82 mm

Various clamping screws
Hub screws: M12 x 1.5 and M14 x 1.5mm


Supplied in rigid case

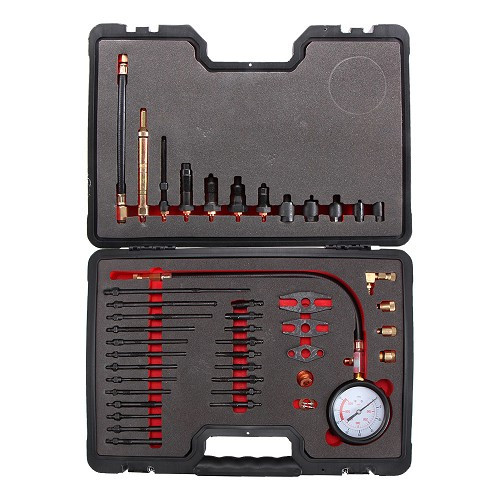

This complete set of TOOLATELIER brand tools enables you to test the compression of diesel and gasoline vehicles on most modern engines, vans, trucks, buses and agricultural machinery.

Injector adapters: M20, M22 and M24
Spark plug adapters: 10x1, 12x1.25, 18x1.5

Spark plug adapters for Alfa Romeo, BMW, Chrysler, Citroën, Daewoo, Fiat, Ford, Honda, Hyundai, Isuzu, Jeep, Kia, Lada, Lancia, Land Rover, LDV, Mazda, Mercedes, MG, Mitsubishi, Nissan, Peugeot, Renault, Rover, Saab, Ssangyong, Suzuki, Toyota, VAG, Vauxhall / Opel, Volvo.

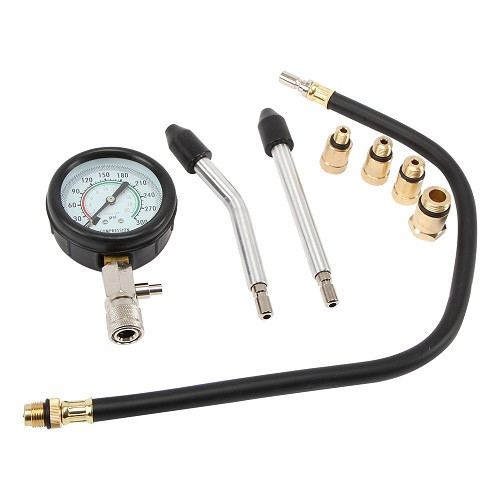

This TOOLATELIER gasoline engine compression tester, also known as a compressiometer , is a good way to get a clearer idea of the general condition of the heart of your car, motorcycle, lawnmower, boat...

This tool set includes 4 adapters to match the most common spark plug shafts:
- M10 x 1.0
- M12 x 1.25
- M14 x 1.25
- M18 x 1.5

-> 1 large-dial compression gauge 0-300 psi
-> 2 quick-connect tubes: straight

Ideal for removing glow plugs electrodes
Suitable for glow plug threads of M8 x 1.0 /M10 x 1.0 / M10 x 1.25

Contents:

- Threaded shanks: M8 x 1.0- M10 x 1.0 - M10 x 1,25,
- Tap: M3 x 0.5 x 100 mm
- Tap: M4x 0.7 x 100 mm
- Special drill bits: 2.5 x 120 mm - 3.3 x 140 mm
- Extraction bolts 180 mm M3 and M4

This TOOLATELIER extractor is ideal for unblocking axial ball joints , also known as steering tie-rods , at the end of rack-and-pinion joints.
How does this tool work?
The principle is simple: the rollers grip the axle to allow it to rotate, and that's it.To be used with a 27" hexagonal key or 1/2" square spanner.
What sizes are available?It covers connecting rod head sizes from 30 to 45 mm.
Sizes of the 3 interchangeable heads:1st: 30 to 35 mm2nd: 35 to 40 mm3rd: 40 to 45 mm

Ideal for the driving wedging with distribution by chain for certain Fiat, Opel, Ford et Suzuki.
For Fiat 1.3 JTD :

- Punto : 1.3 JTD Multi- Jet 188A9.000 (2003-2007)
- Panda : 1.3 JTD Multi- Jet 169A1.000 & 188A8.000 (2003-2009)
- Idea : 1.3 JTD Multi- Jet 199A3.000 & 188A9.000 (2004-2006)
- Doblo : 1.3 JTD Multi- Jet 188A9.000 (2004-2006)
- Doblo Cargo : 1.3 JTD 188A9.000 (2004-2006)

For Opel 1.3 CDTi :

- Agila : 1.3 CDTi Z13DT (2003-2008)
- Corsa C : 1.3 CDTi Z13DT (2003-2007)
- Combo C : 1.3 CDTi Z13DT (2003-2009)
- Corsa D : 1.3 CDTi Z13DTH & Z13DTJ (2006-2009)
- Astra H : 1.3 CDTi Z13DTH (2004-2009)
- Tigra B : 1.3 CDTi Z13DT (2004-2009)
- Meriva : 1.3 CDTi Z13DT & Z13DTJ (2004-2009)

For Ford 1.3 TDCi :

- KA : 1.3 TDCi

For Suzuki 1.3 CDTi :

- Ignis : 1.3 CDTi Z13DT (2003-2009)
- Wagon : 1.3 CDTi Z13DT (2003-2009)
- Swift : 1.3 CDTi Z13DT (2003-2010)

This tool allows a person to easily bleed the brake system and clutch circuit unaided.

Air pressure: 6 to 12 bars
Size: (W) 225 mm x (L) 135 mm x (H) 192 mm

Nissan K4M (1.6 16V), F4Rt (2.0 16v)
Nissan Kubistar, Primastar 1.6/2.0 engines.

Manufacturer code :
MOT1489
MOT1054
MOT1496

This brake pressure testerenables to control the state andefficacity of your brake circuit by pressure.
The different connexionadaptators have to be placed on the brake caliper, or on the wheel cylinder atthe drain screw for a drum brakes.

It has two manometers with a measure range from 0 to 250 kg/cm2 and 22 connexion adaptators.

Beforeeach utilisation, it's better to refer to the technical revue of the constructor.

Dismantle your shock absorber springs safely!

These TOOLATELIER brand clamps , also known as shock absorber spring compressors, are sold in pairs.

Maximum extension: 370 mm
Max. pressure: 1100 kg

How to remove a shock absorber spring

Remove the vehicle's suspension strut.
In a vice, position your strut so that it is securely held.
Compress the spring using compressor ref TA00056 and release the stop. For your own safety, this step must be followed.
Remove the stop and remove the spring.
To reassemble, proceed in reverse order.

This TOOLATELIER tool, also known asa "honer" or"cylinder grinder", deglazes cylinders and removes carbon deposits.

Diameter: 58 to 168 mm

Supplied with 3 sets of 3 stones, 2 spare sets grain n°180 and 1 set grain n°280

This set of TOOLATELIER brand sockets and nipples allows easy removal of the overrunning alternator pulley , also known as the overrunning alternator pulley . This task can be performed on or off the vehicle.

The principle is simple: it holds thealternator shaft in place while the pulley is removed.
The kit includes a full range of Torx TRX-Star, Spline and hexagon/ hexagon adapters. Ideal for a wide range of vehicles.

These alternator pulley wrenches are specially used for Bosch models and for Renault, VW, Audi, Seat, BMW, Mercedes and Ford vehicles.

Sizes :

- TORX T40 - T50
- XZN M8 - M10
- hexagonal 8 - 10 mm

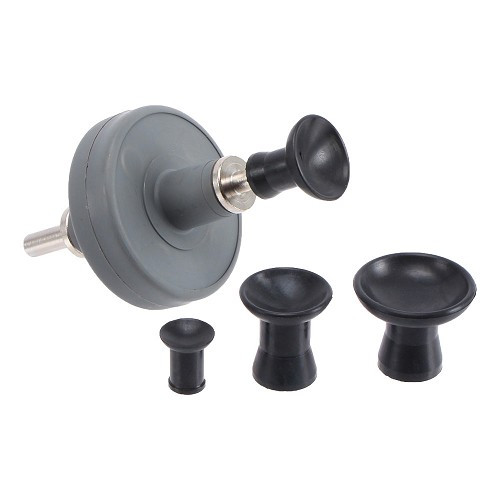

This TOOLATELIER valve honing tool is an indispensable aid for restoring car and motorcycle engines.

What's the point of valve honing ?

Good engine performance depends on valves with correct seats and seals. Poorly seated or carbonized valves, together with worn guides and stems, lead to hot gases escaping under pressure, reducing performance and increasing engine deterioration. Symptoms include loss of power and poor starting.

How does the run-in work?

It converts rotation into oscillating movement. Very practical, it fits standard 5/16"(8 mm) chuck drills. Polishes valves in two quick passes, producing gas-tight seals in seconds. Suction cup diameters 22/28/30/39 mm fit most valves.

Allows valves to be honed in the same way as by hand (oscillating movement), but much faster and more evenly.

This set of tools is essential for the maintenance of injector seats so that they keep their sealing properties.

Used to clean your rods, tips and nozzles.

Delivered with two cleaning brushes and a control cone for perfect centring.

It also has sealing plugs to prevent any deposits from falling into the combustion chamber.

Universel, it is suitable for a wide range of brands such as BMW, Mercedes, Renault, Peugeot, Citroen, Fiat an many others...

Contents:
1 Milling cutter 14/14 mm flat
1 Milling cutter 15/19 mm flat
1 Milling cutter 15.5/15.5 mm flat
1 Milling cutter 15.5/15.5 mm tapered
1 Milling cutter 17/17 mm flat
1 Milling cutter 17/17 mm tapered
1 Milling cutter 17/17.5 mm flat
1 Milling cutter 17/19 mm flat
1 Milling cutter 17/19.5 mm flat
1 Milling cutter 17/20 mm flat
1 Milling cutter 17/21 mm tapered
1 Milling cutter 17.5/20.5 mm tapered
1 Milling cutter 19/21.5 mm flat
4 cleaning brushes, a brush holder and extension
1 hexagonal cutter holder 19 x 170 mm
T-wrench 135x172 mm
A cutter 13 x 225mm and a guide for the cutter
Seal puller
Allen key, 2.5 mm
Net weight: 4.82 kg

This kit enables S.A.C (Self Adjusting Clutch => Automatic Wear Compensation) clutches to be removed and installed.

With 3 or 4 mounting holes.

Maximum center distance: 310 mm

Examples of models:

Audi A3, A4, A6, A8, VW Passat, Golf, Sharan, Tiguan, Ford Mondeo, S-Max, Galaxy, Transit, Mercedes C, E, CLS, S, CLK, SLK, SL, BMW 320, 330, 520, 530.
For Alfa Romeo 147, 159, 166, Fiat Ulysse, Croma, Ducato, Lancia Phedra, Thesis.
