Discover the TOOLATELIER strobe lamp, Mecatechnic's famous tool brand.

Before describing the strobe lamp with advance phase shift, it is useful to describe the operating principle of the ordinary setting strobe lamp (without advance phase shift).

The strobe lamp is a lamp that operates on the stroboscopic principle. Namely, a rotating part of the motor is described as stationary by reference to a very brief flash that occurs several times in synchronization with the rotation of the motor.

The part of the engine that is described as stationary using the strobe light is a timing mark that the carmaker has provided on one of the engine's rotating components, such as the fan belt pulley or the engine flywheel. There is always a fixed mark on the engine, close to the point where the moving mark passes through, which is used as a reference point for the rotating mark.

In addition to the standard lamp, the phase-shifting strobe lamp is equipped with a self-powered flash tube that is independent of the spark plug and the phase-shifting electronic circuit. In this case, the degree of ignition advance required by the vehicle can be set by means of a knob on the pistol. The flash will be triggered with a delay in relation to the spark plug ignition, and will therefore be out of phase.

This complete set of TOOLATELIER brand tools enables you to test the compression of diesel and gasoline vehicles on most modern engines, vans, trucks, buses and agricultural machinery.

Injector adapters: M20, M22 and M24
Spark plug adapters: 10x1, 12x1.25, 18x1.5

Spark plug adapters for Alfa Romeo, BMW, Chrysler, Citroën, Daewoo, Fiat, Ford, Honda, Hyundai, Isuzu, Jeep, Kia, Lada, Lancia, Land Rover, LDV, Mazda, Mercedes, MG, Mitsubishi, Nissan, Peugeot, Renault, Rover, Saab, Ssangyong, Suzuki, Toyota, VAG, Vauxhall / Opel, Volvo.

This TOOLATELIER gasoline engine compression tester, also known as a compressiometer , is a good way to get a clearer idea of the general condition of the heart of your car, motorcycle, lawnmower, boat...

This tool set includes 4 adapters to match the most common spark plug shafts:
- M10 x 1.0
- M12 x 1.25
- M14 x 1.25
- M18 x 1.5

-> 1 large-dial compression gauge 0-300 psi
-> 2 quick-connect tubes: straight

Ideal for removing glow plugs electrodes
Suitable for glow plug threads of M8 x 1.0 /M10 x 1.0 / M10 x 1.25

Contents:

- Threaded shanks: M8 x 1.0- M10 x 1.0 - M10 x 1,25,
- Tap: M3 x 0.5 x 100 mm
- Tap: M4x 0.7 x 100 mm
- Special drill bits: 2.5 x 120 mm - 3.3 x 140 mm
- Extraction bolts 180 mm M3 and M4

Ideal for the driving wedging with distribution by chain for certain Fiat, Opel, Ford et Suzuki.
For Fiat 1.3 JTD :

- Punto : 1.3 JTD Multi- Jet 188A9.000 (2003-2007)
- Panda : 1.3 JTD Multi- Jet 169A1.000 & 188A8.000 (2003-2009)
- Idea : 1.3 JTD Multi- Jet 199A3.000 & 188A9.000 (2004-2006)
- Doblo : 1.3 JTD Multi- Jet 188A9.000 (2004-2006)
- Doblo Cargo : 1.3 JTD 188A9.000 (2004-2006)

For Opel 1.3 CDTi :

- Agila : 1.3 CDTi Z13DT (2003-2008)
- Corsa C : 1.3 CDTi Z13DT (2003-2007)
- Combo C : 1.3 CDTi Z13DT (2003-2009)
- Corsa D : 1.3 CDTi Z13DTH & Z13DTJ (2006-2009)
- Astra H : 1.3 CDTi Z13DTH (2004-2009)
- Tigra B : 1.3 CDTi Z13DT (2004-2009)
- Meriva : 1.3 CDTi Z13DT & Z13DTJ (2004-2009)

For Ford 1.3 TDCi :

- KA : 1.3 TDCi

For Suzuki 1.3 CDTi :

- Ignis : 1.3 CDTi Z13DT (2003-2009)
- Wagon : 1.3 CDTi Z13DT (2003-2009)
- Swift : 1.3 CDTi Z13DT (2003-2010)

Nissan K4M (1.6 16V), F4Rt (2.0 16v)
Nissan Kubistar, Primastar 1.6/2.0 engines.

Manufacturer code :
MOT1489
MOT1054
MOT1496

This TOOLATELIER tool, also known asa "honer" or"cylinder grinder", deglazes cylinders and removes carbon deposits.

Diameter: 58 to 168 mm

Supplied with 3 sets of 3 stones, 2 spare sets grain n°180 and 1 set grain n°280

This set of TOOLATELIER brand sockets and nipples allows easy removal of the overrunning alternator pulley , also known as the overrunning alternator pulley . This task can be performed on or off the vehicle.

The principle is simple: it holds thealternator shaft in place while the pulley is removed.
The kit includes a full range of Torx TRX-Star, Spline and hexagon/ hexagon adapters. Ideal for a wide range of vehicles.

These alternator pulley wrenches are specially used for Bosch models and for Renault, VW, Audi, Seat, BMW, Mercedes and Ford vehicles.

Sizes :

- TORX T40 - T50
- XZN M8 - M10
- hexagonal 8 - 10 mm

This TOOLATELIER valve honing tool is an indispensable aid for restoring car and motorcycle engines.

What's the point of valve honing ?

Good engine performance depends on valves with correct seats and seals. Poorly seated or carbonized valves, together with worn guides and stems, lead to hot gases escaping under pressure, reducing performance and increasing engine deterioration. Symptoms include loss of power and poor starting.

How does the run-in work?

It converts rotation into oscillating movement. Very practical, it fits standard 5/16"(8 mm) chuck drills. Polishes valves in two quick passes, producing gas-tight seals in seconds. Suction cup diameters 22/28/30/39 mm fit most valves.

Allows valves to be honed in the same way as by hand (oscillating movement), but much faster and more evenly.

This set of tools is essential for the maintenance of injector seats so that they keep their sealing properties.

Used to clean your rods, tips and nozzles.

Delivered with two cleaning brushes and a control cone for perfect centring.

It also has sealing plugs to prevent any deposits from falling into the combustion chamber.

Universel, it is suitable for a wide range of brands such as BMW, Mercedes, Renault, Peugeot, Citroen, Fiat an many others...

Contents:
1 Milling cutter 14/14 mm flat
1 Milling cutter 15/19 mm flat
1 Milling cutter 15.5/15.5 mm flat
1 Milling cutter 15.5/15.5 mm tapered
1 Milling cutter 17/17 mm flat
1 Milling cutter 17/17 mm tapered
1 Milling cutter 17/17.5 mm flat
1 Milling cutter 17/19 mm flat
1 Milling cutter 17/19.5 mm flat
1 Milling cutter 17/20 mm flat
1 Milling cutter 17/21 mm tapered
1 Milling cutter 17.5/20.5 mm tapered
1 Milling cutter 19/21.5 mm flat
4 cleaning brushes, a brush holder and extension
1 hexagonal cutter holder 19 x 170 mm
T-wrench 135x172 mm
A cutter 13 x 225mm and a guide for the cutter
Seal puller
Allen key, 2.5 mm
Net weight: 4.82 kg

This TOOLATELIER brand valve lifter is designed to allow replacement of valve springs and valve stem sealing rings on overhead camshaft engines, without removing the cylinder head.

This tool is used on petrol and diesel engines for passenger cars and utility vehicles.

Technical characteristics :

The opening is 35 to 200 mm with a depth of 250 mm.
The tips are in sizes 25 and 30 mm.

This TOOLATELIER glow plug extractor is ideal for removing seized plugs and professionally repairing your well threads .
Contents :

- Tapered cutter for glow plug removal, 7 x 5.5 mm and 9 x 5.5 mm.
- Taps M8 x 1.0, M10 x 1.0 and 6.3 mm (1/4"), for recovering glow plug threads.
- Lever for tap with ratchet function
- E10 socket

Replacement tapered cutters are available in part no. TA00372.

This kit will allow you to set the timing of petrol engines on the following BMW models.

Vehicle types (with chain):

E46: 320i, 323i, 325i, 328i, 330i
E39: 520i, 523i, 525i, 528i, 530i
E38: 728i
E65: 730i
X3 E83: 3.0i
X5 E53: 3.0i
Z3: 2.0i, 2.2i, 2.8i, 3.0i
Z4: 2.5i, 3.0i

Engine codes:

M50: B20, B25
M50TU: B20, B25,

M52: B20, B25, B28
M52TU: B20, B25, B28,

M54: B22, B25, B30,

M56

Contents of the kit:

Camshaft timing tool: OEM 11 6 150
Locking block Cylinder 1-4 : OEM 11 2 445 or OEM 11 2 441
Locking block Cylinder 5-8: OEM 11 2 442 and OEM 11 2 446
Chain tensioner: OEM 11 4 220
Chain tensioner: OEM 11 4 230
crankshaft lock: OEM 11 2 300

Ideal for the removal / fitting of SPI seals (radial sealing rings)

For seals with a Ø of 21.5 to 64 mm.
This kit can be used on all radial seals, for example, on the camshafts, crankshafts, compensation shafts, etc.

Kit contents:

- 4 spacer rings
- 7 bearing rings to press the radial seals
- 7 adapters for the central bolts M8 - M20
- 2 grip pullers to remove the locked radial seals, max. pulling depth 35 mm

Full box for adjusting injection pump cushioning with comparator and adaptors.

Can be used for all vehicles with a brand pump: Bosch VE, Kikki, CAV Roto, Nippondenso, Denso.

This TOOLATELIER Damper pulley wrench is ideal for problem-free loosening and tightening of torsional damper pulleys on BMW engines.
Assignments :
- E81: 120D (163 hp)- E46: 318D (115 and 116 PS) / 318TD (115 hp)- E46: 320TD (150 hp)- E90: 318D (150 hp) / 320D (150 and 163 hp)- E91: 318D (122 hp) / 320D (150 and 163 hp)- E39: 520D (136 hp)- E60: 520D (150 and 163 hp)- E61: 520D (150 and 163 hp)- E83: X3 2.0D (150 hp)
Suitable for crankshaft pulleys with BMW part numbers:
11 23 7 787 30411 23 7 790 92111 23 7 793 88211 23 7 801 97711 23 7 805 696
To be used as OEM 116310

Provides a perfect seal between cylinder head and valve, improving compression and engine efficiency.

This compression tester for Diesel engines is equipped with a manometer which is able to measure a pressure of 0-70 bar with a tolerance of +/-5%.

Universal use thanks to several adapters for spark plugs and accessories for injector nozzles

It is suitable for the following brands, amongst others: BMW, Mercedes, Ford, VW, Toyota, Renault, Volvo, Mazda, Citroen, Opel, Nissan, Peugeot and Opel

This electronic belt tension tester is a professional instrument for extremely precise tension control and adjustment on all types of rubber timing and auxiliary drive belts used in motor vehicles and machinery (maximum belt width 36 mm).

Tension values can be displayed in various standard and manufacturer-specific units. Tension limit values are user-programmable.

Units: Newtons / Pounds / Kilograms / Seems

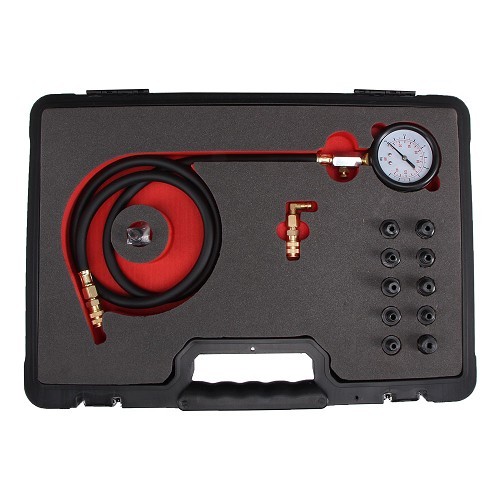

This TOOLATELIER oil pressure tester is used in the automotive industry.

It's ideal for testing oil circuit compression ratios.

Very practical for testing sensors, dashboard gauges and oil pump indicators.

Pressure range: 0-8 bar (0-120 psi).
