Valve timing kit

Ideal for the driving wedging with distribution by chain for certain Fiat, Opel, Ford et Suzuki.
For Fiat 1.3 JTD :

- Punto : 1.3 JTD Multi- Jet 188A9.000 (2003-2007)
- Panda : 1.3 JTD Multi- Jet 169A1.000 & 188A8.000 (2003-2009)
- Idea : 1.3 JTD Multi- Jet 199A3.000 & 188A9.000 (2004-2006)
- Doblo : 1.3 JTD Multi- Jet 188A9.000 (2004-2006)
- Doblo Cargo : 1.3 JTD 188A9.000 (2004-2006)

For Opel 1.3 CDTi :

- Agila : 1.3 CDTi Z13DT (2003-2008)
- Corsa C : 1.3 CDTi Z13DT (2003-2007)
- Combo C : 1.3 CDTi Z13DT (2003-2009)
- Corsa D : 1.3 CDTi Z13DTH & Z13DTJ (2006-2009)
- Astra H : 1.3 CDTi Z13DTH (2004-2009)
- Tigra B : 1.3 CDTi Z13DT (2004-2009)
- Meriva : 1.3 CDTi Z13DT & Z13DTJ (2004-2009)

For Ford 1.3 TDCi :

- KA : 1.3 TDCi

For Suzuki 1.3 CDTi :

- Ignis : 1.3 CDTi Z13DT (2003-2009)
- Wagon : 1.3 CDTi Z13DT (2003-2009)
- Swift : 1.3 CDTi Z13DT (2003-2010)

Nissan K4M (1.6 16V), F4Rt (2.0 16v)
Nissan Kubistar, Primastar 1.6/2.0 engines.

Manufacturer code :
MOT1489
MOT1054
MOT1496

This kit will allow you to set the timing of petrol engines on the following BMW models.

Vehicle types (with chain):

E46: 320i, 323i, 325i, 328i, 330i
E39: 520i, 523i, 525i, 528i, 530i
E38: 728i
E65: 730i
X3 E83: 3.0i
X5 E53: 3.0i
Z3: 2.0i, 2.2i, 2.8i, 3.0i
Z4: 2.5i, 3.0i

Engine codes:

M50: B20, B25
M50TU: B20, B25,

M52: B20, B25, B28
M52TU: B20, B25, B28,

M54: B22, B25, B30,

M56

Contents of the kit:

Camshaft timing tool: OEM 11 6 150
Locking block Cylinder 1-4 : OEM 11 2 445 or OEM 11 2 441
Locking block Cylinder 5-8: OEM 11 2 442 and OEM 11 2 446
Chain tensioner: OEM 11 4 220
Chain tensioner: OEM 11 4 230
crankshaft lock: OEM 11 2 300

This TOOLATELIER tool set is designed for the timing of 2.3L JTD engines.

Engine timing tool kit for vehicles from the VAG group.

Suitable for

- Engines: 1.8 / 2.0L FSi / TFSi (EA888)
- Engine codes: BYT, BZB, CABA, CABB, CABD, CADA, CAEA, CAEB, CAWA, CAWB, CBFA, CCTA, CCZA,CCZB, CCZC, CCZD, CDAA, CDAB, CDHA, CDHB, CDNB, CDNC, CDND, CESA, CETA, CFKA, CFPA, CGYA, CHHA, CHHB, CJBA, CJEB, CJKA, CJKB, CJSA, CJSB, CNCD, CPLA, CPSA.

Examples of vehicles: Audi A4 from 2008 and A6 from 2012...

Contents:

- Crankshaft support part => OEM T10368
- Crankshaft support part => OEM T10354
- Camshaft timing bolt => OEM T40196
- Timig clips (2x) for chain tensioner => OEM T40267
-Timing tools (2x) for the chain pulley => OEM T40271, T20208
- Tool for camshaft valve => OEM T10352
- Tool for camshaft valve => OEM T10352/1
- Tool for camshaft valve => OEM T10352/2
- Tensioner locking pin =>OEM T10060A
- Tensioner locking pin (x2) => OEM T40011
- Oil pump locking pin => OEM T40265

Set of tools for engine timing, Opel and Renault, engines 2.2 and 2.5 TDCi and DCi.

Models:

Renault: Laguna II, Espace, Master, Trafic with Diesel 2.2 and 2.5 DCi engines

Opel : Vivaro, Movano with Diesel 2.2 and 2.5 DTi engines / Astra B, Vectra B, Signum, Zafira with 2.2 16V petrol engines

This set of engine timing tools is for models from the VAG group equipped with1.2 and 1.4L TSI and 1.4L TSI ACT engines.

Models:
Audi: A1 (2012-2015), A1 Sportback (2012-2015), A3 (2013-2016), A3 Sportback (2012-2016)
Seat: Alhambra (2015-2017), Ibiza (2012-2017), Leon (2012-2017), Toledo (2012-2017)
Skoda: Fabia (2010-2013), Fabia III (2014-2017), Octavia II (2010-2013), Octavia III (2010-2015), Rapid (2015-2017), Rapid Spacecback (2015-2017), Yeti (2015-2017), Yeti Outdoor (2015-2017)
Volkswagen: Golf VII (2008-2017), Golf VII break (2008-2017), Golf Sportsvan (2014-2015), Jetta (2012-2017), Polo (2012-2017)10-13), Octavia II (10-13), Octavia III (10-15)

Engine codes:
1.2 TSi: CJZA, CJZB
1.4 TSi: CGGA, CHPA, CMBA, CPVA, CRJA, CXSA
1.4 TSi ACT: CPTA

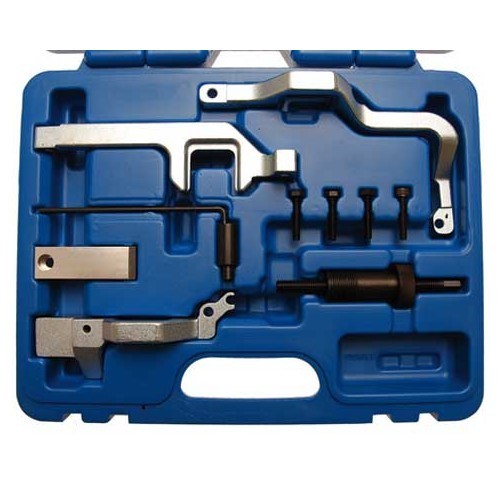

- is needed for replacing the cylinder head
sealing and motor timing
- suitable for the following Mini models:
One, HB Cooper, Cooper, series R55-56
with motor code N12
- crankshaft locking tool use as OEM 119590
- camshaft locking tool use as OEM 119540
- chain tensioner use as OEM 119340
- also suitable for:
Citroën C4 (08-09), C4 Picasso (08-09)
Peugeot 207 (06-09), 207CC (07-09), 308 (01-09)
with engine:
1,4 VTi (Valvetronic), EP3 (8FS) (Valvetronic)
EP6 (5FW), 1.6THP (Direct Injection), EP6DT (5FX)
EP6DTS(5FY)

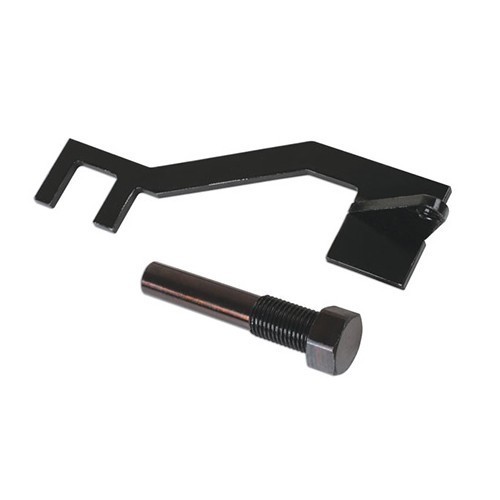

This tool is used to lock and set the crankshaft, when replacing the cylinder head gasket, etc.

Intended for TDI common rail engines from the following EA288 series:

1.4 TDI Audi A1
1.4 TDI Seat Ibiza, Toledo IV
1.4 TDI Skoda Fabia III, Rapid (2012)
1.4 TDIVW Polo V
1.6 TDI Audi A1, A3 8V, A4 B9, Q2
1.6 TDI Seat Leon III, Toledo IV, Ateca
1.6 TDI Skoda, Octavia III, Rapid (2012), Superb III, Karoq
1.6 TDI VW Beetle, Golf VII, Jetta VI, Tiguan, TouranII, T-Roc, Passat B8, CC, Scirocco III
2.0 TDI Audi A3 8V, A4 B9, Q2
2.0 TDI Seat Leon III, Ateca, Alhambra II
2.0 TDI Skoda Octavia III, Superb III, Kodiaq, Karoq
2.0 TDI VW Beetle, Golf VII, Jetta VI, Tiguan, Tiguan II, Touran II, T-Roc, Sharan II, Passat B8, CC, Scirocco III, Arteon, T6, Caddy, Crafter, Amarok

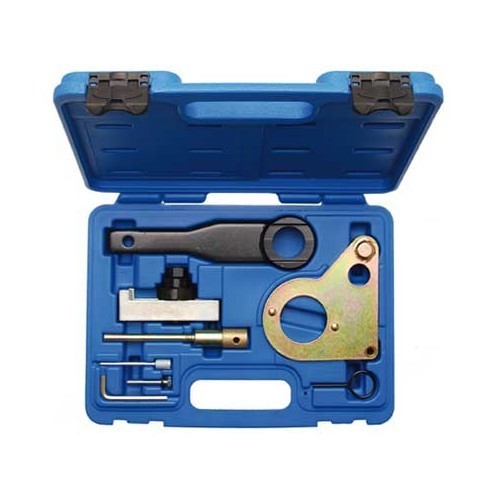

- includes important tools for adjusting the engine timing
- suitable for following models:
- Nissan: Primaster (08-09), Qashqai (08-09),
X-Trail (07-08) with engine codes:
M9R 780, 830, 832, 833
- Renault: Koleos (08-09), Laguna (05-08),
Mengane (07-08), Scenic (08-09)
Trafic (07-08), Vel Satis (08-09)
engine codes: M9R 700, 721, 724, 740, 742,
446, 760, 761, 780, 802, 803, 805, 830, 832, 833
- Vauxhall/Opel: Vivaro (07-08)
engines codes: M9R 780, 782, 784

- includes important tools for adjusting the engine timing
- suitable for following models:
- Nissan: Primaster (08-09), Qashqai (08-09),
X-Trail (07-08) with engine codes:
M9R 780,830, 832, 833
- Renault: Koleos (08-09), Laguna (05-08),
Mengane (07-08), Scenic (08-09)
Trafic (07-08), Vel Satis (08-09)
engine codes: M9R 700, 721, 724, 740, 742,
446, 760, 761, 780, 802, 803, 805, 830, 832, 833
- Vauxhall/Opel: Vivaro (07-08)
engine codes: M9R 780, 782, 784

This timing tool is for Audi V8 4.0 TFSi petrol engines. This engine can be found on the Audi A8, RS6, RS7, S6, S7 aand S8 models.

The engine codes are CEUA, CEUC, CGTA, CRDB, CTFA, CTGA, CTGE, CWUB, CWUC, DDTA.

The tool reference TB046679 is additional to lock the crankshaft rotation on a Audi V6/V8.

This set of engine timing tools for Land Rover TDV8 4.4L is equivalent to the tools OEM JLR 303-1620, 303-1568, 303-1243, 3031571.

Applications include the Range Rover from 2010 and the Range Rover Sport from 2014.

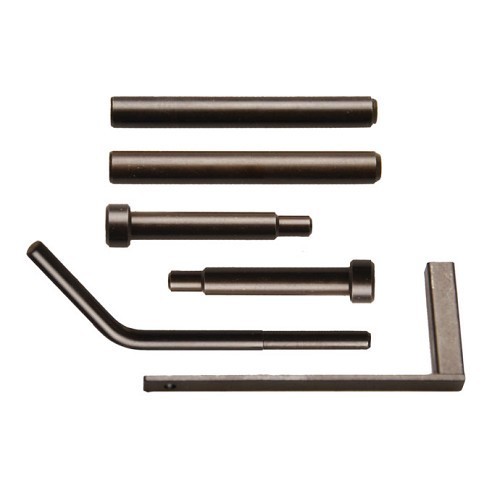

This set of tools is ideal for adjusting the valve train of PSA and Fiat vehicles.

The appropriate engine codes are LFW, RFU, RGX and RFW.

Composition:

6 mm crankshaft timing pin
Camshaft timing pin 10 mm
Camshaft locking pins
Timing belt tensioning tool

OEM part numbers are 0132Q, 0132QZ, 0132Z, 0132R, 1053AA, 1053AB, 1053ZY, 0153G, 4507TA, 4507TB, 5711TA, 7014TN, 9767.27, 7014TM, 0132X, 0132X1Z, 4507T, 4507TJ, 1860755000, 1860161000, KM955

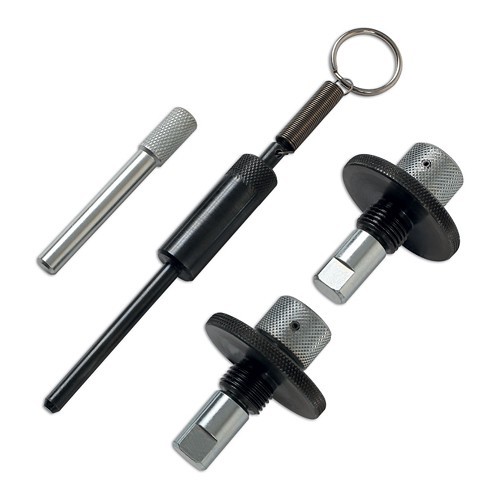

This tool is used to align the camshaft and crankshaft during the distribution of the 1.3 HDi and JTD engines of the PSA group.

Applications:

Citroën :
- Model : Nemo 2010 - 2015
- Engine : 1.3 HDi
- Engine code: FHZ(F13DTE5)

Fiat:
- Models:
Doblo/ Cargo 2004 - 2006
Idea 2004 - 2006
Panda 2003 - 2009
Punto 2003 - 2007
- Engines: 1.3 MultiJet/ JTD
- Engine codes: 169A1.000 / 188A8.000 / 188A9.000 / 199A3.000

Ford:
- Models: KA 2008 - 2015
- Engines: 1.3 TDCi
- Engine codes: 167A1.000 (FD4) BAAA/B

Peugeot :
- Models : Bipper 2010 - 2015
- Engines : 1.3 HDi
- Engine code : F13DTE5 (FHZ)

Suzuki :
- Models :
Ingis 2003 - 2009
Wagon 2003 - 2009
Swift 2003 - 2010
- Engines :1.3 DDiS
- Engine code: Z13DT

Opel/Vauxhall:
- Models:
Agila 2003 - 2008
Corsa-C 2003 - 2007
Corsa-D 2006 - 2009
Combo-C 2003 - 2009
Astra-H 2004 - 2009
Tigra-B 2004 - 2009
Meriva 2004 - 2009
- Engines: 1.3 CDTi
- Engine codes: Z13DT / Z13DTH / Z13DTJ

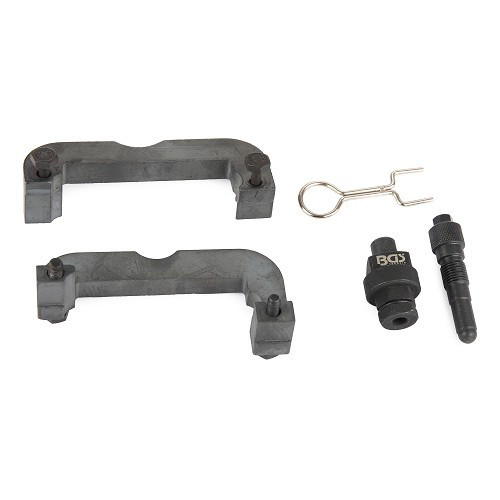

Designed for setting the engine timing when replacing the cylinder head gasket, camshaft, etc.

Applications: for Audi A6 & Q5

Contents:

- 2 camshaft locking tools, ref.: OEM T40133
- 1 crankshaft locking pin, ref.: OEM T40069
- 1 timing chain tensioner locking tool, ref.: OEM T40071
- 1 crankshaft rotation tool, ref.: OEM T40058

Ideal for aligning the camshaft and crankshaft on Ford models 1.25/1.4/1.6 L 16 valves with variable valve timing (VVT) from 1996 to 2010.

Engine specifications: 1.25/1.4/1.6 L 16 valves

Ideal for aligning the camshaft and crankshaft on Volvo models 1.25/1.4/1.6 L 16 valves with variable valve timing (VVT) from 1996 to 2010.

Engine specifications: 1.25/1.4/1.6 L 16 valves

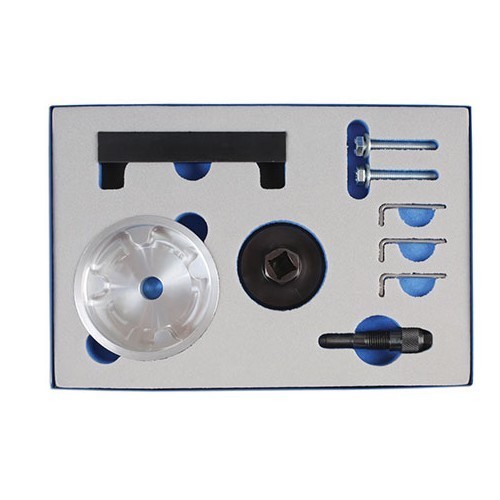

Engine specification : 2.5 TFSi 5 cylinders

Applications:
- Audi RS Q3 from 2013 to 2015
- RS3 from 2010 to 2016
- TT from 2009 to 2014

Engine codes: CZGA, CZGB, CEPA, CEPB, CTSA

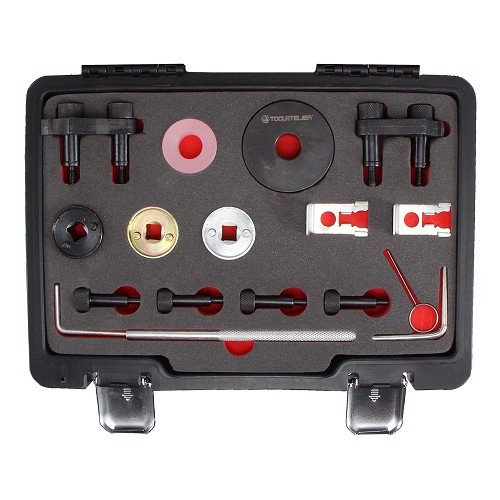

This set of TOOLATELIER timing tools is designed for Mercedes camshaft synchronization.

For models M276, M157, M278.

Applications :

- CL 500/63 AMG (216 C) - 2010->2013
- S 500/63 AMG (C 217) - from 2014
- CLS 300 (C 218) - from 2012
- E 300/350/400 (C /A 207) - from 2011
- CLS 350/400/500/63 AMG (C / X 218) - 2011->2014
- SLK 350 (R 172) from 2011
- SL 350/400/500/63 AMG (R 231) from 2012
- S 500 Plug-in Hybrid (V 222) from 2014
- 300 ml / 350/500/63 AMG (166 W) from 2011
- C 400 (W 205) from 2014
- E 400 HYBRID (W 212) from 2012
- G 63 AMG (463 W) from 2012
- E 300/350/400/500/63 AMG (W / S 212) from 2011
- C 350 (W / S / C 204) from 2011
- S 350/500/63 AMG (W / V 221) from 2010
- S 400/63 AMG (W / V 222) from 2013
- RX 350 BlueEfficiency (W / V 251) from 2012
- GL 450/500 (X 166) from 2012
- GLK 350 (X 204) from 2011
