Ball-and-socket joint

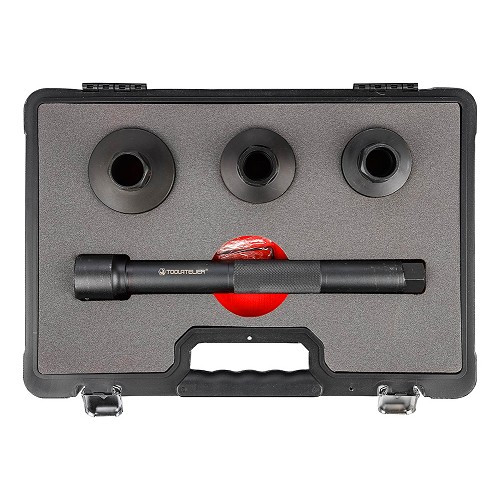

This TOOLATELIER extractor is ideal for unblocking axial ball joints , also known as steering tie-rods , at the end of rack-and-pinion joints.
How does this tool work?
The principle is simple: the rollers grip the axle to allow it to rotate, and that's it.To be used with a 27" hexagonal key or 1/2" square spanner.
What sizes are available?It covers connecting rod head sizes from 30 to 45 mm.
Sizes of the 3 interchangeable heads:1st: 30 to 35 mm2nd: 35 to 40 mm3rd: 40 to 45 mm

This TOOLATELIER ball joint extractor , also known as a ball joint remover , is used to remove steering and suspension ball joints.

Effort fork designed for effortless removal.

Not suitable for Transporter T4 suspension ball joints (ball joints too large).

Length: 100 mm
Internal spout opening: 19 mm
External spout opening: 55 mm

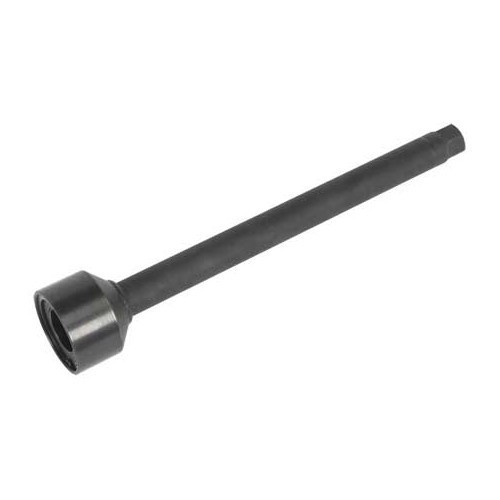

This TOOLATELIER steering tie rod remover, also known as axial ball joint extractor , is ideal for removing or installing internal steering tie rods with shafts from 37 to 45 mm.

Very practical, it is used to unlock and lock the axial ball joints at the end of the steering rack.
The principle is simple: the rollers grip the tie-rod axle, which is made up of flats that are not easily accessible. It automatically adjusts at the head to loosen tie-rods with diameters ranging from 37 to 45 mm.

It is used with a 27" hexagonal wrench or a 1/2" square wrench.
It has a rod length of 32 cm, open at both ends, and an external diameter of 89 mm.

- for fast and professional changing of the axial
joints of cars and light commercial vehicles
- automatic clamping of the joint heads
-easy assembly of long tie rods because
of open construction
- saves up to 3 hours of working time
- for joint heads Ø 28 - 35 mm
- works with 1/2" ratchets or 27 mm sockets
- length: 400 mm

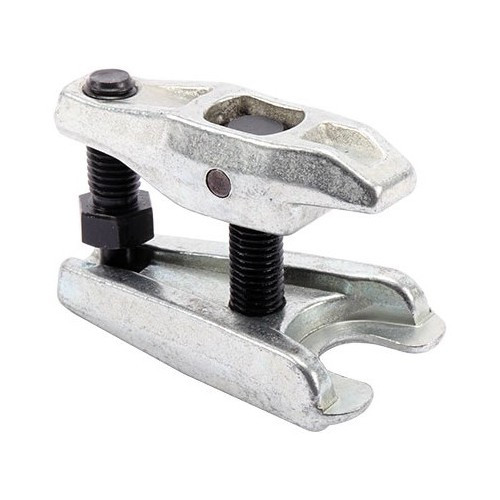

Lets remove the conical steering ball joints
For suspension ball joints, larger, see the big model,
reference TA00017.

Black or gray depending on arrivals.

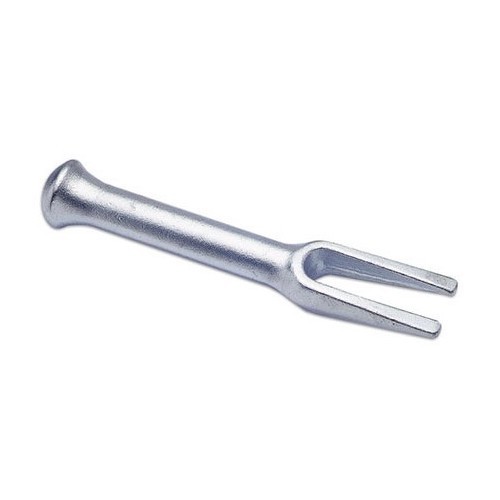

For separating ball joints this tool uses the forked, leverage method.
Fork Dimensions: Internal 14.1mm>11.4mm, External 37.4mm
Manufactured to Ansi/DIN standards.
Long version available.
Long version available.
Secure jaws, short shaft

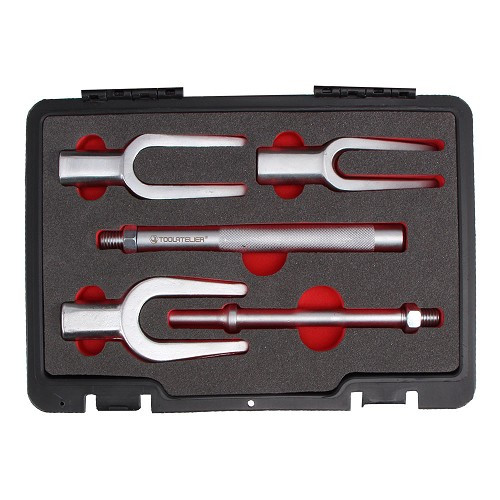

Interchangeable forks for the removal of ball joints, connecting rods and steering levers.

Fork opening: approx: 17.4 / 23.8 / 28.5 mm
Material: forged steel

Adapter for manual operation and with a pneumatic hammer (10 mm rod)

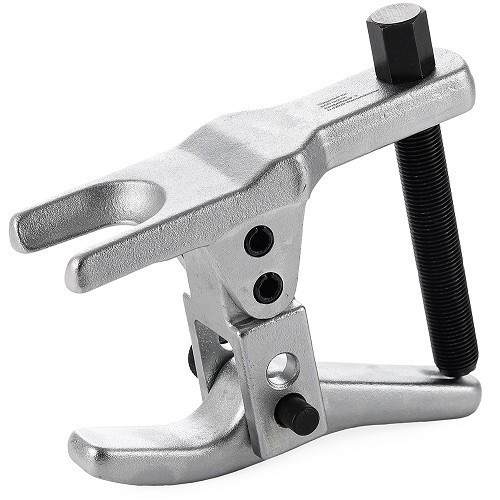

This ball joint separator can be adjusted to 2 heights. The minimum span is 50 mm and the maximum is 80 mm. The fork width is 21 mm.

It matches the ball joints on passenger cars and commercial vehicles.

You pull the joint out using a 17 mm socket or spanner.

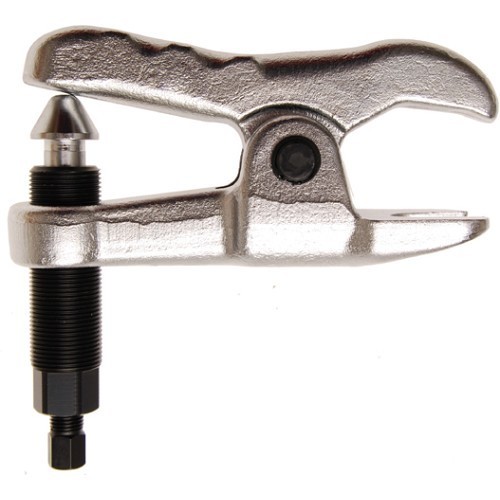

This tool has a robust design and is ideal for removing steering and suspension heads.

Great strength is achieved through increasing the leverage effect. Maximum power with minimum effort.

The width of the fork is 23 mm with a maximum span of 56 mm.
Its weight is 1890 g.

Sizes:

- Fork opening: 20mm
- Width: 32mm max.
- Length: 270mm

Ideal for working on trucks

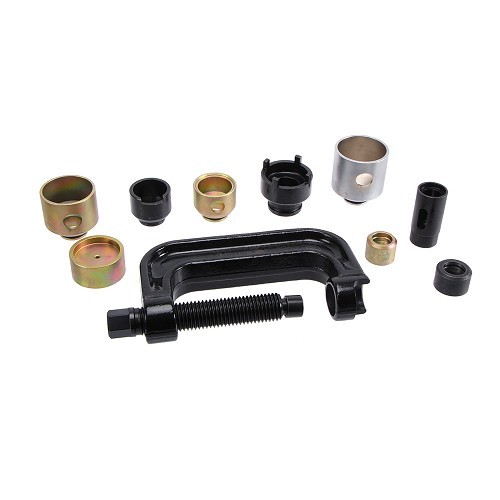

This set of pullers comprises 10 pieces for the installation and removal of lower ball joints from Mercedes models.

Applications:

W163:1998 - 2005 => M Class
W164: 2006< => M Class
W211: 2003 - 2009 =>E Class
W215: 2002 - 2006 => CL Class
W220: 2000 - 2006 => S Class
W219: 2006< => CLS Class
R230: 2003 - 2008 => SL Class

Contents:

C-Clamp press
Attachments for front suspension ball joint press for chassis W220 / W211 / W230 / W215 / W219
- Adapter for W220 / W211 / W219
- Attachment for the front and rear ball joint press for W163 / W164
4 pin ball joint socket 3/4" for W163 / W164

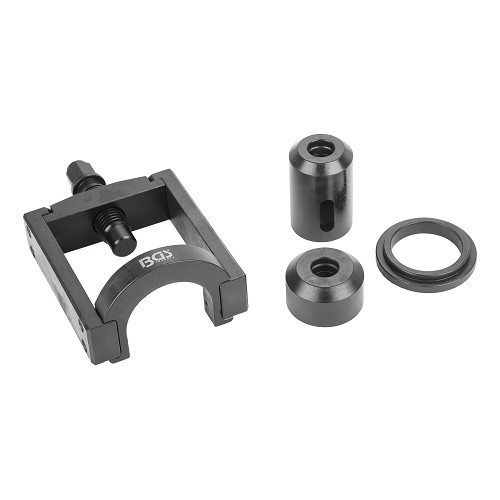

This kit will allow you to easily replace the lower ball joints on the suspension arm on Mercedes-Benz W124 / W129 / W201 models.

It includes a press frame, a support part for removal and fitting, and a counter locking reducing ring.

The threaded rod has a 6 point drive, 24 mm.

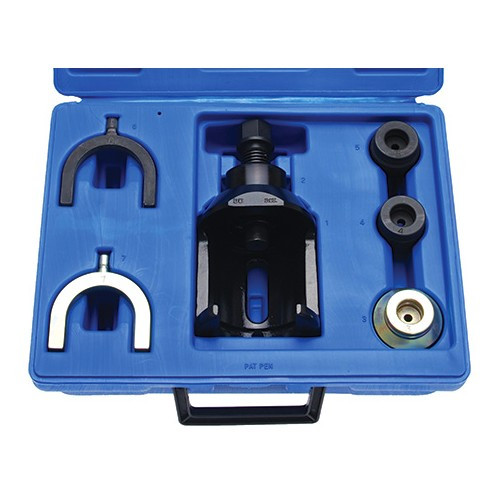

Suitable for the front upper suspension ball joint of the Volkswagen T4

Contents:
- 1 tempered puller with 24 mm hexagonal drive square
- 3 different pressure plates
- 2 locking forks

Professional case
