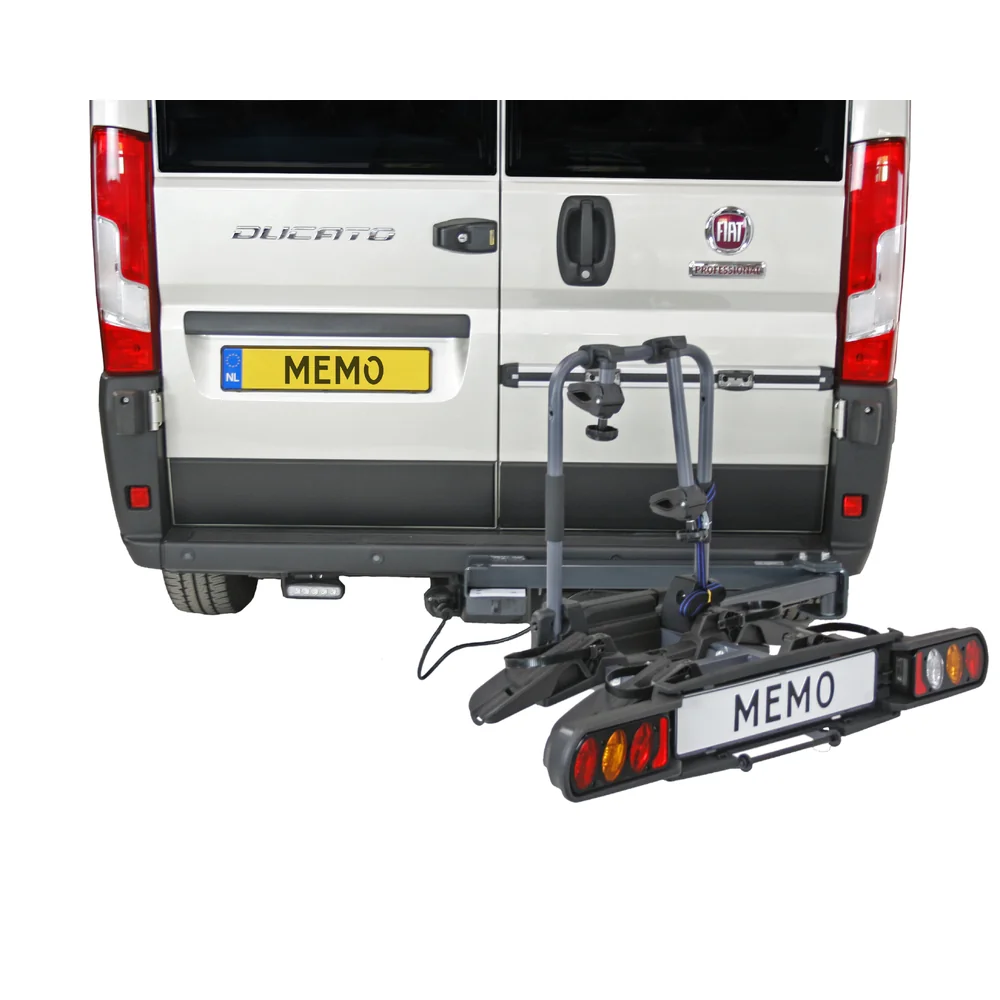

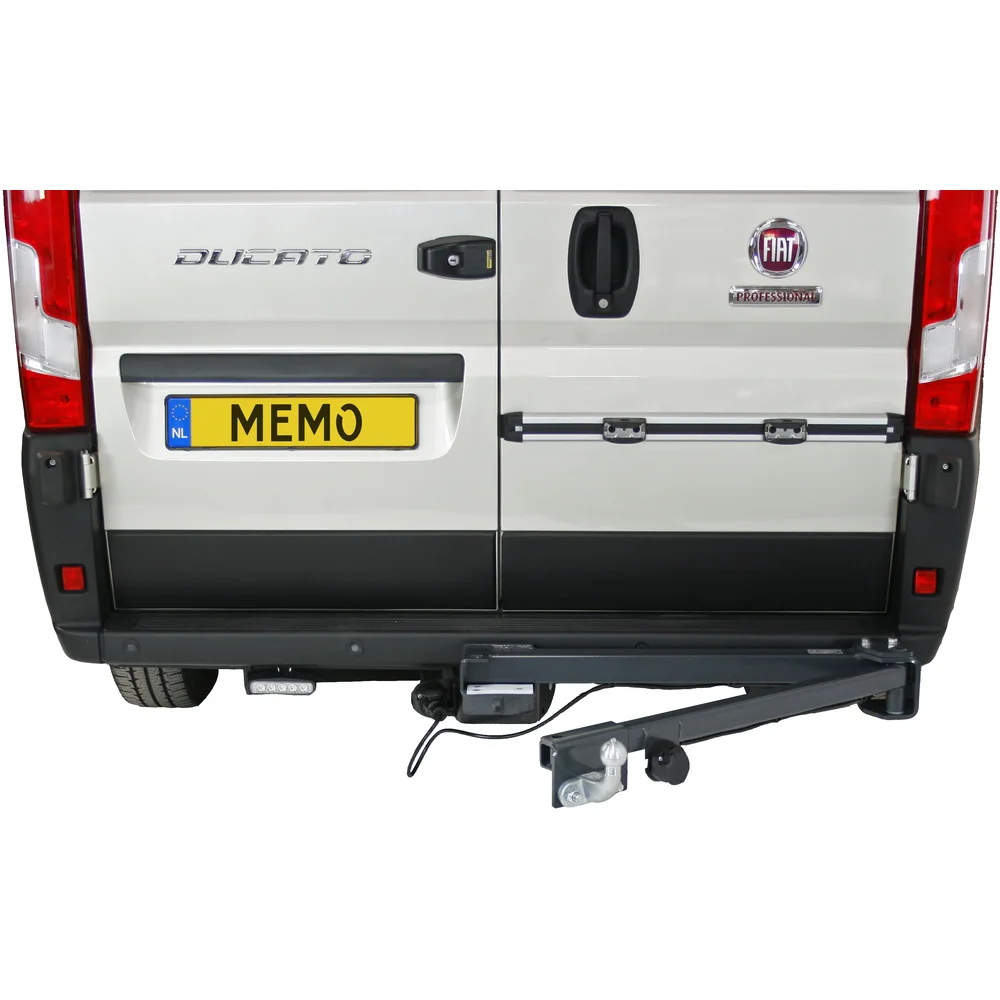

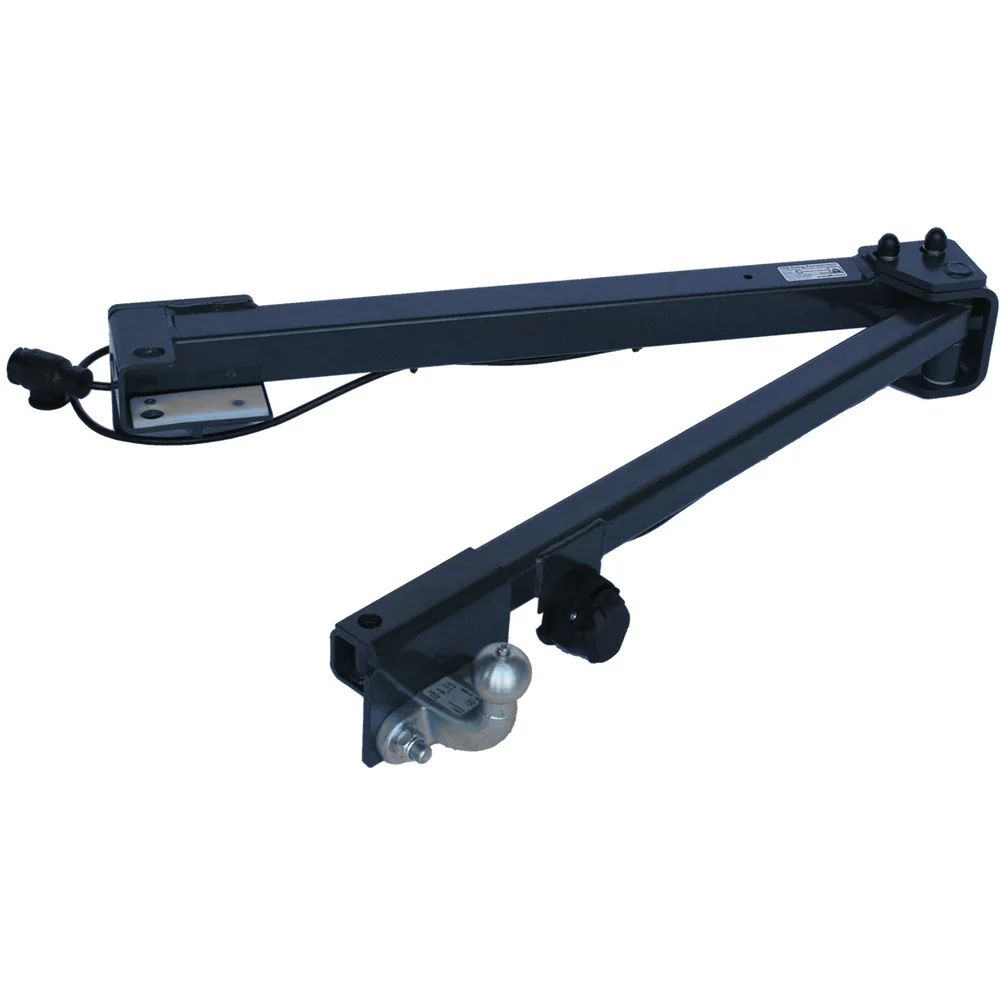

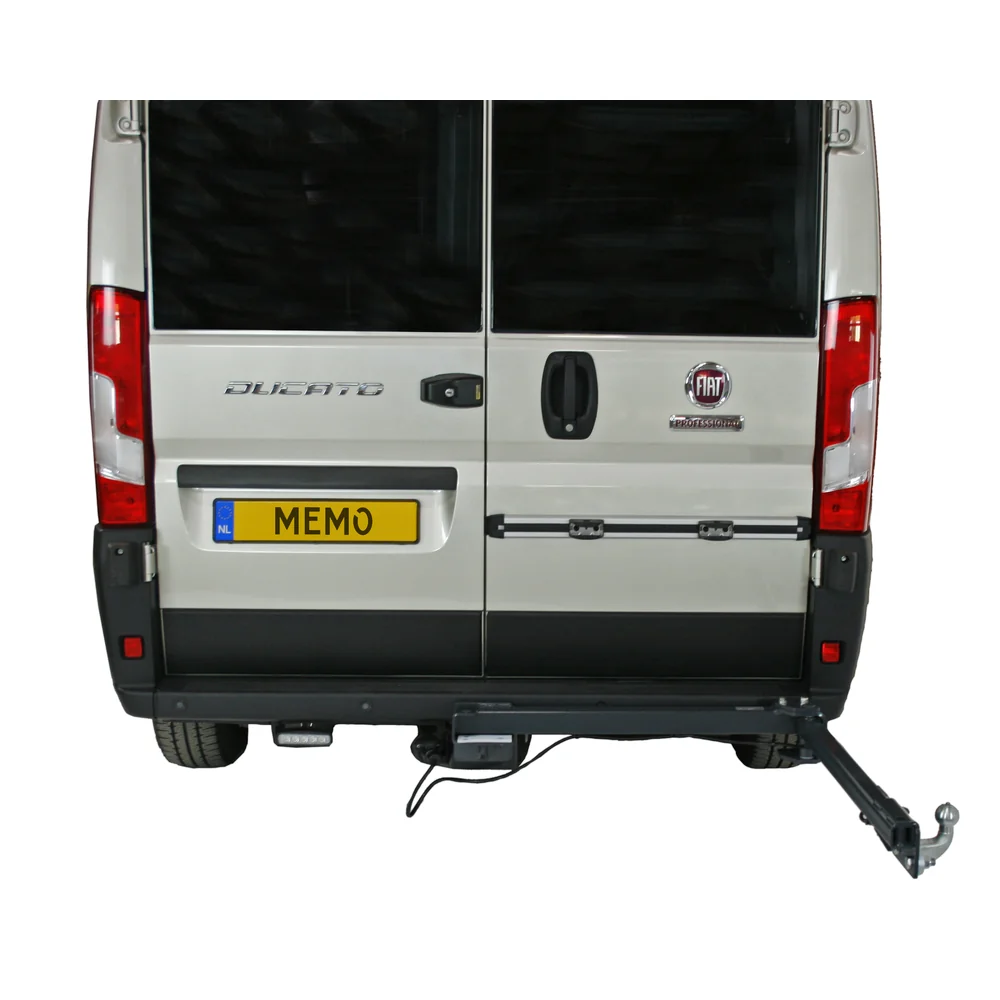

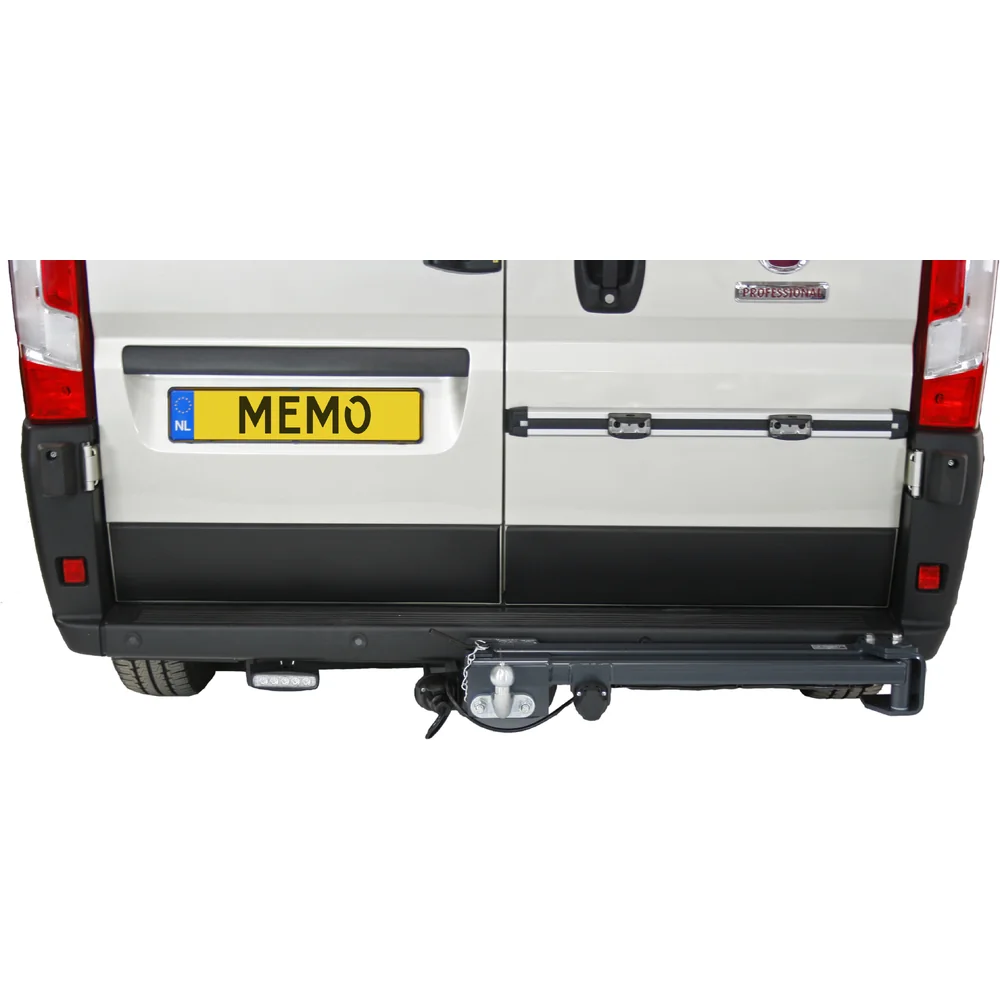

Swing module VAN SWING for Fiat DUCATO after 06/2006 (Lengths L1 - L3) - 2 bikes - standard ball mounting

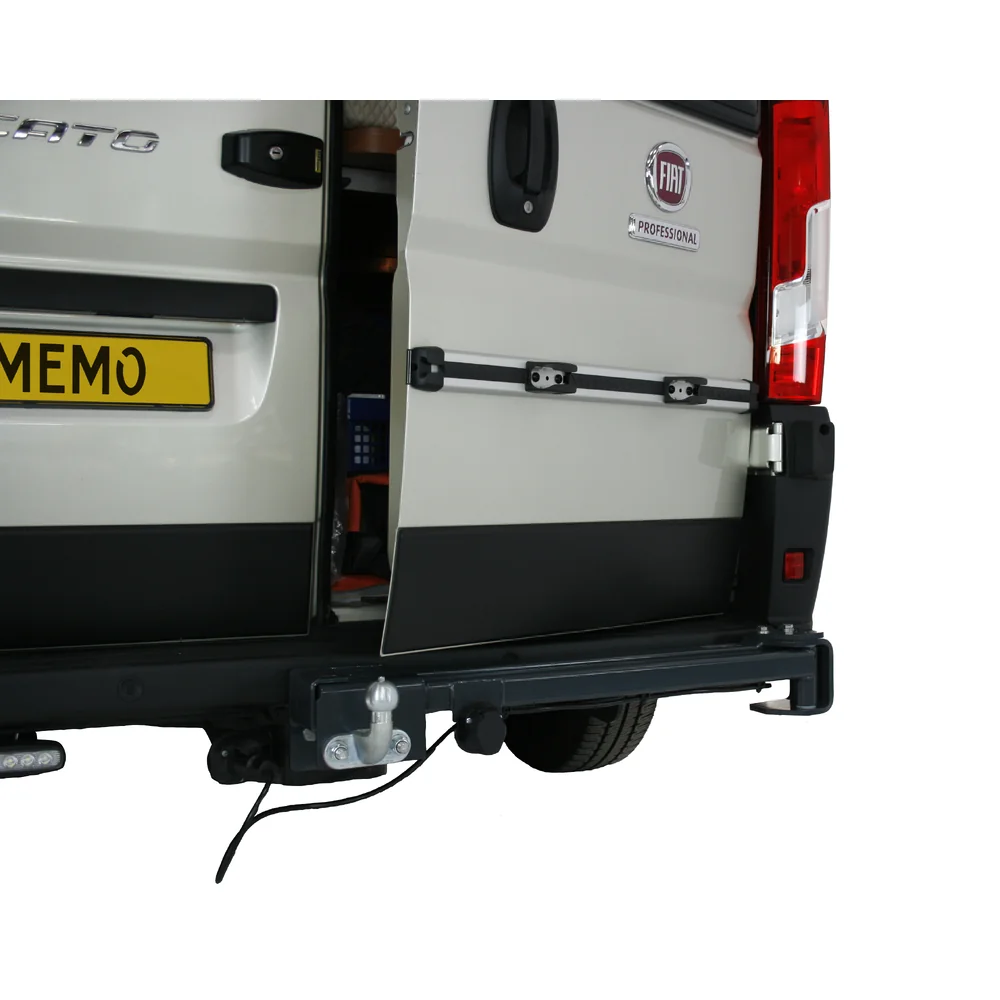

The VAN SWING swivel module is specifically designed for Fiat Ducato (X250),Peugeot Boxer and Citroën Jumper, marketed from June 2006 (with a length of less than 6 m (L1 - L3)) AND equipped with a "standard"type towball (see photo). It fits all models and sizes of vehicles with double rear doors.
It is not suitable for any other type of ball joint (gooseneck, Ball joint removable without tools,...). Only the so-called "standard" ball joint is compatible with this bike carrier.
Practical, the module pivots on the ball. No more need to disassemble the bikes, to open the rear doors of the vehicle, all without effort.
The mounting is done on chassis and not on the tailgates and rear doors of vehicles.

The advantages of this module:
- The load capacity is 60Kg (including bikes and bike carrier)
- Manipulable: it swivels su)r the right side (hinges mounted on the right side), giving easy access to the rear doors.

Technical specifications:
- Model: VAN SWING.
- Max payload: 60Kg
- Composition: powder coated galvanized steel support arm with aluminum components.
- Angle of rotation: 90° (with bikes), 110° (without bike).
- Depths (folded): 20 cm.
- Width: 93 cm.
Bike carriers on hitch not included (available as an option) Towing with the VAN SWING is prohibited. The assembly must be done by a qualified professional.
