Gearbox linkage for Volkswagen Transporter T4

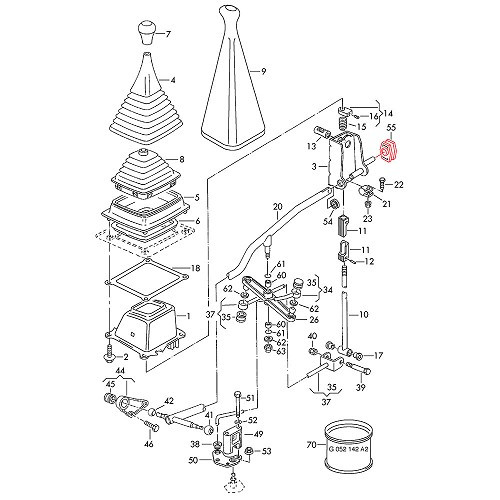

What the linkage actually controls

Between the gear knob and the gearbox, the movement passes through a series of components, each of which can develop play. Understanding them in the correct order prevents you from replacing the wrong one.

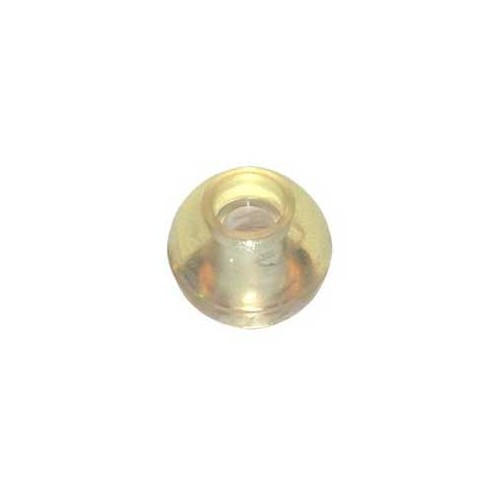

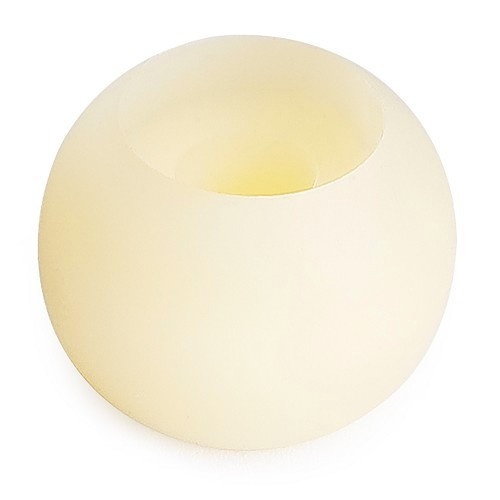

• The gear lever bearing, under the floor, supports the gear lever’s ball joint. If worn, it allows the gear knob to move in all directions even though the gearbox is in good working order.

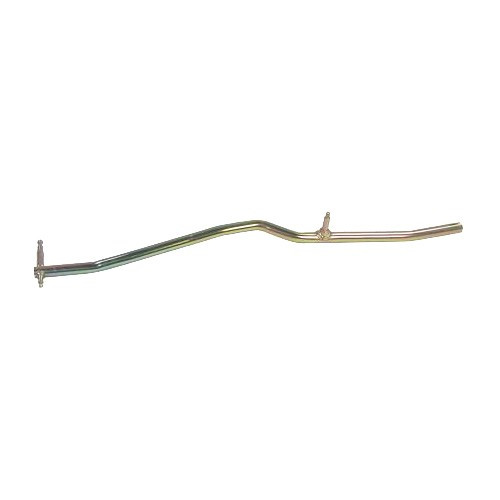

• The shift rod or selector rod transmits the movement towards the rear. It rarely becomes deformed, but its ends can become oval-shaped.

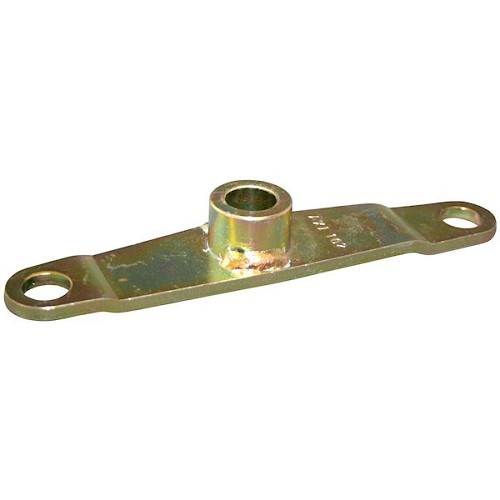

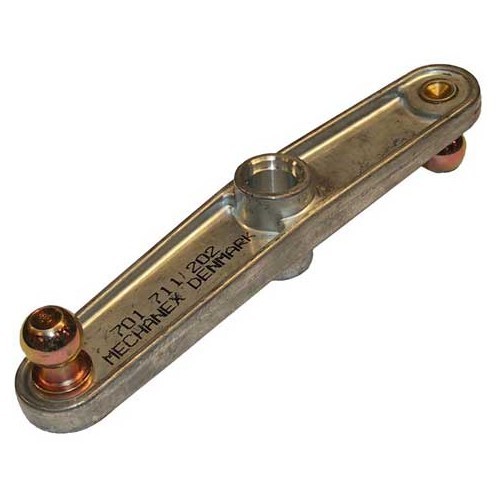

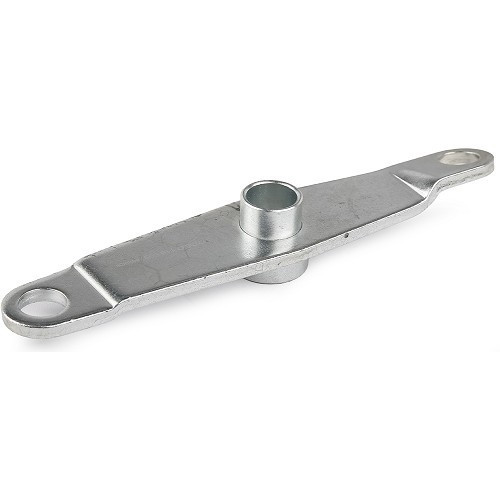

• The link rod and its pin convert the movement at the gearbox inlet. This is the part under the greatest strain in the system.

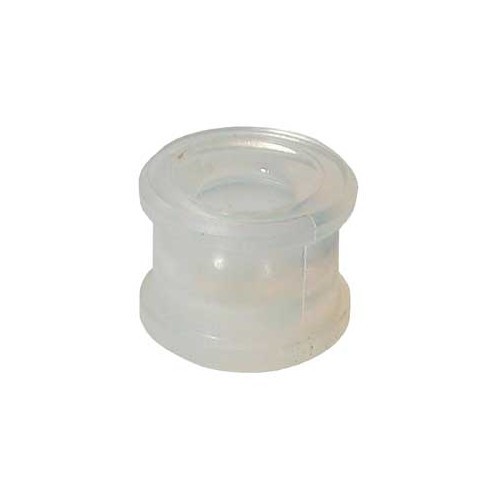

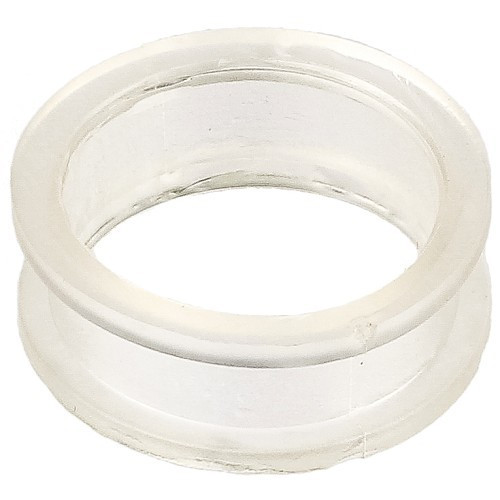

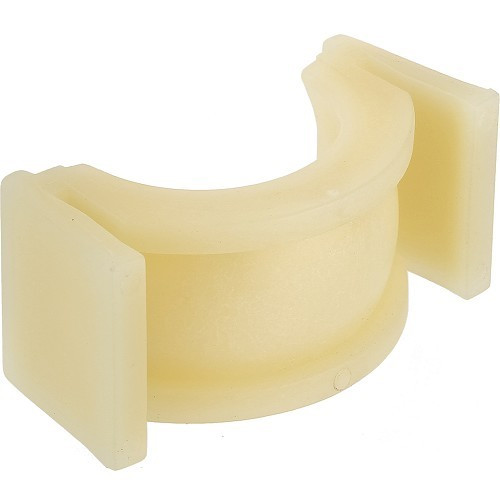

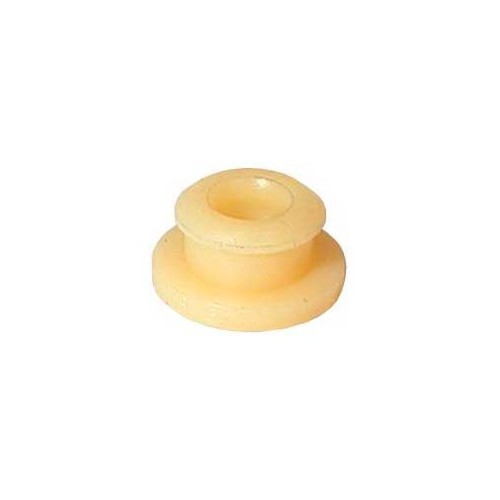

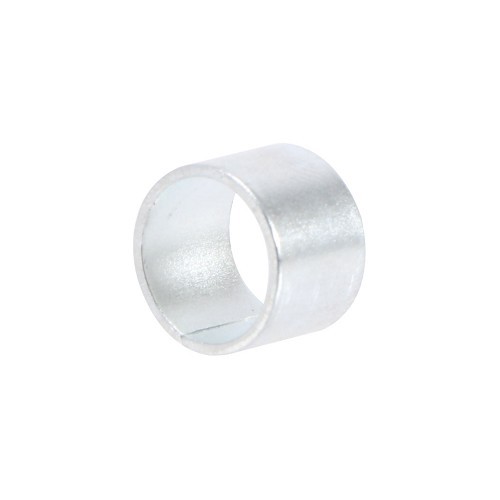

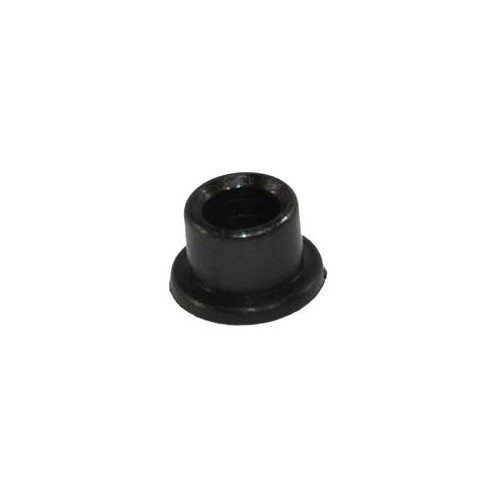

• The bushings and couplers compensate for misalignment and absorb vibrations. These are the first parts to wear out, and they are sold separately.

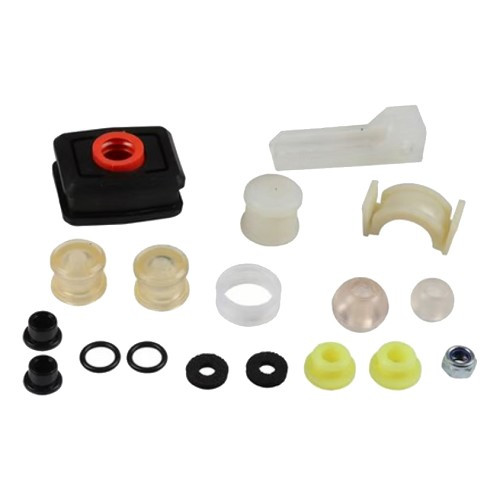

• The refurbishment kit contains all the wear parts for a linkage. It is the safest option when you are unsure which part is at fault.

How to spot a worn linkage

• The lever has play at neutral, in all directions, with the engine switched off: lever bearing or guide bushings.
• Gears engage but the lever does not return to centre: worn return spring or coupler.
• One gear becomes difficult to engage – often first gear or reverse – whilst the others engage fine: misalignment, meaning the linkage is at fault, not the gearbox.
• A sharp click when releasing the clutch: the control silent block is faulty.
• The gear knob vibrates at a steady engine speed: the clutch release bearing has seized up and is no longer damping the movement.

A simple test: with the engine off, move the lever and see if the movement is transmitted to the gearbox. If it is lost along the way, the fault lies in the linkage.

Repair the linkage rather than suspecting the gearbox

Imprecise gear changes can make you fear the worst. In reality, on a vehicle with high mileage or one that has been left stationary for a long time, the control system is to blame far more often than the gearbox itself. The wear parts are made of rubber or engineering plastic: they harden, crack and develop play, whilst the gears themselves remain fixed.

Refurbishing a linkage involves a few parts and a morning’s work under the car. The result is immediate and dramatic in terms of the precision of the gear lever. It’s the job that delivers the most satisfaction for the least effort on an older gearbox, and it should be done before considering opening up the gearbox.

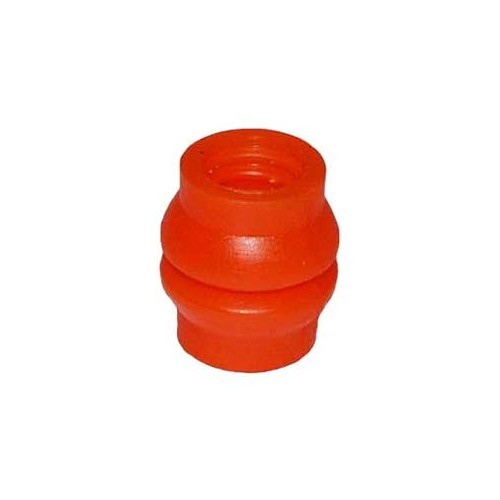

Urethane or rubber: what difference does the material make?

Flexible linkage parts come in two types. Rubber, true to the original, dampens vibrations and maintains comfortable gear changes: this is the choice for a faithful restoration.Urethane, which is harder, eliminates almost all play and makes the gear lever respond crisply, at the cost of slightly more vibrations being transmitted to the gear knob.

The latter is justified on a vehicle used for sport or on a set-up with a long control reach, whilst the former is for a car that you wish to restore to its original condition. It is not a question of quality, but of intended use.

Search for the part by its name rather than its function

Many searches focus on the function – such as ‘gearbox linkage’ – whilst the actual repair involves replacing parts one by one. If you already know which part has play, search directly for the link rod, guide bushing or bearing: you’ll find the exact part rather than an entire family of parts.

If the fault hasn’t been diagnosed, a refurbishment kit remains the most cost-effective option, as it avoids having to dismantle the system twice to replace the part adjacent to the one you’d identified.
