Water connection and tank

This HEOS filler cap for motorhome, caravan and van tanks, WITH or WITHOUT overflow valve. It allows direct connection of hoses via the universal 1/2" Gardena coupling. It ensures fast, hygienic filling, without spillage or splashing, and in a minimum of time.
Suitable for all types of water tank. Channels in the lid facilitate aeration during water supply.
It does not have an auto-block feature when the tank is full.
Supplied with reduction ring for hose diam. 67 mm (Dethleffs / LMC from 2010, ...) and flat gasket for tank with overflow.

Ref Heos 5138

For connection to drain trap with ZADI Type B valve.
Comes with gasket.
Diameter: 75 mm.

Bayonet cap, for fuel filler cup with vent (type STS Oberholz).
Version with 2 arms, comes without barrel (type ZADI).
Type of assembly: Concorde, Bûrstner, Hymer, Niesmann+Bischoff (2000-2006).
Overall dimension (mm): Ø 77.5 x 52.
Outside diameter 75 and inside 65 mm.
Black colour.

Use this hose to drain the waste water from your motorhome. Made from hard-wearing vinyl, it can be retracted up to 35 cm for easy storage. For draining waste water from motorhomes, vans and caravans.
Strong, flexible hose.
Extendable: from 35 cm to 230 cm.
Internal hose diameter: 68 mm.
Connection diameter (not supplied): 3" (75 mm).

Blue PE rigid pipe Ø 12 mm complies with ACS, WRAS and DVGW standards. It is recommended for installation of cold water circuits in recreational vehicles (motorhomes, caravans and vans, boats). Suitable for all types of instant fittings.
Diameter (mm): 9/12.
Blue color .
Sold per meter.

Female cap for John Guest push-in tube.
Ø 12 mm
Operating pressure: 10 bar (cold water 20°C), 7 bar (hot water).

Special price offer limited to 1 unit.

Black elbow screw connector with 1/2' - 12 mm thread.
1/2" (15x21) thread.
Teat (mm): ø 12.
Sold individually.

Drain your dirty water tanks with this practical COMET drain valve. Supplied with its fixing nut, it features a 3/4" threaded inlet and a 10 mm diameter outlet, to accept a 10/12 mm diameter hose.
Without drain system.
Color: white/red.

Ref COMET 8922.13.01

FIAMMA's A20 expansion vessel regulates water flow in motorhomes and caravans.
The internal diaphragm reduces jolts, smoothing the flow.
Extends pump and heater life.
Universal, it adapts to all types of pumps.
Connection to 10 - 12 mm diameter pipe.
Max. pressure: 0.9 bar.
Dimensions: 100 x 98 x 234 mm.
Weight: 0.3 Kg.

Fiamma Ref : 02478-02-

This replacement cartridge is specific to the AQUATEC FIE-100 WM inline filter. Don't wait until the cartridge is saturated with dirt before replacing it. A saturated cartridge slows down pressure and releases impurities into the sanitary system of your motorhome, caravan, camper van or boat. Elements suspended in the water, such as cast iron and minerals (mud, microstones, etc.) are retained by the filter, whose filtration capacity at 0.1µm (0.0111 mm) is excellent.

Technical specifications:
- Bacteriological retention : > 99.9999%.
- Filtration fineness: 0.1µm absolute (0.0001mm).
- Capacity: approx. 2000 to 5000 liters*.
- Water pressure: max. 6.3 bar.
- Flow rate: approx. 7 litres/min at 3 bar.

* depending on water hardness (°TH).

The elbow fitting with 12 mm nipple is a component of the Fiamma A20 expansion vessel.
Part N° on the picture.

Fiamma Ref : 98657-001.

Straight connector for water.
Clean water circuit.
Teat :Ø 12 mm.
Sold individually.

Hot & cold water external tray.
For motorhomes and caravans.
For outdoor supply of cold and hot water.
Ideal for an outdoor shower.
Included:
Quick coupling for shower connection is included.
- With switch and mixer.
- 2 brass nipples on the back for 10/12mm water connector
Built-in dimensions: 157x65 mm.
Depth: 90 mm.
External thickness: 30 mm.

REICH:  725500

Compatible with CW10501 hand shower.

The ELEGANT COMET 10l minute pump, is designed to beimmersedin ajerrycanora > tank (maximum opening 3.8 cm). Its use is multiple: supply of a shower, under a camping furniture sink,filling of buckets of water, ...  . It will find its use in motorhomes, caravans and converted vans. .It protects against dry running(max. 30 minutes).
Water temperature: max. 60°C.
Delivered with 1 m of cable.< br>Connection: 10 mm.
Flow rate: 10 liters min.
Water pressure: 0.55 bar.
Power supply: 12 Volts.
Consumption: 15-24 W.
Current intensity max: 2.2 A.
Discharge height: 5.5 m.
Pump diameter: 38 mm, height: 104 mm.
Weight: 150 Gr.

Ref COMET: S1300. 01.00

Ideal for plugging thewater inlet on the wall of your motorhome, this plug and its protective cover fit onto vented cups.
For Rapido type vehicles.
Color: White RAL9010.
Dimensions: Ø 77.5 x 52 mm.
Supplied without barrel (ZADI), available as an option.

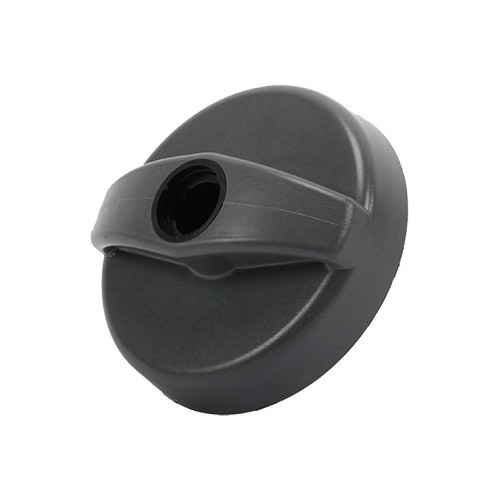

Bayonet cap, for fuel filler cup with vent (type STS Oberholz).
Version with 2 arms, comes without barrel (type FAP).
Type of assembly: CI, Roller Team, Trigano Van.
Overall dimension (mm): Ø 77.5 x52.
Colour: slate grey RAL7015.

Drain cock with Ø 12 mm hose.
Attach to your motorhomes- clean and grey water tanks.
Bore dimensions: Ø 26 mm.
Pipe dimensions: Ø9 mm.

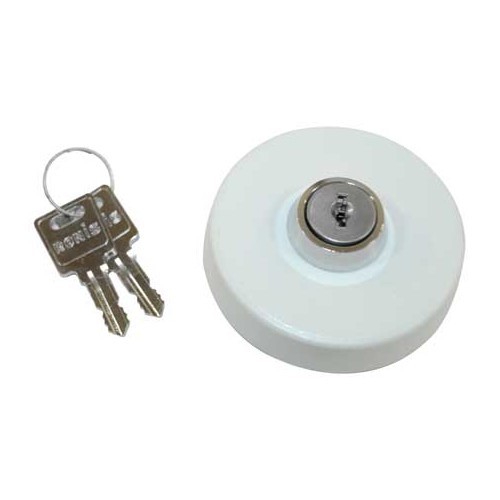

This bayonet cap mounts on a Zadi-type filler cup with vent. Allows you to fill theclean water or fuel tanks of your motorhome or caravan (water only).
Supplied with Zadi type cylinder with 2 keys.
Color: white RAL9010.

Overall dimensions (mm): ø ext 77.5 mm (ø int 63 mm) x 52 mm.

For emptying waste water from motor homes, vans and caravans.
Male threaded connection for drain valve with red handle diam 75 mm (type Zadi).
Diameter: 3" (75 mm.
Length (mm): 150.

This 35L mobile tank for storing clean or dirty water is recommended for motorhomes, caravans or vans. With its carrying handle and PVC wheels, you can easily move it from your vehicle to the campsite's wastewater collection point. Thanks to its 2 inlets, each with a 45 mm diameter, you can connect a submersible pump (clean water). Cleaning is made easy thanks to its wide 14.5 cm opening.
Color: gray.
Dimensions (LxWxH): 800x360x170 mm.
