Exterior

Gas box 2 bottles 860x370x630 mm.
Toggle closures.
In plastic.
Color: beige.
For 2 bottles of 11 kg.
Dimensions (WxDxH): 860x370x630 mm.

Manual reverser.
To be installed between 2 gas cylinders.
It allows you to manually switch from one cylinder to another,
For example, when one of the 2 bottles is empty.
Does not have a trigger function. Install a regulator.
The 2 entries are 20 x 1.5
G 1/2" outlet.

A retro accessory for your vintage car, this universal window ventilation grille can adapt to suit any square or rectangular window, wedges easily between the glass and the seal around the door. Sold individually. In black plastic.

White plastic ventilation grille, 250x70 mm.
For interior use.
Surface assembly.
Adjustable ventilation.
Dimensions (lxw): 250x70 mm.
Air flow: 44 cm².
Colour: white.

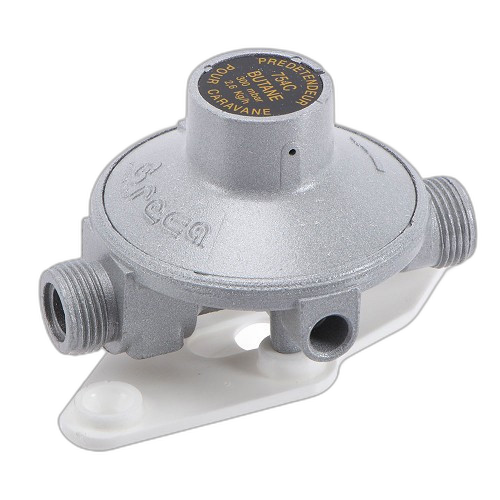

The 30Mb mixed single regulator ensures optimum use of your gas cylinder. It regulates the pressure at your cylinder's outlet, ensuring optimum flow and total safety.
- Complies with EN 12864 standards.
- 1 cylinder , flow rate 1.2 kg/h.
- Operates on butane and propane.
- Double expansion 30 mbar.
- With relief valve.
- Inlet: male threaded 20x150, outlet: bicone ø 8 mm.
Nut and olive not supplied, available as options.

Fixed gas bottle 13 kg.
For 13 kg gas bottles.
It ensures that the gas cylinders are held securely in the gas box.
Includes: plastic mount to screw onto the wall (screws not included) and rubber mount to hold the bottle.

Medium pressure binaural.
Length: 150 cm.
For union nut G 1/4 x LH-ÜM, olive 8 mm
Sold individually.

Propane gas bottle adapter 20mm. Type 511
For Primagaz, Totalgaz, Antargaz cylinders, type Malive, Elfi, Twiny. Not suitable for Butagaz
Clips directly onto the bottle outlet.
Has a threaded outlet for mounting the high-pressure hose: possibility of installing a 6 kg bottle instead of a 13 kg bottle.
Tap function included.
Connection to automatic valve: Inlet diam: 20 mm: adapter outlet: 21.7 mm.
Compatible with all types of liquefied petroleum gas (propane, butane, LPG). Conforms with standard EN16129.
Pressure: 0.3 - 16 bar.

Equipped with an SBS flow limiter (cuts off the gas flow if the hose is torn off), it complies with the European directive 2004/78/EC on the use of gas heating in vehicles.
Mounting type: Bürstner, Pilot, Rapido.
Length: 45 cm.

French P30 flexible headphones G.2.
Installed before the regulator.
Standard NF M88768.
Lifetime limited to 5 years. P 14.
Length (mm): 700.
French bottle nut inlet.
Nut outlet 20x150.
Sold individually.

For French standard G2 bows.
Allows you to connect a French standard lyre to a 3 kg camping-gas cylinder.
This adapter is attached directly to the Camping-gas cylinder.

P11 French G.2 flexible binder.
Installed before the regulator.
NF M88768 standard.
Service life limited to 5 years.
P 11.
Length (mm): 350.
French cylinder nut inlet.
Outlet nut 20x1,50.
Sold individually.

Use the 27 mm gas cylinder adapter for Butagaz cube. (Type 513). This gives you the same G2 outlet as a conventional 13 kg cylinder. Simply connect a lyre or a 30 mb regulator. Easy to use, it clips directly onto the cylinder outlet.
For Butagaz, propane or butane cube.
For 27 mm automatic valve.

Features a threaded outlet for mounting the high-pressure lyre: possibility of installing a 6 kg cylinder in place of a 13 kg cylinder.
Valve function included.
Connection to automatic valve: Inlet diam: 27 mm.
Outlet: G2 male thread (for classic French lyre).

Grille for exterior ventilation of for refrigerator ventilation/
Made from brushed aluminium plate.
Overall dimensions (lxh): 232x117 mm.
Colour: Brushed aluminium.

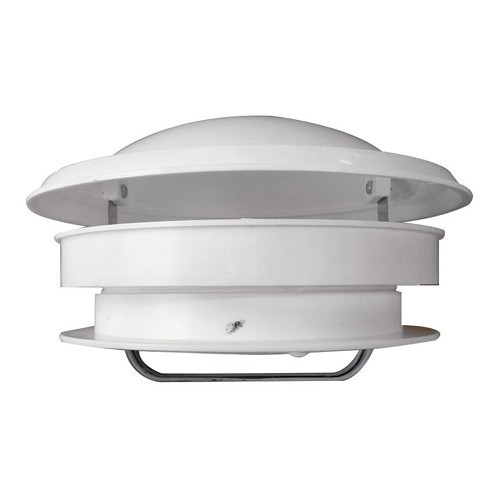

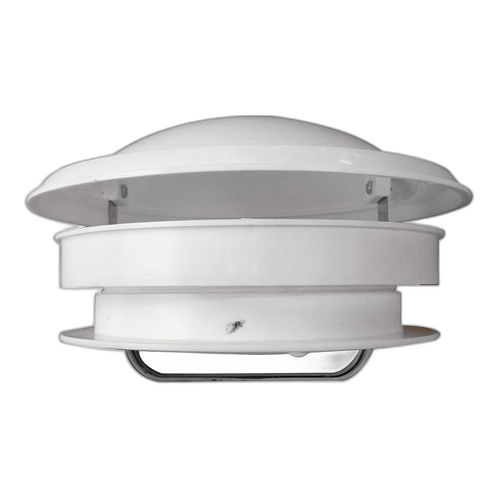

Ventilating your van allows air to circulate inside the vehicle.This plastic ventilation grille not only allows air to circulate in the cell, but also acts as an extractor hood vent in your recreational vehicle, chasing condensation to the outside.Without screen, it is white in color and Ø110 mm outside diameter.

Features:
Built-in mounting.
Built-in dimensions (Ø): 80 mm.
Overall dimensions (Ø): 110 mm.
Air passage: 20 cm².
Color: White.

Ideal for ventilating your caravan, motorhome or camper van, this ventilation grille attaches to the wall of your recreational vehicle. Built-in, the grille clips into the frame and remains removable for easy maintenance. No insect screen.
For installation.
Built-in dimensions :
Overall dimensions: 215 x 215 mm.
Air passage: 160 cm².
Color: Light gray.

Let natural light into your recreational vehicle (motorhome, caravan, van, etc.) with this QUIPON SKY 40 x 40 cm skylight. It also lets in fresh outside air, eliminating cooking smells and aerating your cabin. Developed by QUIPON, a brand of German motorhome, caravan and van manufacturer ERWIN HYMER, you'll be reassured by the quality standards and materials. It fits vehicles with roof thicknesses from 20 to 50 mm. It has 3 opening levels, in addition to the closed position. High-quality blackout roller blind and insect screen complete this skylight for your utmost comfort?

Features:
- Hood color: white.
- Installation dimensions (LxW): 40x40 cm.
- Roof thickness required: 20-50 mm.
- External dimensions (Lxhxp): 490 x 110 x 490 mm.
- Interior dimensions (Lxhxp): 500 x 33 x 500 mm.
- Hood height outside: 110 mm.
- Opening mode: bracket.
- Glazing: single-glazed.
- 3 detent positions: ventilation, 30°, 80°.
- No light or fan.

- Weight: 4.1 kg

QUIPON code : 9955471.

Bring light into your motorhome, van or caravan ! The CHANTAL 40x40 cm handle skylight, with its translucent cover, provides the light you need. Translucent and non-transparent, it protects your privacy when viewed from the outside. Its inner frame is fitted with a blind and mosquito screen.
The 4-wayopening system uses automatic, multi-position lifting handles.
Permanent ventilation

The KIT FRAME DUCATO 40 makes it easy to fit VENT 40 Fiamma (white and crystal) and TURBO VENT 40 (white and crystal) rooflights to vehicle roofs on Fiat DUCATO chassis. Simple to install, it is made from ASA-resistant materials.
Dimensions:
- Overall: 49 x 49 cm.
- Interior: 40 x 40 cm.
Weight: 0.4 Kg.

Ref Fiamma 08636-01

Fan TURBO KIT 12V FIAMMA .
Patented telescopic fixing system. Installation on all 40x40 cm skylights (except Vent, Turbo Vent and other Fiamma 40x40 cm skylights) and skylights up to 50x70 cm. Equipped with a Ø 24cm propeller and 2 telescopic bindings adjustable from 36 to 48 cm. Delivered with fixed 12V power cable and cigar lighter power cable. Works with fan and extractor. Can be battery operated (8 x 1.5V batteries not included).
Power consumption: 3 W.
Ø ventilation propeller: 24 cm.
Absorption min/max: 0.20/0.26 A
Max. air volume: 5,4m³/min.
Voltage: 12 V.
Comes standard with a cigarette lighter power cable and a power cable for the motorhome's 12Vdc device to work both as a fan and as an air extractor. Possibility to operate it with batteries (with 8 batteries of 1.5 V, not included).
Only operate when the vehicle is stationary and the skylight is open.

Fiamma 98683-059
