Sandblasting

This TOOLATELIER pressure blaster comes complete with a sandblasting valve, 4 ceramic nozzles, a plastic funnel for loading abrasive, a 2.5 m abrasive hose, a pressure relief valve, a pressure gauge and a filter with pressure regulator.

Consisting of filter regulator and CE-approved tank.

What is the purpose of a TOOLATELIER vacuum sandblasting cabinet?

This principle is used for small parts in the automotive/motorcycle and industrial sectors.

How does it work?

The principle is simple: theabrasive is sucked into the gun by the Venturi effect(1). It is then projected onto the part to be sandblasted. The sand is collected in the lower part of the cabinet, where it is reused.

What are its uses?

It can be used to strip rust,paint or give your parts a new look.

Technical information

Protective window: yes
Watertight case with cover: yes
Operating pressure: 6.2 bar
Abrasive types: dry glass beads or plastic granules
External size: 66 x 53 x 49 cm
Internal size: 58 x 49 x 28.5 min. to 35 max. cm

Supplied with gun and protective gloves

(1) The Venturi effect consists in reducing the orifice while maintaining a constant flow rate. This increases flow speed and pressure.

This TOOLATELIER sodium bicarbonate blasting gun is suitable for the vast majority of paints and varnishes / corrosion without damaging the substrate. Environmentally-friendly, chemical-free cleaning technique!

To be used at least with a 180 L/min, 6 to 8 bar compressor. In 90% of cases, the bicarbonate gun is adventurous where other blasting tools show signs of weakness.

It can also be used with glass beads to remove rust.

Ideal for use with baking soda gun, part no. TB01174.

This bicarbonate can be used for sanding and cleaning metal parts.
Weight: 5kg

Brown aluminium oxyde for sandblasting gun UO10107

Quantity: 600 CC

4 replacement nozzles for the TA00216 and TA00370 blasting cabinet gun.

The sizes are 4, 5, 6, 7 mm.
External diameter: 16 mm

Tank capacity: 600 cm3
Grain size: 0.106 to 0.425 mm
Air consumption: 198 l/mn
Operating pressure: 6 bar / 90 psi
Air inlet size: 1/4 NPT Female (16.129 mm)
Nozzle size: 2-15/16 x 7/32 diameter (52.3 mm x 5.56mm diameter)

Nozzle size: 2-15/16 x diameter 7/32 (52.3 mm x diameter 5.56 mm)

For reference UO10107

The 220-liter TOOLATELIER sandblasting cabinet is ideal for cleaning and rapid removal of surface oxidation, rust, grease, paint, etc. This principle prepares parts for primer treatment (e.g. zinc) and paint protection such as Epoxy.

What makes up a sandblasting cabinet?

A TOOLATELIER sandblasting cabinet is made of sturdy steel with 2 composite doors. It is equipped with a glass porthole and low-voltage lighting. The double doors provide easy access for bulky parts.

What kind of abrasives can be used?

This cab can be used with glass beads, silicon carbide, aluminum oxide, etc.

- Operating pressure: 10.3-15 bars
- Air flow: 1200 L/min at 15 bars
- Air consumption : 475 L/min
- Air intake: 1/4

These replacement sandblasting cabinet gloves are ideal for TA00216 or equivalent.

Its weight is 310 g.

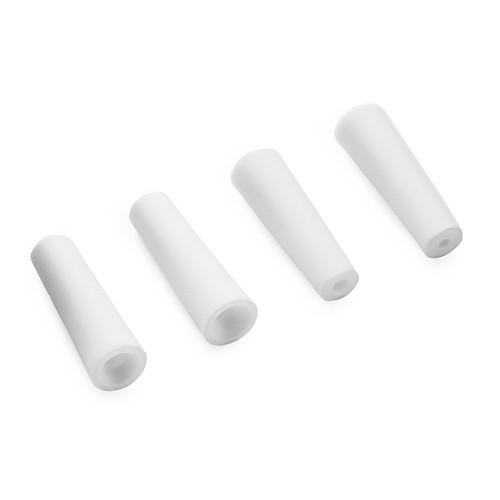

These ceramic nozzles are used on the sanding valves of the sand-blasting number TA00217.

Sizes of ceramic nozzles: 1.7 / 2.2 / 2.7 / 3.2 mm

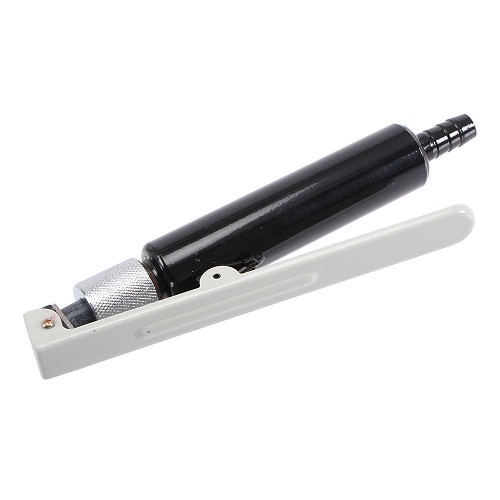

Gun for sand blaster with 4 different calibre nozzles as well as a trigger and jet shut-off.

Used on sand blaster part reference TA00217

4 window protective films for sand blasting cabinet TA00216 or equivalent.

Size : 57 x 27 cm

Ceramic nozzles for gun, reference TA00398 or equivalent.

Nozzle sizes: 2 / 2.5 / 3 & 3.5 mm
