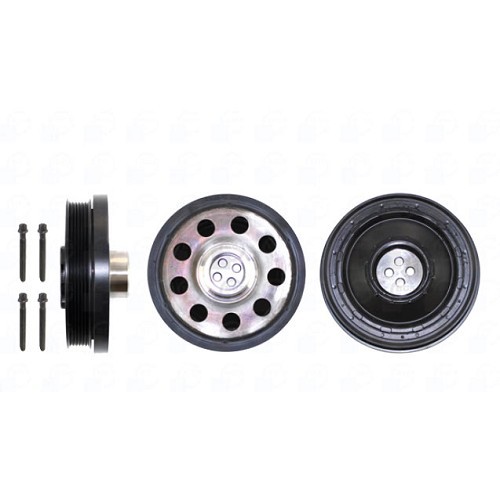

Damper pulley with vibration dampers for BMW 1 Series E81 3-door sedan , E87, E87LCI 5-door sedan, E82 Coupé and E88 Cabriolet:
E81 3-door sedan :
- 116i 115hp from 04/2007 to 12/2011 (engine code N45B16)
- 118i 2.0L 129hp from 09/2006 to 12/2011 (engine code N46B20)
- 120i 150hp from 09/2006 to 10/2011 (engine code N46B20)
E87 5-door sedan phase 1 :
- 116i 115hp from 05/2006 to 02/2007 (engine code N45B16)
- 118i 2.0L 129hp from 05/2006 to 02/2007 (engine code N46B20)
- 120i 150hp from 05/2006 to 02/2007 (engine code N46B20)
E87LCI 5-door sedan phase 2 :
- 116i 115hp from 02/2006 to 06/2011 (engine code N45B16)
- 118i 2.0L 129hp from 10/2006 to 06/2011 (engine code N46B20)
- 120i 150hp from 09/2006 to 06/2011 (engine code N46B20)
E82 Coupé :
- 120i 150hp from 06/2009 to 10/2013 (engine code N46B20)
E88 Cabriolet :
- 118i 2.0L 129hp from 03/2008 to 09/2013 (engine code N46B20)
- 120i 150hp from 11/2006 to 10/2013 (engine code N46B20)
Technical specifications :
- Outside diameter: 141mm
- Inside diameter: 36mm
- Width: 38mm
- Number of grooves: 6 (PK6)
- Distance between 4 holes: 49mm
ATTENTION: Not suitable for E87 phase 1 116i, 118i and 120i produced from 03/2003 to 04/2006!
When fitting the crankshaft pulley, it is imperative to comply with the tightening torque (see manufacturer's recommendations) and also to replace the central screw (part no. BC35988, to be ordered separately on our site).
INFORMATION: You can recover the 4 M8x20 cylindrical fixing screws from your old pulley.
This product is not supplied with the screws.
