Diaphragms

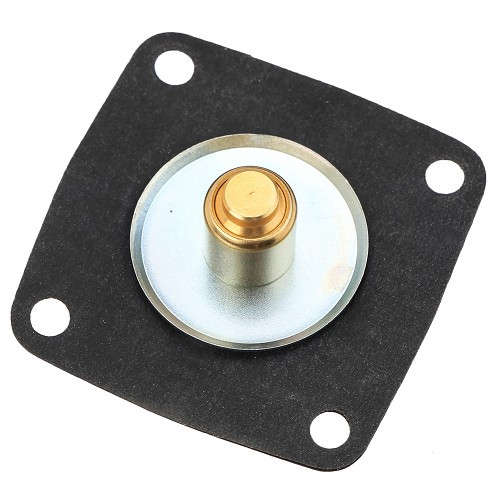

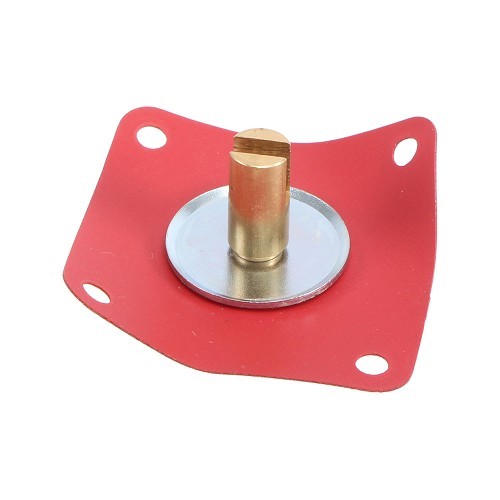

Return pump square diaphragm
German quality
For Weber IDF 1st generation Carburettor

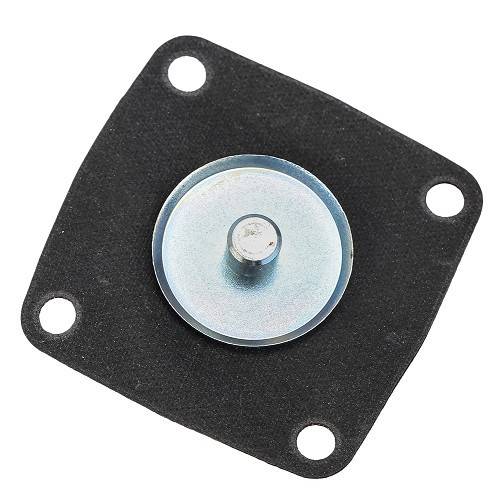

Return pump square diaphragm
German quality
For Weber IDF 2nd generation Carburettor

Accelerator pump diaphragm for Weber carburettor

For Weber carburetor listed below:
26/34 DHSA
28/30 DFTH
32/36 DAC
32/36 DFAV
32/36 DFV
32/34DMTL
32 DAFs
32 DFBs
32 DFDs
32 TFDs
32 DFTA
32/34 TFD
32 DFE-DFM
32 DHS
32 DIF
32 DIR Early
32 DMTR Early
32 BCI
32 ICH
32 ICRs
32 ICT
32 ICH
34 DATC
34 DATRA
34 ICH
34 ICT
36 DCA
36 DCNF
36 DCNFA
36 CVDs
36 DCNVA
36 DCNVH
38 ads
40 DCNF
40 DFOs
42 DCNF
44 DCNF

New original Weber part

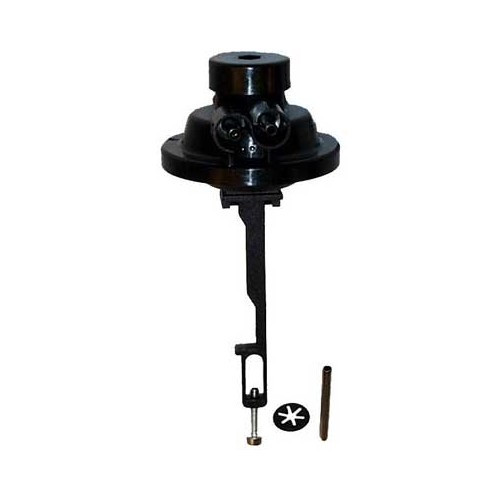

Idle adjuster diaphragm to fit Weber 32/36 DGV, DGAV and DGEV carburettors.

The Weber 32/36 DGV, DGAV and DGEV carburettors use an idle adjuster diaphragm which enriches the air/fuel mixture for extra power and better efficiency when opened. On the other hand, at low rpm this membrane closes so you get a leaner mixture and therefore save fuel.
A failed diaphragm can cause excessive fuel consumption, black smoke, or unstable idling.

For Weber Carburettors:
- 32/36 DGV
- 32/36 DGAV
- 32/36 DGEV

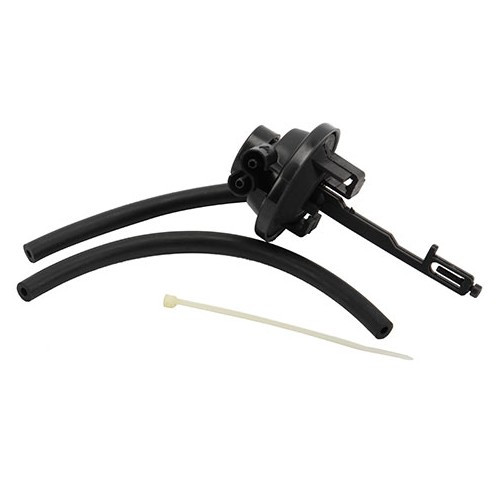

Idle adjuster diaphragm that fits Weber 32/36 DGAS, DGES carburettors.

Some Weber 38 DGAS and DGES carburettors use an idle adjuster diaphragm which enables you to enrich the air/fuel mixture for more power and better efficiency when opened. On the other hand, at low rpm this membrane closes so you get a leaner mixture and therefore save fuel.
A failed diaphragm can cause excessive fuel consumption, black smoke, or unstable idling.

For Weber Carburettors:
- 38 DGAS
- 38 DGES

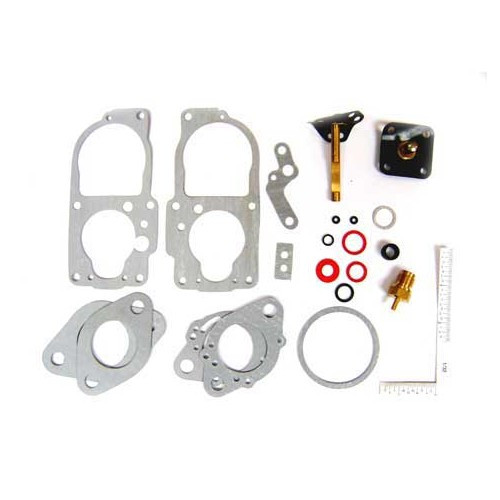

Gasket kit with membrane and needle to renovate Solex Carburator 32 / 34 PDSIT-2 / 3 left or right for VW:
- Type 3, 1.5, 1.6, (1965 -1973)
- 412, 1.8, (1973 -1974)
- Bay Combi, 1.7, 1.8, 2.0, (1971 -1979)
- Transporter, 2.0, (1979 -1983)

Need 2 per car, sold individually.

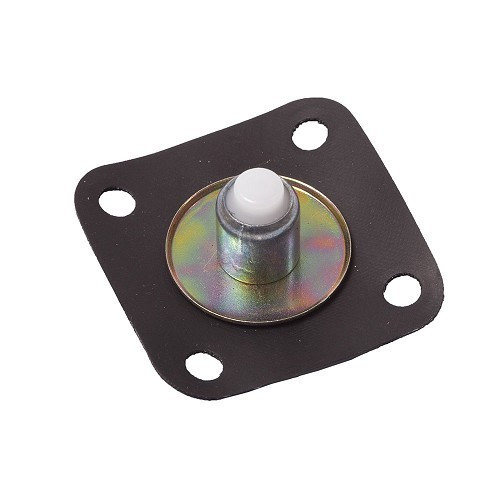

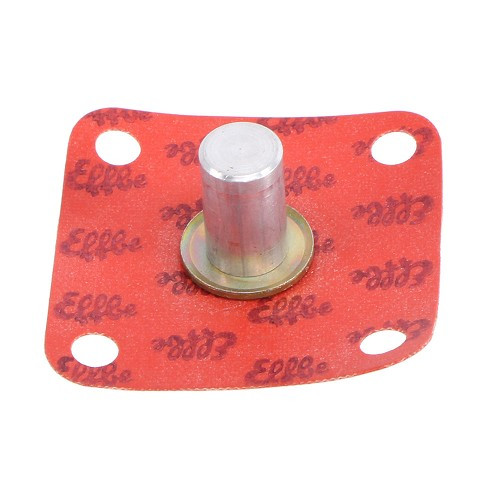

Square diaphragm for Solex carburettor return pump:
- 28 PICT 1/2
- 30 PICT 1/2/3
- 31 PICT 3
- 34 PICT 3

German quality.

For Golf 1:
- 1.6 75hp (EW)
- 1.8 90hp (EX)

For Passat (32B):
- 1.6 75hp (DT) until ->07/85
- 1.8 90hp (DS) until ->07/85

For Golf 2:
- 1.6 75hp (EZ) until ->27/09/1984
- 1.8 90hp (GU) until ->07/85

Square vacuum membrane for 34 PICT 4 & 5 carburettors

Can be fitted on VW Transporter T3 / T25 with these carburettors.
Dimensions: Centre to centre distance of holes 29 mm / overall length of push rod, 41 mm

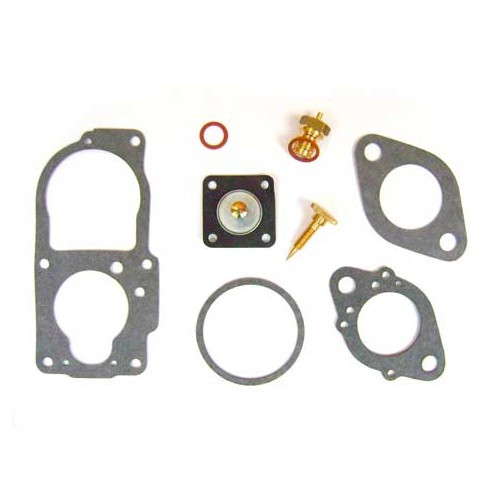

German quality renovation kit for a Transporteur T3 with a Solex carburettor, model 34 PICT 5
Renovation kit containing:
- gaskets and O-rings (cf. photo)
- accelerator pump square membrane 37 mm, rod = 12 mm
- square membrane 37 mm, rod = 38 mm

Warning: this kit does not contain the setting screws, needles and tank levels.
Suitable for 1900 EY, DF engines (water cooled engine) on a Transporter T25 / T3 from 05/1979 ->12/1982.

This kit contains everything that is shown in the photo.

For 1 PDSIT 2 or 3 type carburettor
For Type 3 engine from 1964 to 1967

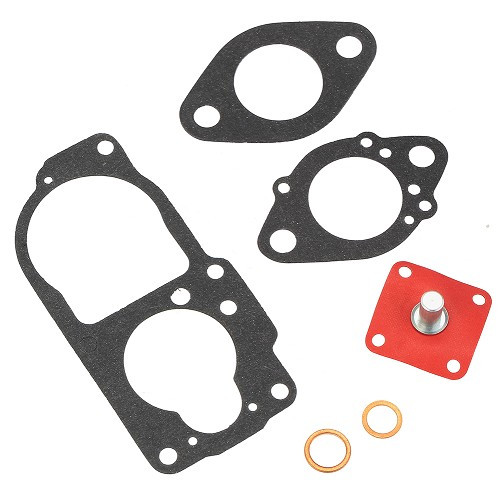

Gasket kit with membrane to renovate Solex carburettor type 32 PDSIT 2 or 3.
Left or right, 2 required per car, sold individually.
German quality
It includes everything in the picture.
no needle and no screw

For VW Type 3 from 1964 to 1967

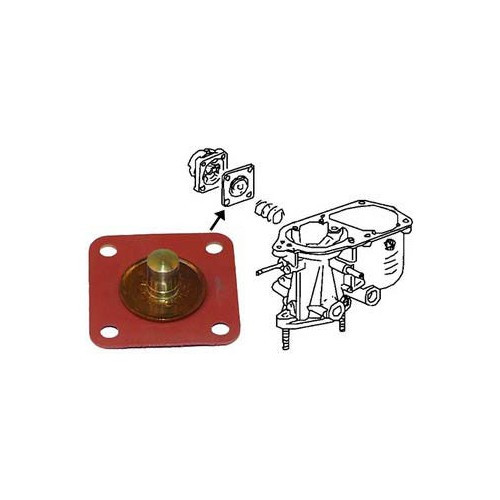

Square diaphragm return pump for Solex carburettor:
- 32 PDSIT 2

Square diaphragm return pump for Solex carburettor :
- 31
- 34 PICT-4

German quality.

German quality renovation kit for a Transporteur T3 with a Solex carburettor, model 34 PICT 4
Renovation kit containing:
- gaskets and O-rings (cf. photo)
- accelerator pump square membrane 47 mm, rod = 17 mm
- square membrane 37 mm, rod = 38 mm

Warning: this kit does not contain the setting screws, needles and tank levels.
Suitable for 1600 CT, CZ engines (air cooled engine) on Transporter T25 / T3 from 05/1979 ->12/1982.

This kit contains everything that is shown in the photo.

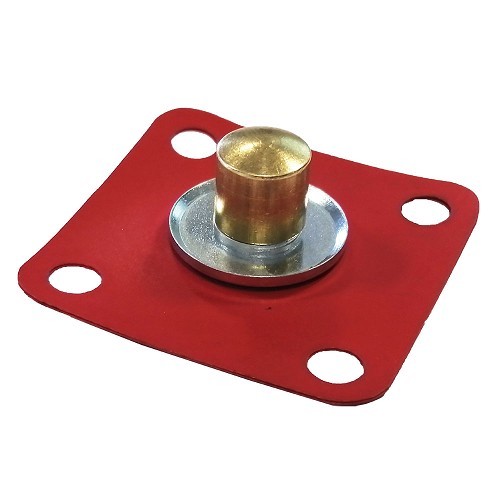

Square diaphragm return pump for Solex carburettor :
- 28 PCI

German quality.

Tank level gauge copper gasket
For VW with Solex carburetors from 26 to 34
flat gasket: M16 x 12 x 1.5 mm

For VW Cox , Karmann-Ghia, type 181, Combi Split and Bay Window
With carburetors: 26 VFI / VFIS, 28 PCI, 28 PICT, 28 PICT-1, 28 PICT-2, 30 PICT-1, 30 PICT-2, 30 PICT-3, 31 PICT-3, 31 PICT-4, 34 PICT-3, 34 PICT-4
For VW Transporter T25/T3 with 34 PICT-4 or 5 carburetor

Triangular vacuum diaphragm for Solex carburettor :
- 28 Pict
- 30 Pict
- 31 Pict
- 34 Pict
Base 36mm approx.
German quality

NOS gasket kit for Solex carburettor models:
- 32 PHN1 & 32 PHN2
Repair set containing:
- flat seals and O-rings (see photo)


Please note that this kit does not include the adjustment screws, pump diaphragms, needle valves and tank levels.


This pouch contains what is on the picture.
