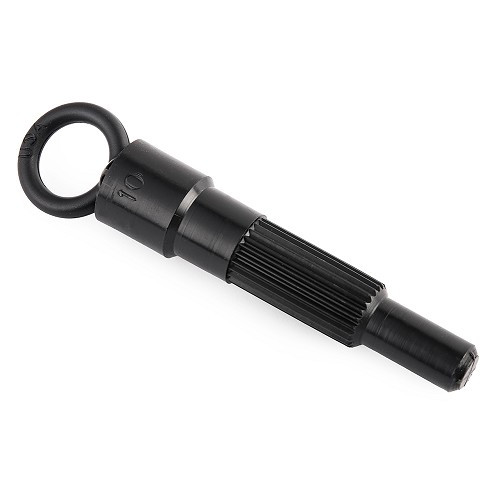

This clutch alignment tool, also called "dummy gearbox input shaft", allows perfect centering of the clutch disc, making the assembly of the engine and gearbox easier!
The alignment tool diameter is 26 mm at the top, 20 mm in the center (splined section), and 15 mm at the bottom. It has 24 splines.
This clutch centering device, also known as a "false gearbox tail", perfectly centers the clutch disc, facilitating assembly of the engine and gearbox!
The diameter of the centering device is 26 mm at the top, 20 mm in the center (splined part) and 15 mm at the bottom. It is made up of 24 splines.
Suitable for : - Beetle, Karmann-Ghia, Type 3, 181 : Type 1 engines: 1200, 1300, 1500, 1600cc - Combi Split, Combi Bay Window : Type 2 engines: 1200, 1500, 1600cc - Transporter T25 / T3 : Diesel / T-Diesel engines: 1600, 1700cc - Porsche 356 pre A from 1950 to 1955, 356 A from 1956 to 1959, 356 B T-5 from 1959 to 1962, 356 B-T6 and 356 C and SC - Porsche 912

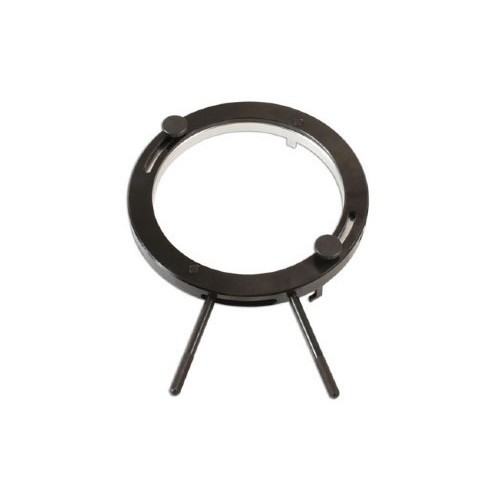

This clutch centering device enables the removal and reinstallation of BMW self-adjusting clutch covers fitted to manual gearboxes and SAC clutch covers.
Models: 1 Series (2004<), 3 Series (2000<), 5 Series (2000<), X3 (2003<), Z4 (2003<)
- Inside Ø: 115 mm It can be used with the BMW tool part no. TB01180.

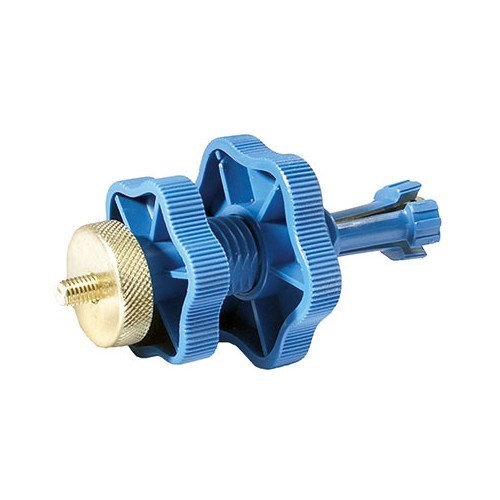

Practical and universal, this TOOLATELIER centering device comes with 9 different bits to fit most modern clutches and clutch plates. Sliding outer centering cone for all makes of vehicle.
Sizes of 9 adapters: 18 x 11 / 18 x 12 / 18 x 15 / 18 x 17 / 18 x 19 / 18 x 20 / 18 x 21 / 18 x 25 / 82 x 20.5 mm
