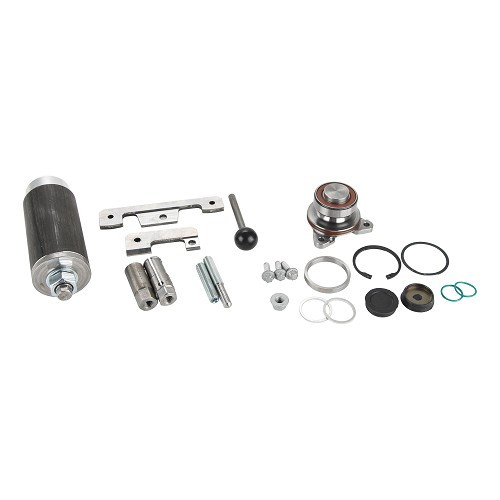

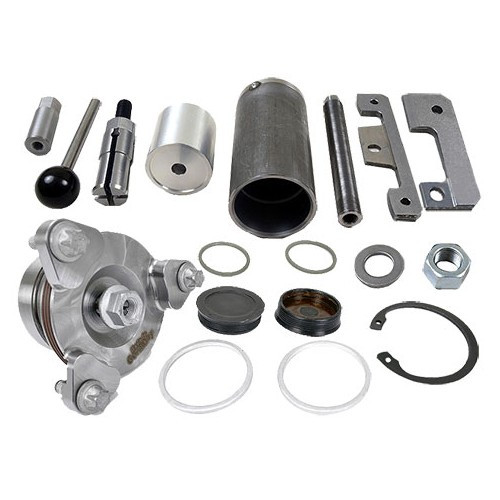

Kit including mounting tools + IMS bearing (for single or double row version) for Porsche 986 Boxster from 1997 to 2004:
- 986 2.5 Boxster - 204 hp (M96.20) from 1997 to 1999- 986 2.7 Boxster - 220 hp (M96.22) from 2000 to 2001- 986 3.2 Boxster S - 252 hp (M96.21) from 2000 to 2002- 986 2.7 Boxster - 220 hp (M96.22) from 2001 to 2002- 986 2.7 Boxster - 228 hp (M96.23) from 2003 to 2004- 986 3.2 Boxster S - 252 hp (M96.21) from 2001 to 2002- 986 3.2 Boxster S - 260 hp (M96.24) from 2003 to 2004
This bearing with 100% ceramic balls is stronger than the original one. It resists friction better with a high-temperature grease designed to withstand temperatures up to 180°C.
Both the bearing lubricant and the housing seal are of the highest quality available for this application, to ensure the reliability of your engine.
To facilitate bearing assembly and preserve its integrity. We strongly recommend that you chill the bearing in a freezer for 2 hours before fitting it, and that you heat the area of the engine block where the IMS will be fitted to 120 degrees Celsius.
- Original two-row version: Use the 6 mm spacer ring and a closed circlip for mounting (see application image for two-row version).- Original single-row version: Do not use the 6 mm spacer ring. Use an open circlip as a retaining ring
Also, make sure there's no oil in the intermediate shaft tube before fitting the bearing!Centrifugal force, combined with residual oil, creates a counterweight that will destroy the bearing prematurely.
