Bottom clip for 2cvs before 1970

Details about : Bottom clip for 2cvs before 1970

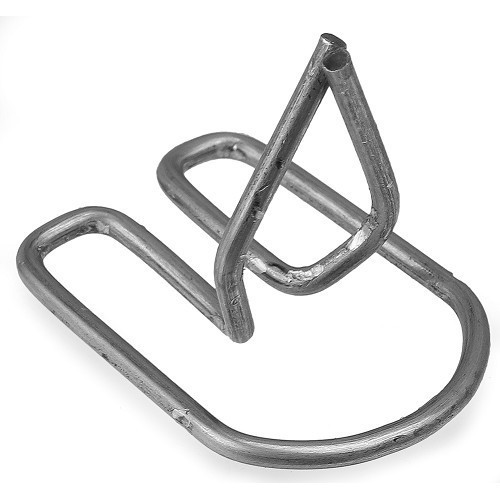

This sill clip for 2cvs before 1970 is used to fix the sill trim.

It is made of steel and the square shape means it slides into the mouldings with pins for a spring effect so it attaches easily to the sill, whether it-s made of aluminium, stainless steel or has chrome plating.

If there aren-t any holes already, drill the side rail with a 3.5 mm metal drill bit, positioning the first hole 53 mm from the front wing securing bolt and 17 mm from the bottom of the side rail, then every 265 mm.

Original reference:

A85418
