Drum flanges

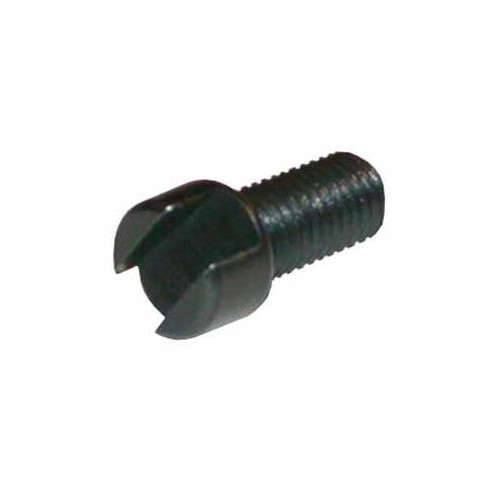

Adjustment screw to front or rear brake shoe,
sold individually.

For VW :
- Beetle & Karmann-Ghia, 08/1964->
since chassis N° 115 000 001->
- Type 3, Type 4, 08/1964 ->02/1975
since chassis N° 315 000 001->
- 181 with cardan 03/1973 ->12/1979
since chassis N° 183 2346 525->

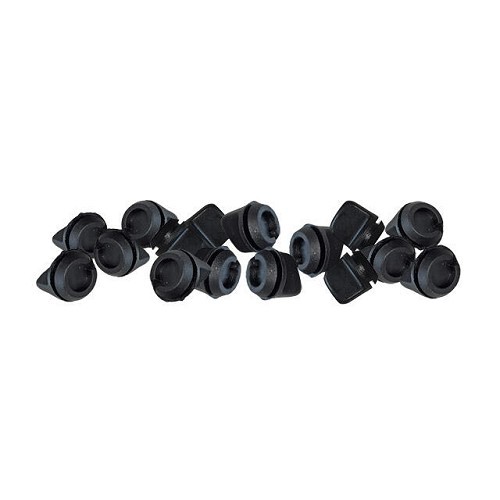

16 shutter anti-dust on brake drum flange.
Allows access to shoe adjustment knobs.
Sold by 16 for 4 wheels

For VW Cox, Karmann-Ghia, Type 3

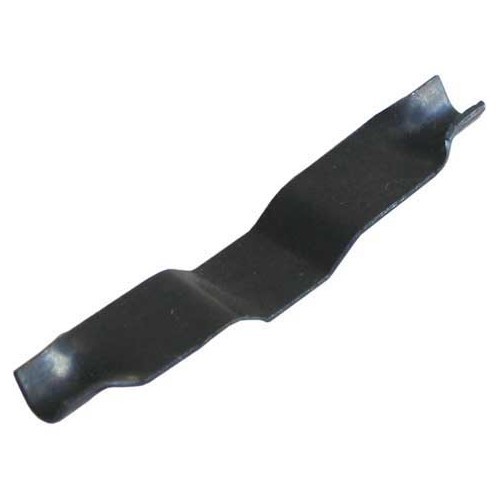

Leaf spring which retains the notched adjustment wheels on the brake shoes. Length of the tab: 60 mm. Front or rear, left or right-hand, sold per unit.

For VW:
- Beetle, all versions
- Karmann-Ghia, all versions
- Type 3, all versions
- Kübel 181, from 03/1973->
from chassis no. 183 2346 525->
- Combi Split (front)

This steel spring clip holds the handbrake cableto thepush rod

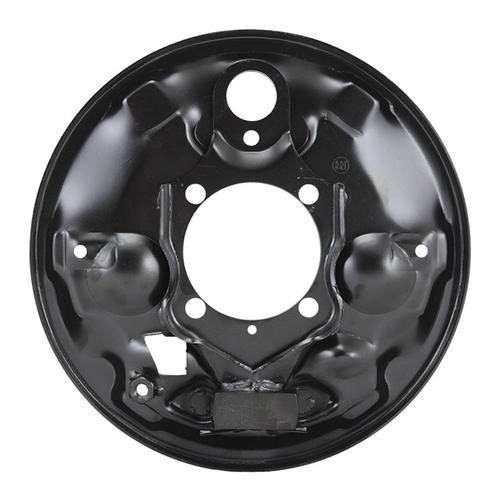

Brake drum backing plate rear right-hand
support flange for jaws and wheel cylinder.

For Combi Bay Window, 08/1970 ->07/1979
since chassis no. 211 2000 001->

Right rear drum brake backing plate
Shoe carrier flange and wheel cylinder.

For VW Beetle

Rear left-hand Brake drum backing plate support flange for jaws and wheel cylinder.

For VW Combi T2 Bay Window, 08/1967 ->07/1970
Chassis no. 218 000 001 ->210 2300 000.

Left rear drum brake backing plate
Shoe carrier flange and wheel cylinder.

For VW Beetle

For Golf 1, Cabriolet, Jetta 1 & Scirocco,
(except Caddy)
From 1979 and up to chassis
->15-C-018 000
->16-C-694 101
->17-C-694 101
->53-C-050 000

Right rear passenger side drum brake plate diameter 250mm for BMW 02 series E10 Sedan :

- 1600ti 105hp phase 1 from 09/1967 to 12/1968 (engine code M116)
- 2002Turbo 170hp from 07/1973 to 07/1975 (engine code M31)

ATTENTION: On 1600ti there is also a 230mm assembly, depending on the year. Please check the diameter of your chainrings before ordering!

Brake shoes, wheel cylinder and springs are not supplied.

Front shoes springs and parts kit for Old Beetle
1200, 1300, for 2 front wheels

Left or right front drum brake backing plate
Shoe carrier flange and wheel cylinder.

For VW Coccinelle 1200, 1300, 1500, since 08/1965->
from chassis No. 116 000 001->
with ball-joint front axle All models except 1302

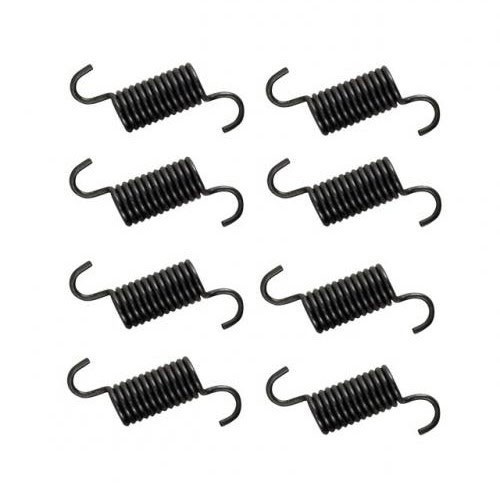

Complete kit of 8 springs for fastening the rear brake shoes. Kit for the 2 back wheels (4 piece per side).

For VW Kübel 181, 08/1969 ->02/1973
Models with back suspension gearboxes
Chassis: No. 180 2151 344 ->183 2346 524.

Left-hand rear drum plate for:
- 924 from 1976 to 1985

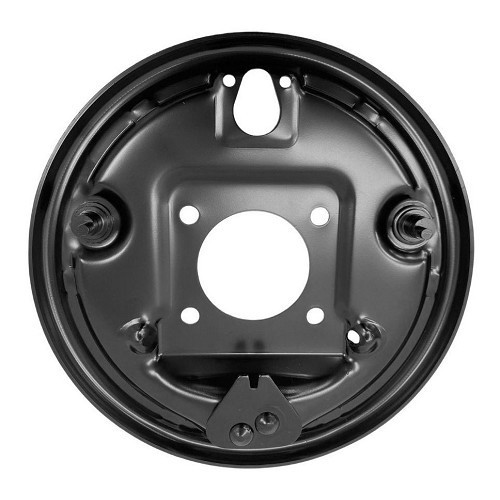

Passenger-side rear right drum brake plate diameter 230mm for BMW 02 series E10 Sedan, Touring, Cabriolet and Cabriolet Baur Targa :

Sedan :
- 1600ti 105hp phase 1 from 09/1967 to 12/1968 (engine code M116)
- 1802 90hp phase 1 from 04/1971 to 08/1973 (engine code M118)
- 1802 90hp phase 2 from 09/1973 to 05/1975 (engine code M118)
- 1802A auto phase 2 90hp from 07/1974 to 09/1974 (engine code M118)
- 1502 1.6l 75hp phase 2 from 11/1974 to 07/1977 (engine code M116)
- 2002 100hp phase 1 from 01/1968 to 08/1973 (engine code M05)
- 2002ti 120hp phase 1 from 09/1968 to 04/1972 (engine code M05)
- 2002A auto 100hp phase 1 from 01/1969 to 08/1973 (M05 engine code)
- 2002tii 130hp phase 1 from 04/1971 to 08/1973 (engine code M15)
- 2002 100hp phase 2 from 09/1973 to 11/1975 (engine code M05)
- 2002A auto 100hp phase 2 from 09/1973 to 06/1975 (engine code M05)
- 2002tii 130hp phase 2 from 09/1973 to 11/1975 (engine code M15)

Touring :
- 1602 85hp phase 1 from 04/1971 to 09/1972 (engine code M116)
- 1800 90hp phase 1 from 09/1971 to 08/1973 (engine code M118)
- 2000 100hp phase 1 from 04/1971 to 08/1973 (engine code M05)
- 2000A auto 100hp phase 1 from 05/1971 to 09/1972 (engine code M05)
- 2000tii 130hp phase 1 from 01/1971 to 08/1973 (engine code M15)
- 1802 90hp phase 2 from 09/1973 to 04/1974 (engine code M118)
- 2002 100hp phase 2 from 09/1973 to 04/1974 (engine code M05)
- 2002tii 130hp phase 2 from 09/1973 to 04/1974 (engine code M15)

Cabriolet :
- 2002 100hp phase 1 from 01/1971 to 06/1971 (engine code M05)

Cabriolet Baur Targa :
- 2002 100hp phase 1 from 06/1971 to 08/1973 (engine code M05)
- 2002 100hp phase 2 from 09/1973 to 12/1975 (engine code M05)

WARNING: Not suitable for 1600-2, 1602 or 2002Turbo!

Brake shoes, wheel cylinder and springs are not supplied.

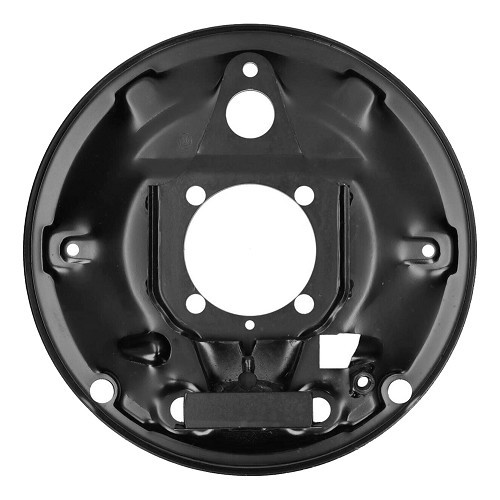

Right rear drum brake plate

For VW Type 3 (Notchback, Fastback, Variant)
Years: (08/1965-)

Rear right-hand drum plate for:
- 924 from 1976 to 1985

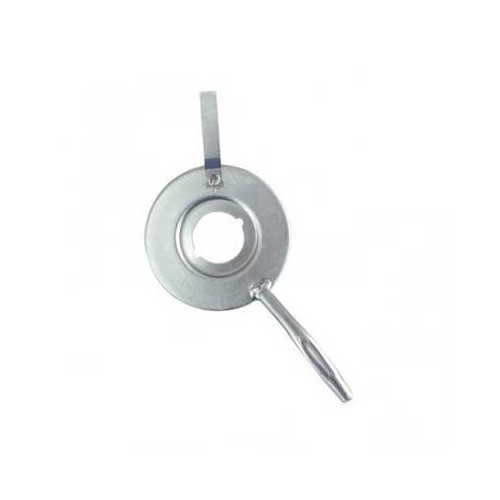

Handbrake plate as lower shoe connection.
For left rear wheel
For VW Beetles and Karmann-Ghia since 1958

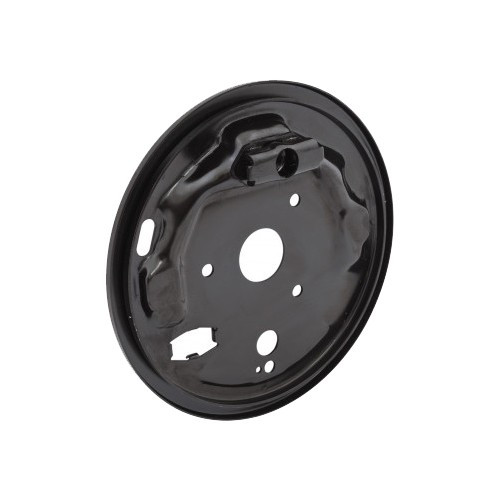

Right rear brake plate for Austin :
- Compatible with Austin Mini versions from 09/1959 to 12/2000 including Cooper models.

Hand brake lever and control
For left rear wheel

For VW Cox
