Seal between air duct and intercooler for BMW 3 Series E46 - diesel engines M47N and M57N

Details about : Seal between air duct and intercooler for BMW 3 Series E46 - diesel engines M47N and M57N

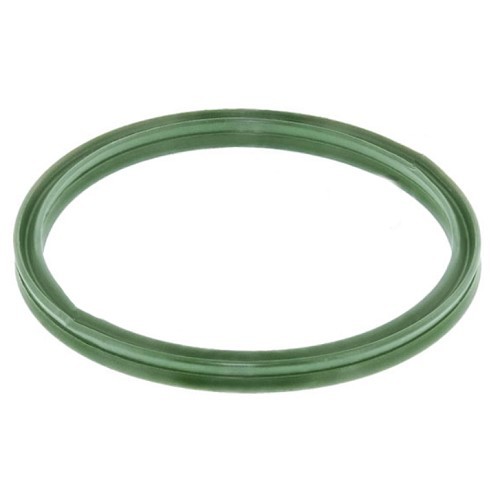

Profile joint located between the intercooler and the air duct connecting the turbo for BMW 3 Series E46:

Berline:
- 318d 116hp phase 2 from 03/2003 to 01/2005 (engine code M47D20TU)
- 320d 150hp phase 2 from 03/2001 to 05/2005 (engine code M47D20TU)
- 330d 204hp phase 2 from 08/2002 to 02/2005 (engine code M57D30TU)
- 330xd 4x4 204hp phase 2 from 09/2002 to 12/2004(engine code M57D30TU)

Compact :
- 318td man. 115hp phase 2 from 01/2003 to 12/2004 (engine code M47D20TU)
- 320td 150hp phase 1 from 03/2001 to 03/2003 (engine code M47D20TU)
- 320td 150hp phase 2 from 04/2003 to 12/2004 (engine code M47D20TU)

Touring:
- 318d 116hp phase 2 from 10/2001 to 07/2005 (engine code M47D20TU)
- 320d 150hp phase 2 from 10/2000 to 07/2005 (engine code M47D20TU)
- 330d 204hp phase 2 from 09/2002 to 07/2005 (engine code M57D30TU)
- 330xd 4x4 204hp phase 2 from 08/2002 to 05/2005 (engine code M57D30TU)

Coupe:
- 320cd 150hp phase 2 from 03/2003 to 05/2006 (engine code M47D20TU)
- 330cd 204hp phase 2 from 08/2002 to 05/2006 (engine code M57D30TU)

Cabriolet:
- 320cd 150hp phase 2 from 01/2005 to 08/2006 (engine code M47D20TU)
- 330cd 204hp phase 2 from 11/2004 to 08/2006 (engine code M57D30TU)

Internal diameter: 53,95 mm
For hose connection diameter 60,5 mm

Original reference:

11617788415
