Joint yoke

Homokinetic Joint Left or Right wheel side, sold per side.

For Scirocco from 84 ->92 :
- 1.8 90hp (EX) from 88-> with manual gearbox
- 1.8 (JH)
- 1.8 GLi (DX, KT)
- 1.8 16s (KR, PL)

For Corrado from 89 ->95 :
- 1.8 G60 (PG) Left-hand only (up to chassis ->K-006 793)
- 1.8 G60 (PG) Left

For Golf 1 Cabriolet 85 ->93 including Automatic :
(from chassis F-000 001->)
- 1.6 Carburetor (EX)
- 1.8 Carburetor (JH)
- 1.8 GLI (DX, KT, 2H)

Voor Golf 3 Berline, Cabriolet & Vento 92 ->98
inclusiefAutomaat en Syncro (4 x 4):
- 1.6 16v 100pk (AFT, AKS)
- 1.8 Injection monopoint (ABS, AAM, ADZ, ANP,ANN, ACC)
- 1.9 Diesel & Turbo Diesel (1Y, AAZ)
- 1.9 TDi 90pk & 110pk (1Z, AFN, ALE, AHU)

Voor Golf 4 Cabriolet 99 ->02 (inclusief Automaat):
- 1.9 TDi 90pk & 110pk (AFN, AHU,ALE, AVG)
- 2.0 115pk (AWG, AWF)

For Polo 4 Classic from 97 ->02:
- 1.6 8S 75hp (1F)
- 1.6 16s 100hp (AFT, AEH, AKL)
- 1.9 TDi 90hp & 110hp (1Z, AFN, ALE, AHU, AGR, ALH, ASV)

For Polo Caddy (2) from 96 ->03:
- 1.6 8s 75hp (1F)
- 1.9TDi 90hp & 110hp (1Z, AFN, ALE, AHU, AGR, ALH, ASV)

For Golf2 &Jetta 2 84 ->92
including Rally & Syncro (4 x 4) :
- 1.8 75cv& 90cv(1P, GU, RH, RP) 08/89->
- 1.8 GTi 8s (EV, RD, RG, GZ, HT, PB, RV, PF)
- 1.8 GTi 16S (KR, PL)
- 1.8 GTi G60 (PG)

Inside left or right cardan shaft on gearbox side diameter 90mm for VW Golf 3 :
VW Golf 3:

- 1.8 single-point
- 1.9 Diesel

ATTENTION: There are 2 possible assemblies with 90mm or 100mm nuts. We recommend that you check your mounting before ordering!

Dimensions :
- Number of teeth : 33
- Number of holes / Bore: 6
- Hole diameter: 8.2mm
- Center distance: 78mm
- Diameter: 90mm

Left or right rear cardan shaft inner nut on deck side for VW Golf 3 :

- VR6 Syncro 6 cylinders 2.9L 190hp from 08/1995 to 08/1997 (engine code ABV)

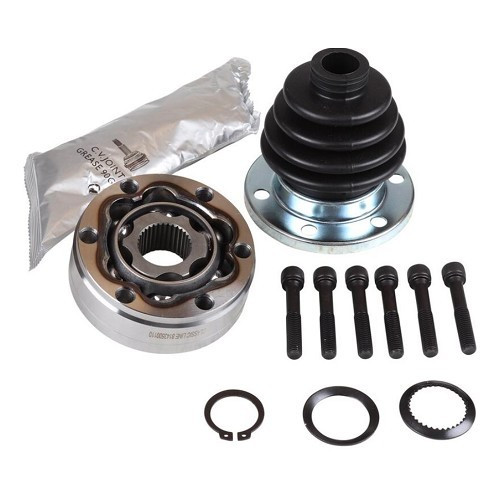

This differential-side constant-velocity joint kit includes nut, bellows, grease and 6 universal joint screws. Supplied without ABS ring.

Dimensions :
- Number of teeth : 33
- Number of holes / Bore: 6
- Hole diameter: 8.2mm
- Center distance: 78mm
- Diameter: 93mm

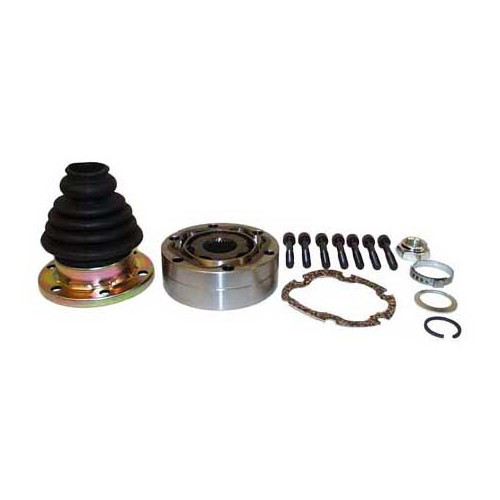

Complete constant velocity joint kit for 1 universal joint side:
Cup joint + Gaiter + Nuts and bolts + Grease
Fitted inside or outside of the left or right-hand universal joint.
For:
- Beetle 1302, 1303 & Automatic
- Karmann-Ghia
- Type 3
- 181, Buggy, 356 Replica
with Type 1 gearbox with universal joints (diameter: 90 mm).
33 grooves

For Golf 1 Berline :
- 1.5, 1.6, 1.8 gasoline ->07/84
- Diesel & TD ->12/83

ForGolf1 Cabriolet :
- 1.6 with carburetor
- 1.8 with carburetor ->08/87
- 1.8 GLi ->07/84

For Golf 2 :
- 1.6 with carburetor ->10/91
- 1.6 Diesel & TD
- 1.8 with carburetor ->07/89

For Audi 100

Suitable for:
- Audi 80 from 72 ->96
- AudiCoupé from 81 ->96
- Audi Cabriolet from 93 ->98

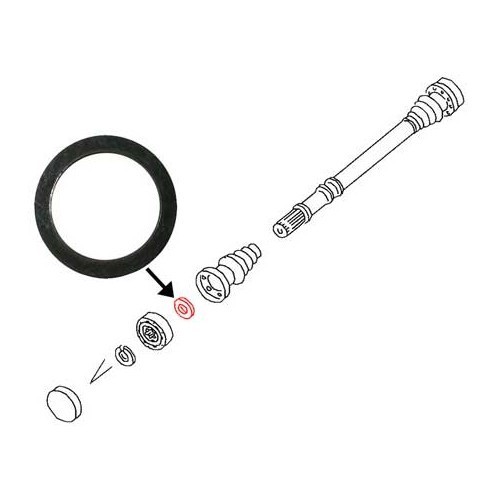

Spacer for 90 mm cardan shaft. Can be mounted inside or outside the left or right universal joint.

For VW :
- Beetle 1302, 1303

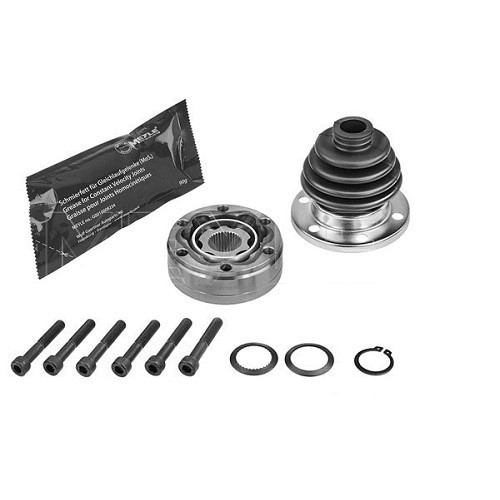

Complete constant velocity joint kit for 1 universal joint side:
Cup joint + Gaiter + Nuts and bolts + Grease
Fitted inside or outside of the left or right-hand universal joint.
For:
- Beetle 1302, 1303 & Automatic
- Karmann-Ghia
- Type 3
- 181, Buggy, 356 Replica
with Type 1 gearbox with universal joints (diameter: 90 mm).
33 grooves

Inside right or leftcardan shaft on gearbox side 108mm for Volkswagen Golf 6Berline and Variant with 6-speed manual gearbox and 6- or 7-speed DSG dual-clutch automatic gearbox:
Golf 6 Sedan with DSG6 :- 2.0 TDi 110hp (CBDC)- 2.0 TDi 140hp (CJAA)- 2.0 GTi 200hp (CBFA)- 2.5 170hp (CBTA, CBUA)
Golf 6 Sedan with DSG7 gearbox from 03/11/2008 :- 1.4 TFSi 122hp (CAXA)- 1.6 TDi 105hp (CAYC)- 1.6 TFSi 160hp (CAVD, CNWA)
Golf 6 Sedan with 6-speed manual gearbox :- 1.8 TFSi 160hp (CDAA)- 2.0 TDi 136hp (CBAA, CFFA)- 2.0 TDi 140hp (CBAB, CFFB) --> incl. 4motion- 2.0 GTi 200hp (CCTA)- 2.0 GTi 210hp (CCZB)
Golf 6 Variant with DSG6 gearbox :- 2.0 TDi 140hp (CBDB)
Golf 6 Variant with DSG7 gearbox from 03/11/2008 :- 1.2 TFSi 105hp (CBZB)- 1.4 TFSi 122hp (CAXA)- 1.6 TDi 105hp (CAYC) --> including 4Motion- 1.6 TFSi 160hp (CAVD)- 2.0 TFSi 200hp (CCZA)
Golf 6 Variant with 6-speed manual gearbox :- 2.0 TDi 136hp (CBDA, CFHB)- 2.0 TDi 140hp (CFHC)
Technical data :- Assembly side: gearbox side, right or left cardan shaft - Outside diameter: 108mm- Number of gearbox-side teeth: 28
This product is sold individually.

Gearbox-sideinternal drive shaft for Volkswagen Golf 5
For VW Golf 5 Manual gearbox only :- 2.0 TDI 136hp (AZV)- 2.0 TDI 140hp (BMM, BKD)
Gearbox side (inside), right or left cardan shaft Outside diameter: 108mmNumber of gearbox-side teeth: 28

For Golf 1 Berline :
- 1.5, 1.6, 1.8 gasoline ->07/84
- Diesel & TD ->12/83

ForGolf1 Cabriolet :
- 1.6 with carburetor
- 1.8 with carburetor ->08/87
- 1.8 GLi ->07/84

For Golf 2 :
- 1.6 with carburetor ->10/91
- 1.6 Diesel & TD
- 1.8 with carburetor ->07/89

For Golf 1 cabriolet:
- 1.8 with carburettor 08/87->
- 1.8 GLi 08/84->

For Golf 2:
- 1.8 with carburettor 08/89->
- 1.8 GTi 8s, 16s and G60

For Golf 3:
- 1.8 monopoint
- 1.9 D / TD / TDi
- 2.0 GTi 8s and 16s

For Corrado:
- 1.8 16s and 2.0 16s 136hp (KR, 9A)
- 1.8 G60 160hp (PG)
- 2.0 115hp(2E, ADY)
- 2.9 VR6 190hp (ABV)
