PERTRONIX IGNITOR 2 distributor for Porsche 914-4 with carburettors (1970-1976) - centrifugal

Details about : PERTRONIX IGNITOR 2 distributor for Porsche 914-4 with carburettors (1970-1976) - centrifugal

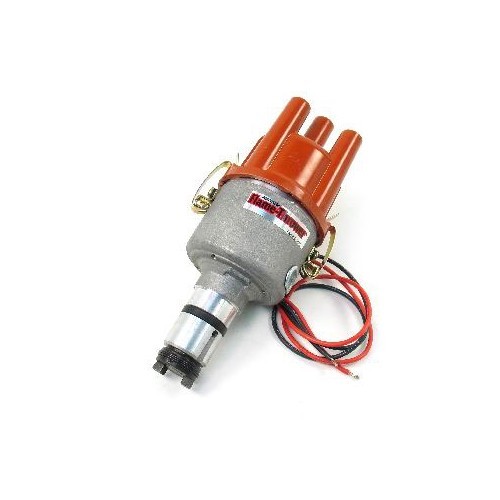

PERTRONIX FLAME-THROWER centrifugal distributor and with IGNITOR 2 electronic module for Porsche 914-4 converted to carburettors :

- 914-4 1.7 - 80 hp (022-W) from 1970 to 1973
- 914-4 1.7 - 80 hp (022-EA) from 1972 to 1973
- 914-4 1.7 - 72 hp (022-EB) from 1972 to 1973
- 914-4 1.8 - 85 hp (021-AN) from 1974 to 1976
- 914-4 1.8 - 76 hp (022-EC) from 1974 to 1976
- 914-4 2.0 - 95 hp (039-GA) from 1973 to 1974
- 914-4 2.0 - 100 hp (039-GB) from 1973 to 1976
- 914-4 2.0 - 88 hp (039-GC) from 1975 to 1976

He improves :
- torque and power
- the reliability of your ignition.
- the start
- slow motion
- the spark at the candle

Evolution of IGNITOR 1, IGNITOR 2 recognizes the starting phase and sends more voltage to the spark plugs, it embeds a microprocessor which manages the Dwell angle and passes more power from the coil between 2000 and 5000 t / min.

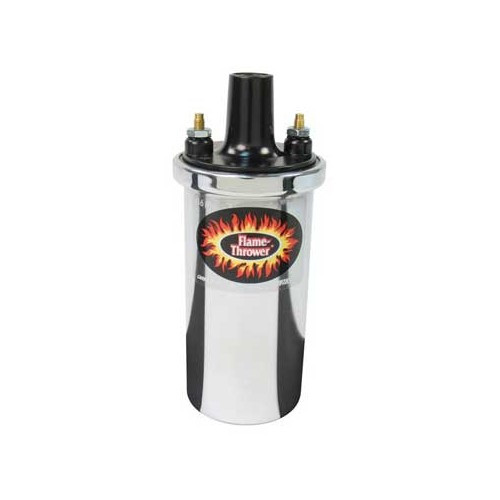

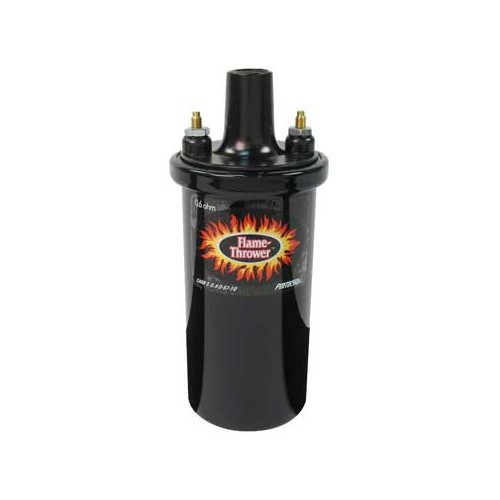

It can be used with a Flame-Thrower 2 coil at 45.000V (0.6 ohms) or 60.000V (0.45 ohms).
