Water cooler for BMW 3 Series E30 diesel - M21 engine manual gearbox with or without air conditioning

Details about : Water cooler for BMW 3 Series E30 diesel - M21 engine manual gearbox with or without air conditioning

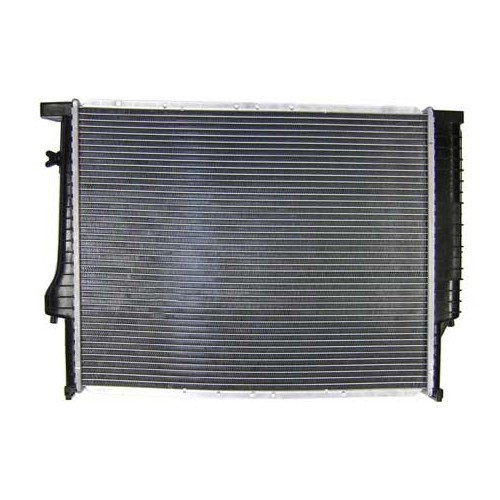

Aluminum coolant radiator for BMW 3 series E30 diesel at manual gearbox with or without air conditioning:

Sedan 4 doors :
- 324d 6cyl 86hp phase 1 from 04/1985 to 08/1987 (engine code M21D24)
- 324d 6cyl 86hp phase 2 from 09/1987 to 12/1990 (engine code M21D24)
- 324td 6cyl 115cv phase 2 from 02/1987 to 12/1990 (engine code M21D24)

Touring :
- 324td 6cyl 115hp from 01/1988 to 05/1993 (engine code M21D24)

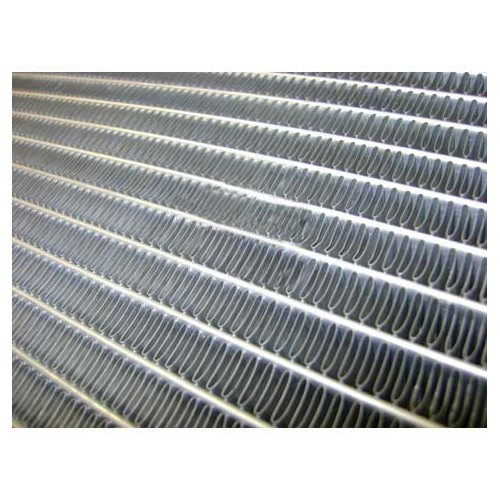

Water radiator with aluminum harness and plastic boxes

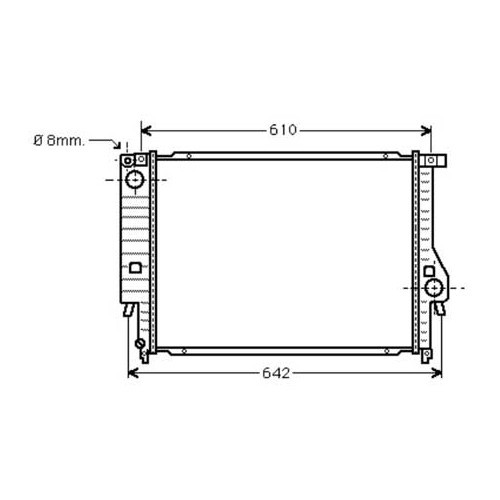

Harness dimensions (without boxes) : Height 440 mm x Width 555 mm x Thickness 33 mm
Inlet and outlet diameters: 40 mm

ATTENTION: Not suitable for automatic gearbox version!

Original reference:

17 11 2 241 912
