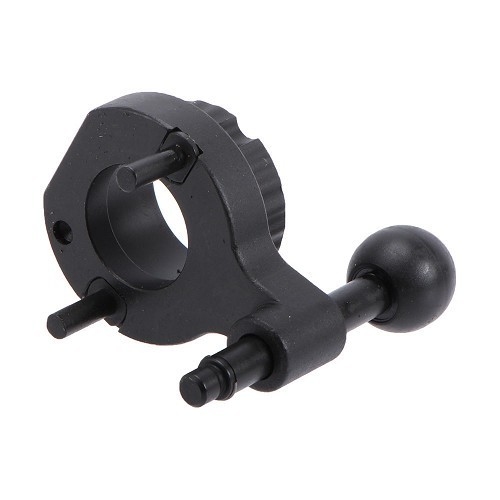

Crankshaft timing tool for VAG engines 1.4, 1.6, 2.0 TDI (EA288)

Details about : Crankshaft timing tool for VAG engines 1.4, 1.6, 2.0 TDI (EA288)

This tool is used to lock and set the crankshaft, when replacing the cylinder head gasket, etc.

Intended for TDI common rail engines from the following EA288 series:

1.4 TDI Audi A1
1.4 TDI Seat Ibiza, Toledo IV
1.4 TDI Skoda Fabia III, Rapid (2012)
1.4 TDIVW Polo V
1.6 TDI Audi A1, A3 8V, A4 B9, Q2
1.6 TDI Seat Leon III, Toledo IV, Ateca
1.6 TDI Skoda, Octavia III, Rapid (2012), Superb III, Karoq
1.6 TDI VW Beetle, Golf VII, Jetta VI, Tiguan, TouranII, T-Roc, Passat B8, CC, Scirocco III
2.0 TDI Audi A3 8V, A4 B9, Q2
2.0 TDI Seat Leon III, Ateca, Alhambra II
2.0 TDI Skoda Octavia III, Superb III, Kodiaq, Karoq
2.0 TDI VW Beetle, Golf VII, Jetta VI, Tiguan, Tiguan II, Touran II, T-Roc, Sharan II, Passat B8, CC, Scirocco III, Arteon, T6, Caddy, Crafter, Amarok

Original reference:

T10490
