Studs & screws

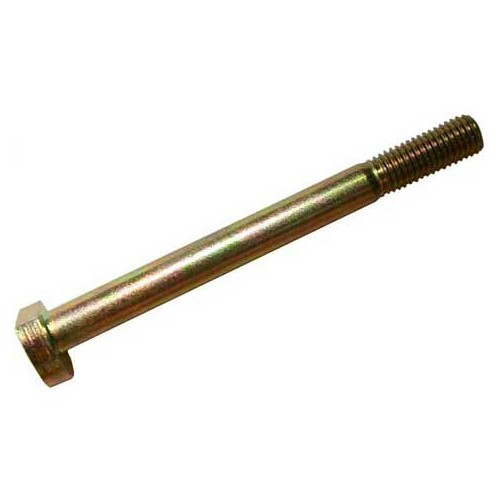

M10 x 110 mm screw for mounting the starting motor or engine
onto the gearbox (except semi-automatic gearbox).
Two required per car :
- VOLKSWAGEN Combi Split Brazil (1957-1975)

M10 x 82 mm screw for securing the engine to the gearbox at the bottom.
Sold individually, 2 required

For VW:
- Beetle
- Karmann-Ghia
- Buggy
- Type 3
- Trekker 181
- Split Window Camper
- Bay Window Camper

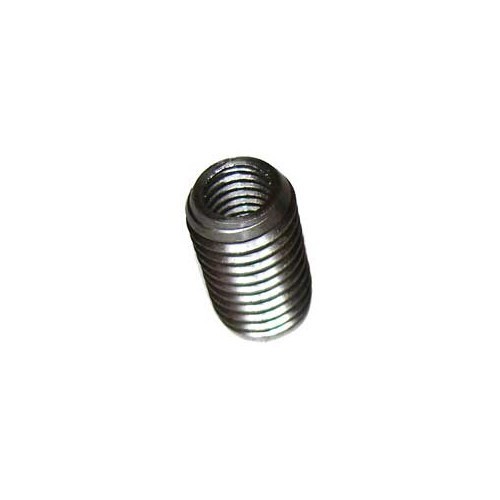

Inner diameter : 8 mm
Outside diameter : 12 mm

To repair the tired nets ofyour engine block
by installing new bolts diameter 8 mm

Inner diameter : 8 mm
Outside diameter : 12 mm

To repair the tired nets ofyour engine block
by installing new bolts diameter 8 mm

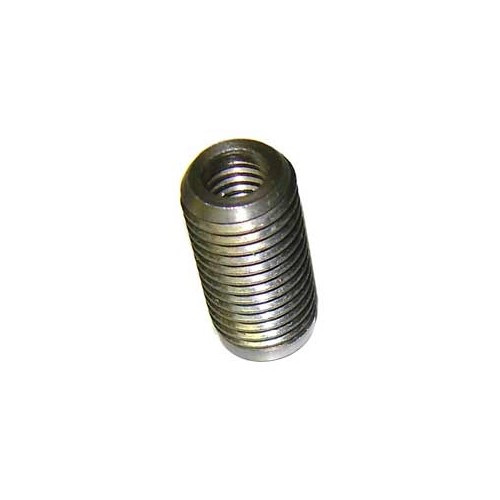

Interior: M10 x 1.5
Outside: M14 x 2
L = 2.3cm

To repair worn threads on your engine block by installing new 10 mm diameter studs
Requires re-boring of original thread to 14 mm.

Interior: M10 x 1.5
Outside: M14 x 2
L = 2.3cm

To repair worn threads on your engine block
by installing new 10 mm diameter studs
Requires re-boring of original thread to 14 mm.

M10 nut on 10 mm pin to fasten the cylinder head
for type 1, 2, 3, 4 engines.16 units required for one engine, sold per unit.

For:
- Beetle, 1200, 1300, 1500, 1600cc
- Karmann-Ghia, 1500, 1600cc
- Type 3, 1500, 1600cc
- Kübel 181, 1500, 1600cc
- Combi, 1500, 1600, 1700, 1800, 2000cc
- Transporter T25 / T3, 2000cc (CU)

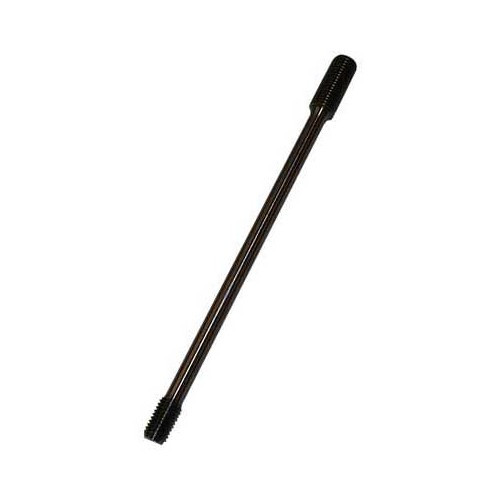

Cylinder head stud
Length: 222 mm
Diameter: M10 / M12
8 studs required per engine
sold individually.

For VW :
- Combi Bay Window, 08/1971 ->07/1979
Type 4 engines: 1700, 1800, 2000cc (8)
- Transporter T25 / T3, 05/1979 ->12/1982
Type 4 engines: 2000cc (8)

Housing stud M12 / M10 x 1.5 x 175 mm
Need 4 or 8 pieces depending on engine type.
Original VW, inspected and reconditioned.
Sold individually.

For VW :
- Bay Window Combi, 08/1971 ->07/1979
Type 4 engines: 1700, 1800, 2000cc (8)
- Transporter T25 / T3, 05/1979 ->12/1982
Type 4 engines: 2000cc (8)
Waterboxer engines: 1900, 2100cc (4)

Upper left-hand engine mounting bolt on the gearbox, size M10x88
For VW Bay Window Bus with type 4 engine
For VW Transporter T25/T3 with 1600 CT and Type 4 engines, also for flat, water-cooled engines
Sold individually
Original Volkswagen Classic Part

Box pin
Length: 185mm
Diameter: M10 / M12
3 pins required per engine
sold by unit.
Original Volkswagen Classic Parts.

For VW Transporter T25 / T3, Bus,
Multivan, Caravelle, Jocker, Syncro
with engines:
- 1900 (DG, DF, EY, SP)
- 2100 (DJ, MV, SR, SS)

Bottom fixing bolt for engine/gearbox
Left or right mounting.
Size: M10 x 97
Original VW Classic Part

For VW Bay Window Camper type 4 engine
For all VW Transporter T25/T3 Bus engines with manual gearbox.

Crankcase dowel for dual intake type 1 engine
Diameter: 8mm
Dimensions: M8 x 199mm - M8 x 202mm
Original Volkswagen Classic Parts.

For VW Beet le, Karmann-Ghia, Kombi, Type 3, Kübel 181.

Type 1 single-entry crankcase bolts and nuts (except for 1200 and foot-molded engines). Set of 16 studs, washers and nuts diameter 8 mm :
- 9 x M8 studs x 240 mm
- 7 x M8 x 204 mm studs

For VW Beetle, Karmann-Ghia, Combi, Type 3, 181

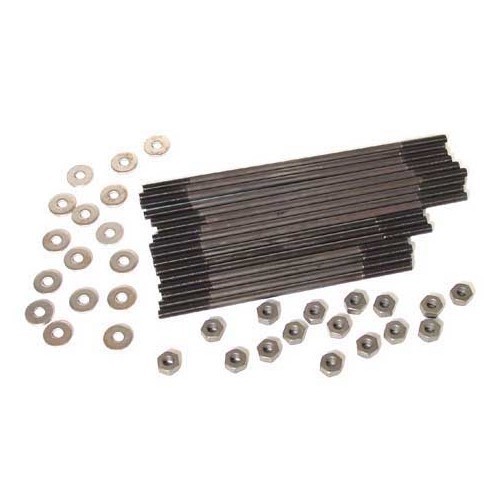

Bolts and nuts for type 1 dual-intake crankcase
Set of 16 studs, washers and nuts diameter 8 mm :
- 3 x studs M8 x 199 mm - M8 x 202 mm
- 4 x studs M8 x 183 mm - M8 x 186 mm
- 9 x studs M8 x 235 mm
- 16 x washers 8.4 x 21 x 4 mm
- 16 x M8 hex nuts

For VW Beetle, Karmann-Ghia, Combi, Type 3, Kübel 181.

Set of 6 M8x30 intakemanifold studs for Porsche 964 turbo and 965 turbo from 1991 to 1994:
- 964 3.3 - 320hp (M30.69) Turbo from 1991 to 1992- 965 3.6 - 360hp (M64.50) Turbo from 1993 to 1994
12 studs required per engine, i.e. 2 sets of 6

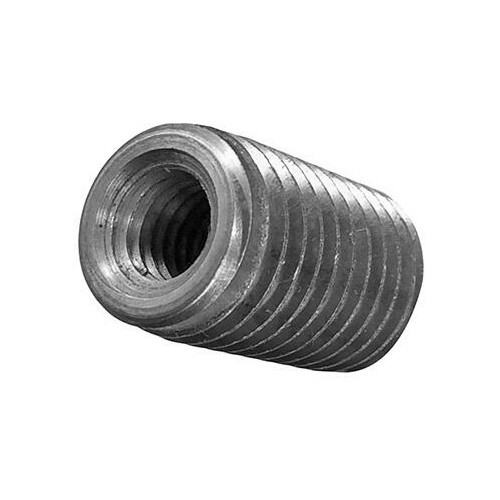

Interior: M10 x 1.5
Exterior: M16

Enables you to repair the tired threads in your engine block
by installing new 10 mm diameter studs
Requires you to re-bore the original thread to 16 mm.

Set of 16 M10 / M12 diametercylinder head studs for VW Transporter T25 / T3, Bus, Multivan, Caravelle, Jocker, Syncro with water-cooled engines :- 1.9 (DG, DF, EY, SP)- 2.1 (DJ, MV, SR, SS)
These motors are made up of 16 studs of 3 different lengths (222mm, 191mm and 175mm), so you need to order 8 studs of 222mm, 4 studs of 191mm and 4 studs of 175mm to assemble your motor.

Interior diameter : 8 mm
Exterior diameter : 14 mm

To repair the tired nets of your engine block by installing new bolts diameter 8 mm
It is necessary the original thread to 14mm.

Interior diameter : 8 mm
Exterior diameter : 14 mm

To repair the tired nets of your engine block
by installing new bolts diameter 8 mm
It is necessary the original thread to 14mm.
