Valve timing kit

These timing tools have been introduced specifically for the 2.5 TDi (99-08) engines fitted to Audi A4, A6, A8, Allroad and Volkswagen Passat, S4 Turbo, S6 V8 and Sharan TDi
OEM Codes 3242, 3458, 3369

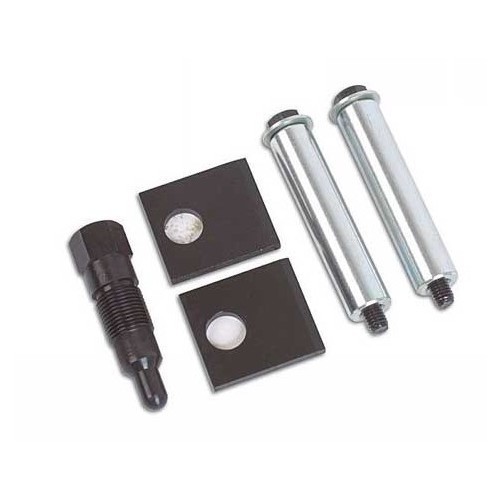

Includes Crankshaft Locking TDC screw, camshaft locking plates and support guides.
The support guides allows the front end to be slid forward giving greater access to the front of the engine.
The support guides allows the front end to be slid forward giving greater access to the front of the engine.
For other tools required go to www.lasertools.co.uk/toolpoint

Essential tools for VAG petrol and Diesel engines from 1996 - 2004
The kit also includes tools suitable for older models with 1.9 Diesel engines.
For correct identification of tool go to www.lasertools.co.uk/toolpoint
Supplied in modular packaging for use in roller cabinets
Supplied in modular packaging for use in roller cabinets
Full application list included

Vehicle types :

Citroën :

Models : AX / AX GTi / ZX / BX / C15
Types : 1.0 / 1.1 / 1.4
Engine codes : CDY / CDZ / C1A / HDY / HDZ / H1A / HDX / KDY / KDZ / KFY / KFZ / K1A / K1F / K1G / K2A / K2B / K2D / K3B / K6B / M4A
Years: 1986 to 1994

Models: BX 15 - 16 - 19 / Visa GTi / ZX
Types: 1.6 / 1.9
Engine codes: BAY / B1A/A / B1E / B1F / B4A / B6D / B6E / BDY / DDZ / DFZ / DKZ / D2A / D2E / D2C / D2F / D6A / D6D / D6E / 159A / 171B / 171C / 171D / 180D / 180Z
Years: 1982 to 1994

Model: Saxo 16V
Type: 1.6
Engine code: NFX
Year: 1997

Peugeot :

Models: 106 / 205 / 309 / 405
Types : 1.0 / 1.1 / 1.4
Engine codes: TU1 / TU2 / TU3 / TU9
Years: 1987 to 1994

Models: 205 / 305 / 309 / 405
Types: 1.6 / 1.9
Engine codes: XU5-171B / 180A / B1E / B6D / XU9-D2A/D / D6A / D6B
Years: 1984 to 1992

Models: 309 GTi 16 / 405 Mi 16
Type: 1.6
Engine code: X12XE
Years: 1987 to 1994

8-piece kit containing the necessary components to lock the crankshaft, the cam pulley and the fuel pump pulley in their timing position, to enable the removal and replacement of the timing belt.

Includes the tools required for common rail 1.6 and 2.0 TDI Diesel engines, post 2012.

Engine codes within the Audi, Seat, Skoda and Volkswagen ranges:

- 1.6 l: CLHA / CLHB / CKKA / CRKB

- 2.0 l: CKFB / CKFC / CRBC / CRBD / CRCC / CRFA / CRFC / CRLB / CRLC / CRMB / CRVA / CRVC / CSUA / CSUB / CUNA / CUPA / CKFB / CKFC

Dynamo / alternator pulley block tool for VW engine Type 1
Allows easy pulley removal without using a screwdriver.
This lug wrench fits pulley diameters of 99 and 108mm.

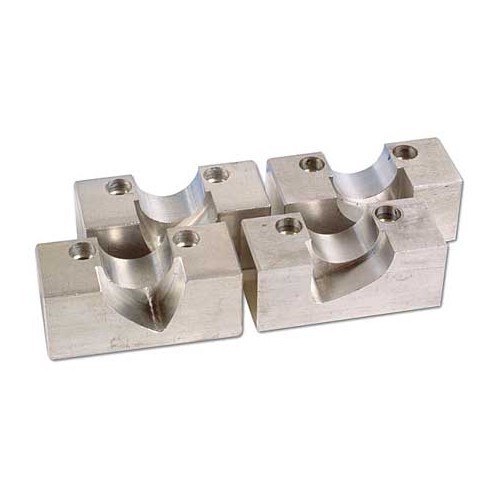

Engine locking tools with specifically machined profiles for locking the camshaft in the exact timing position
Inlet camshaft use A1 on No 1 cyl and A4 on No 6 cylinder
Exhaustuse A2 on No 1 cyl and A3 on No 4 cylinder
OEM Ref 1 825 040 000
OEMRef 1 825 040 000
Engine codes: 342.01, 343-01, 932A-000

Suitable for Alfa Romeo 145/146 1.8 & 2.0 Twin Spark (1996>) and 155/156/Spider/ GTV 2.0 16v (<1995).
Marked B1 for No 2 cyl (inlet)
Marked B2for No3 cyl (exhaust)
OEM Ref 1 825 041 000

Timing set for common rail diesel engines for Renault 2.0 DCi and CDTi.
For locking the camshaft and crankshaft during timing belt replacement or engine repair.

Vehicle types :

- Nissan Primaster (years 2008 - 2009), Qashqai (years 2008 - 2009), X-Trail (years 2007 - 2008) with engine code M9R 780, 830, 832, 833

- Renault Koleos (years 2008 - 2009), Laguna (years 2005 -2008), Megane (years 2007 - 2008), Scenic (years 2008 - 2009), Trafic (years 2007 - 2008), Vel Satis (years 2008 - 2009) with engine code M9R 700, 721, 724, 740, 742, 446, 760, 761, 780, 802,803,805, 830, 832, 833.

- Vauxhall, Opel Vivaro (years 2007 - 2008) with engine code M9R 780, 782, 784

A reduced kit offering twin camshaft engine timing components without the Vanos locking tools
Crankshaft Locking Pin OEM Ref 11 2 300.
Camshaft clamp assembly OEM Ref 11 3 24.
For chain driven engines.

Ideal for locking camshafts and crankshafts when removing or fitting the timing chain on Opel and Vauxhall models.

Engine codes:

- 1.0 L => A10XEP (LDB)
- 1.2 L => A12XEL (LWD), A12XER (LDC)
- 1.4 L => A14XEL (L2Z), A14XER (LDD), LDU
- 1.4 L (T) => engines A14NEL (LUH), A14NET (LUJ), Twinport / ecoFLEX

Applications: Adam, Ampera, Astra-J, Aveo, Corsa-D, Insignes, Meriva-B, Mokka, Zafira-C Tourer

Contents:

- crankshaft locking pin
- camshaft adjustment plate
- tool to adjust the VVT sensor for 1.0L engines
- tool to adjust the VVT sensor for 1.2 and 1.4 L engines
- tool to hold the camshaft pinion
- tensioner locking pin (2 pieces)

Timing setting tools for Volkswagen Audi and Seat TDI from 2007.

Engine types: 1.6 and 2.0 TDI

Vehicle types:

- Audi
A3: 1.6 TDI (from 2009) Engine code CAYB/CAYC
A3, A4, A6, Q5: 2.0 TDI (from 2007) Engine code CBAB/CBBB/CBAA/CFFB/CAGA/CAHA/CAGB/CAHB/CAGC

- Volkswagen:
Golf, Golf Plus: 1.6 TDI (from 2009) Engine code CAYB/CAYC
Tiguan, Passat, Eos, Golf, Golf Plus: 2.0 TDI (from 2008) Engine code FCA/CAAA/CAAB/CAAC/CCHA/CAVA/CBAB/CBDA/CBDD/CBBB/CBAA/CBAC/CBDA/CBDC

- Seat:
Exeo: 2.0 TDI (from 2009) Engine code CAGA/CAHA/CAGA

911 Carrera 4S 3.6 (2002), 996 3.4 (2002), Boxster 2.5 (1998), Boxster 2.7 (2000) Boxster 3.2 (2000)
With chassis 986, 987, 996,997
Supplied in storage case
OEM Refs: 9595, 9612, 9611,9634, 9608, 9602
Chain driven engines

Camshaft timing tools for Volkswagen, Audi, Seat and Skoda

Engine types: 1.9 TDi and SDi

Vehicle types: Beetle, Bora , Caddy, Golf, Polo

Engine codes: AGP / AGR / AHF / ALH / AQM / ASV / AYQ (1997-2005)

Original reference: 3418 - T20038

Timing kit enabling the adjustment and correction of the timing of the intake camshaft. This set of tools is required for Porsche Cayenne / Panamera models dated after 2008.

Contents:

- Camshaft gauge for Panamera / Cayenne after 2008 => OEM 9678/1
- Camshaft gauge for Cayenne => OEM 9678
- Auxiliary chain tensioner for Cayenne after 2008 => OEM 9683/1
- 27 mm, 3/8" socket => OEM 9714
- Crankshaft alignment tool => OEM 9595/1

This timing tool kit for Porsche 2.5 / 2.8 / 3.0 / 3.2 L TFSi and FSi is ideal to adjust the timing when changing the cylinder head gasket, camshafts, etc.

It is compatible with a Porsche Cayenne S Hybrid (2010-2014), Panamera (2011-2013).

These tools are equivalent to the OEM references T40133/1/2, T40058, T40069, T40071

For Alfa Romeo 147 1.6 105bhp (2001-2010).
Used to hold the camshaft in place on the inline 4 cyl 1.6 twin spark engines..
Marked L1 for No 2 cyl (inlet) Marked L2 for No 3 cylinder (exhaust).
OEM Ref 1 870 797 000.

Applications 1.4 belt driven PSA engines 16v and 8v petrol ET3 engines
Also fits 106 1.1 2001 TU1JP (HFX)
Includes: Camshaft locking Pin C089, Camshaft/Crankshaft Locking Pin C101, M10 x 70mm Locking Pin C039, 6mm locking pin C038, flywheel locking pin with long angled shaft for access C560 and timing belt retaining clip C121
Supplied with instructions
Application list included

For Audi A3, A4 |A6 | S3 | TT 2.0 (2003-2010).
Includes camshaft alignment tool, tensioner wrench and pin.
Sold in foam tray with modular packaging.
Available also in metal storage case (Part No 4536).
Available also in metal storage case (Part No 4536).
Applications and guidance notes included.

Application : Alfa Romeo 147 1.6 120bhp
Camshaft alignment block
Marked M1 for No 2 cylinder (inlet)
Marked M2 for No 3 cylinder (exhaust)
Marked M2 for No 3 cylinder (exhaust)
OEM 1 870 734 000

Applications: 1.4/1.6FSi
Also 1.4 TSi and 1.2TFSi/FSi engines
Upgraded version of existing kit 5021
OEM Cross reference and instructions provided
