Fan

Suction-fan model that goes behind the radiator.
- Outside diameter: 336 mm
- Blade diameter: 305 mm
- Thickness: 52 mm
- Air flow rate: 1470 m3/h
Weight: 1100 g
- 12V
- Specially designed for competition
- Smaller footprint

Suction-fan model that goes behind the radiator.
- Outside diameter: 336 mm
- Blade diameter: 305 mm
- Thickness: 63 mm
- Air flow rate: 1860 m3/h
Weight: 1150 g
- 12V
- Specially designed for competition
- Smaller footprint

Suction-fan model that goes behind the radiator.
- Outside diameter: 360 mm
- Blade diameter: 330 mm
- Thickness: 63 mm
- Air flow rate: 1980 m3/h
Weight: 1510 g
- 12V
- Specially designed for competition
- Smaller footprint

SPAL Italy performance fan, blower model
- Position: fan in front of radiator
- Outside diameter: 336 mm
- Blade diameter: 305 mm
- Thickness: 52 mm
- Air flow: 1450 m3/h
-Weight: 1100gr
- 12V
- Specially designed for competition
- Small footprint

Blower-fan model that goes in front of the radiator.
- Outside diameter: 360 mm
- Blade diameter: 330 mm
- Thickness: 52 mm
- Air flow rate: 1680 m3/h
Weight: 1120 g
- 12V
- Specially designed for competition
- Smaller footprint

Blower-fan model that goes in front of the radiator.
- Outside diameter: 360 mm
- Blade diameter: 330 mm
- Thickness: 63 mm
- Air flow rate: 2010 m3/h
Weight: 1510 g
- 12V
- Specially designed for competition
- Smaller footprint

Blower-fan model that goes in front of the radiator.
- Outside diameter: 382 mm
- Blade diameter: 350 mm
- Thickness: 63 mm
- Air flow rate: 2140 m3/h
Weight: 1690 g
- 12V
- Specially designed for competition
- Smaller footprint

Suction model - fan behind the radiator.
- External diameter: 310 mm
- Blade diameter: 280 mm
- Thickness: 52 mm
- Air flow: 1430 m3/h
- Weight: 1100 g
- 12V
- Specially designed for competition use
- Saves space

SPAL thermocontact for fan. This thermoswitch triggers the fan at a desired temperature.

Technical details :
Triggering temperature: 87°C
Switch-off temperature: 82°C
Thread: M14 x 150

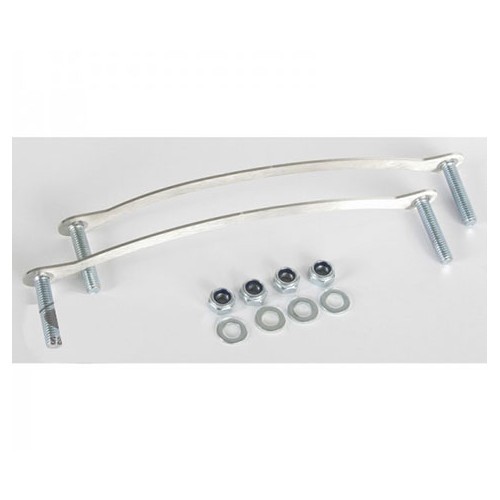

For a SPAL fan
Blade diameter: 225 mm

For a SPAL fan
Blade diameter: 280 mm

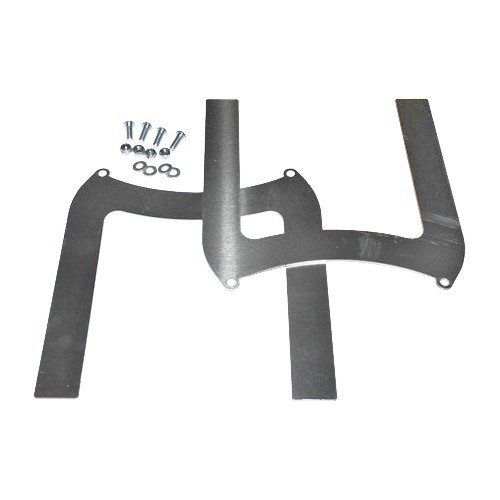

Aluminium fittings
Thickness: 2 mm
Sold in pairs with screws and bolts

SPAL fan thermocontact . This thermocontact triggers the fan at a set temperature.
Triggering temperature: 95°CSwitch-off temperature: 90°CThread: M14 x 150

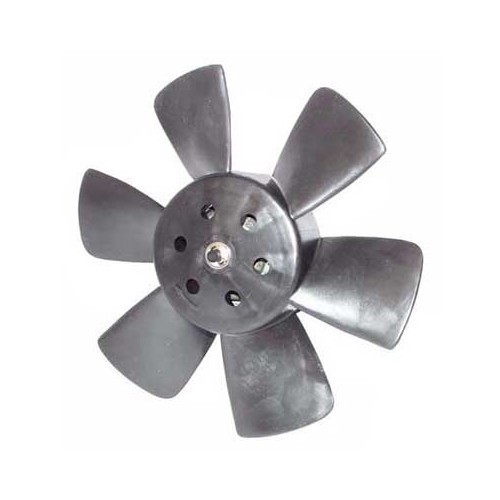

For Polo 2 and 3:
- 1.3/1.3 G40/1.3D

Strength 250W / 150W
3-pin connector

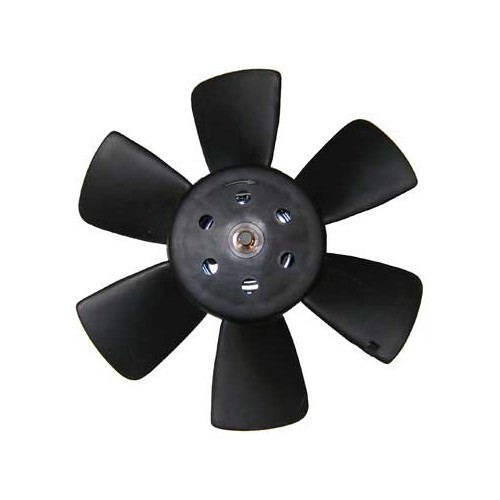

Suitable for :
- Golf 1 & Jetta 1 since 81->
- Golf 2 & Jetta 2 without air conditioning

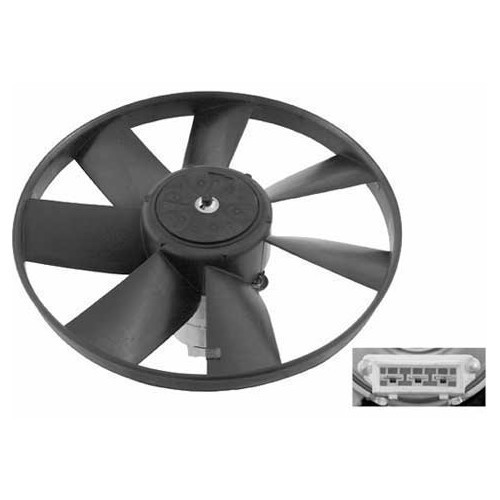

For Audi 80 from 78 ->86 and Coupé from 80 ->88:
- 1.3 60 hp (EP)
- 1.6 75 hp and 85 hp (WV, YN, DT, YP)
- 1.6 110 hp (YZ)
- 1.8 90 hp, 110 hp, 112 hp (PV, DZ, DS, JN, NE)

For A3 (8L) with air conditioning:
- All versions except APP and AJQ engines

For TT (8N) with manual gearbox:
- All 1.8 Turbo engines

For A3 (8L):
- 1.6 101 hp and 102 hp (AKL, AVU, BFQ, AEH, APF)
- 1.8 125 hp (AGN, APG)
- 1.8 150 hp Turbo (AGU, AQA, ARX, ARZ, AUM)
- 1.8 180 hp Turbo (ARY, AUQ)
- 1.9 TDi 90 hp and 100 hp (AGR, ALH, ATD, AXR)
- 1.9 TDi 110 hp (AHF, ASV)

For Audi TT (8N) :
- 1.8T 150cv (AUM)
- 1.8T 180cv (AJQ, APP, AUQ, ARY)
- 1.8T 225cv (APX, BAM)

Suitable for Audi:
- A4 (B6) from 2001 -> 2005
- A6 (C5) from 2002 -> 2005

Important: there are various assemblies depending on the model, check your vehicle before placing your order.
You will need to use the connection plug on your fan
