Brake master cylinder

For A3 (8P) including Sportback:
- 1.4 TFSi 125hp (CAXC)
- 1.6 FSi 115hp (BAG, BLP)
- 1.8 TFSi 160hp (BYT, BZB)
- 2.0 TDi 136hp (AZV)
- 2.0 TDi 140hp (BMM, CBAB)
- 2.0 FSi 136hp (AXW/BLX/BLY/BMB/BLR/BVY/BVZ)
- 2.0 TFSi 200hp (AXX, CAWB)
- 3.2 V6 250hp (BDB, BMJ, BUB)
- S3 Quattro 256hp (BZC)

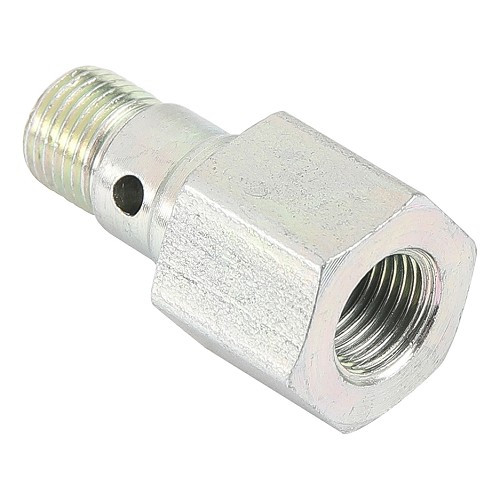

Double-circuit brake master cylinder banjo bolts for Porsche 914 from 1970 to 1976 :
- 914-4 1.7 - 80 hp (022-W) from 1970 to 1973- 914-4 1.7 - 80 hp (022-EA) from 1972 to 1973- 914-4 1.7 - 72 hp (022-EB) from 1972 to 1973- 914-4 1.8 - 85 hp (021-AN) from 1974 to 1976- 914-4 1.8 - 76 hp (022-EC) from 1974 to 1976- 914-4 2.0 - 95 hp (039-GA) from 1973 to 1974- 914-4 2.0 - 100 hp (039-GB) from 1973 to 1976- 914-4 2.0 - 88 hp (039-GC) from 1975 to 1976- 914-6 2.0 - 110 hp (901.36/37/38/39) from 1970 to 1972

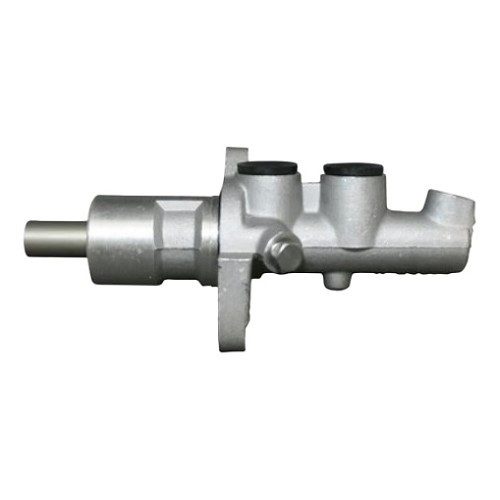

Jp Group brake master cylinder for Mercedes-Benz 190:
Mercedes Benz W201 :
- 2.0 201.022 from 10.1982 to 10.1984, 1996 ccm 90 hp- 2.0 201.023 from 01.1986 to 05.1990, 1996 ccm 102 hp- 2.0 201.023 from 08.1983 to 05.1990, 1996 ccm 105 cv- 2.3 from 09.1987 to 09.1988, 2299 ccm 132 hp- E 2.3 from 10.1982 to 09.1988, 2299 ccm 136 hp- D 2.0 201.122 from 08.1983 to 08.1989, 1997 ccm 72 hp- D 2.0 201.122 from 08.1989 to 08.1993, 1997 ccm 75 hp- D 2.5 201.126 from 04.1985 to 08.1993, 2497 ccm 90 hp- D 2.5 201.126 from 08.1989 to 08.1993, 2497 ccm 94 hp- E 1.8 201.018 from 04.1990 to 08.1993, 1797 ccm 109 hp- E 2.0 from 01.1985 to 08.1993, 1996 ccm 118 hp- E 2.0 from 10.1982 to 06.1993, 1996 ccm 126 hp- E 2.0 201.024 from 02.1985 to 12.1986, 1996 ccm 113 hp- E 2.0 201.024 from 02.1985 to 12.1986, 1996 ccm 116 hp- E 2.0 201.024 from 10.1982 to 06.1993, 1996 ccm 122 hp- E 2.3 from 09.1986 to 08.1991, 2298 ccm 132 hp- E 2.3 201.028 from 10.1986 to 08.1993, 2298 ccm 136 hp- Turbo-D 2.5 201.128 from 02.1988 to 08.1993, 2497 ccm 122 hp- Turbo-D 2.5 201.128 from 02.1988 to 08.1993, 2497 ccm 126 hp

ATE Brake Master Cylinder for Porsche 928 :

- 928 from 1978 to 1982
- 928 S - 300 hp from 1980 to 1983

Diameter : 23.81 mm
Thread : M10x1

Complete CSP mounting kit for large-diameter CSP master cylinder.
Includes brake stiffener, spacer plate, bellows, fittings and fasteners.

- For VW Beetle (except 1302 / 1303 and 1200 Mexico), Karmann-Ghia and 181

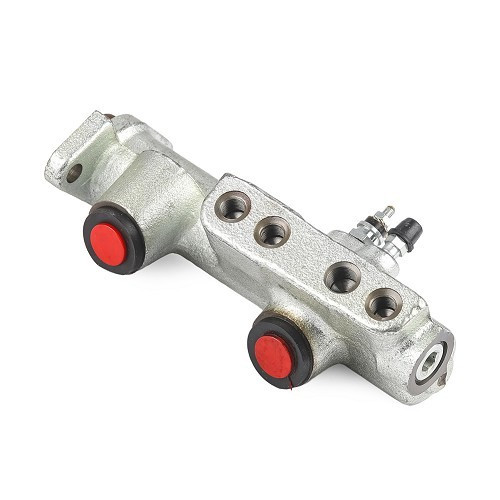

Tandem brake master cylinder for Renault 5

For Renault 5 :
- Renault 5 L (R1220) from 01/1972 to 12/1976 - Billancourt 782cm3 36hp (839-01)
- Renault 5 L (R1221/R1391) from 01/1977 to 12/1983 - Billancourt 845cm3 38hp (800-710)
- Renault 5 TL (R1222/R1392) from 01/1972 to 12/1984 - Cléon Fonte 956cm3 46hp (689-710)

This four-outlet tandem master cylinder for the R5 was a transitional model until the appearance of the three-outlet double master cylinder. It incorporates probe and bleed screw.

The list of compatible models is given for information only. Remember to check your braking system to identify the original assembly (Bendix or Girling) and compare the shape and dimensions of your master cylinder.

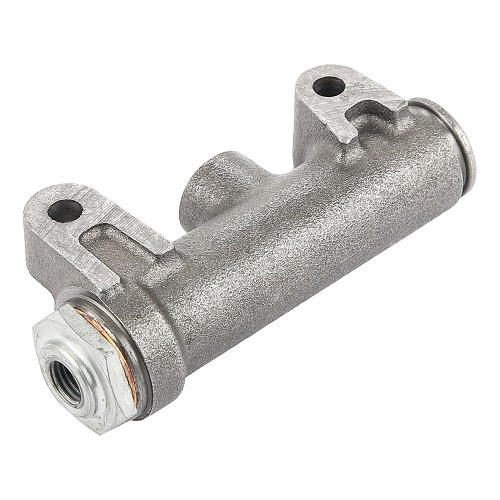

LPR 19.05mm - 1 outletbrake master cylinder for Fiat 600 (1955-1969)
Features :1 outlet M12x1.5mm
Sold individually
For models listed below:- Fiat 600 1st series from 03/1955 to 02/1957- Fiat 600 D from 09/1960 to 12/1969
Please check compatibility with your old part before ordering.

This LPR brake master cylinder double circuit without valve Bendix type for Renault 4 (10/1976-07/1986) - 20,64mm is European made.
This LPR master cylinder for R4 with 20.6mm piston is double circuit without valve. It appeared in October 1976 It has 4 outlets and integrates probe and bleed screw.
Compatible models:
Renault 4 :- R4 type R1123 : 07/1982 to 05/1986- R4 TL type R1126 : 10/1976 to 07/1982- R4 5CV van type R2106 : 07/1982 to 07/1986- R4 4CV F4 van type R2109 : 10/1976 to 07/1982- R4 F6 extended van type R2370 : 07/1982 to 11/1985- R4 F4 van type R2391 : 10/1976 to 05/1986- R4 4CV glazed van F4 type R2392 : 10/1976 to 05/1986
Renault 5 :- Renault 5 L R1221/R1391 08/1979 to 12/1983 Billancourt 845cm3 38hp (800-710)
Renault 6 :- Renault 6 type 1181 (10/76-04/87) 1108cm3, 45hp
RODEO 6- RODEO 6 (10/76-10/79) 1108cm3, 45hp

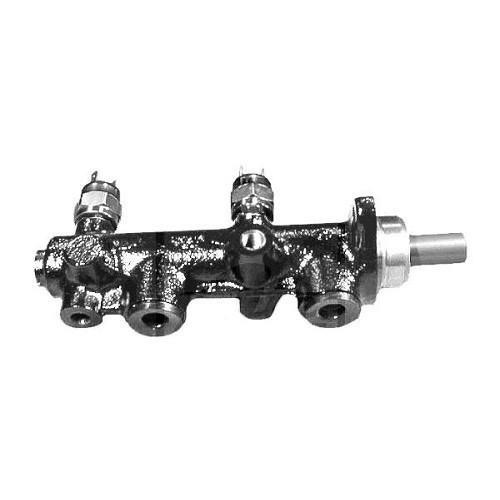

ATE brake master cylinder for Porsche 924 Turbo produced in 1979 (chassis 92494) :

- 924 2.0 Turbo - 170 hp (M31.01) of 1979

Diameter : 23.81 mm
Thread : M10x1

The master cylinder is responsible for converting the pressure exerted on the brake pedal into hydraulic pressure that acts on the wheel brakes. In other words, it's the central element that "pushes" brake fluid through the lines and wheel cylinders to actuate the brakes.
This single-circuitmaster cylinder for compensatorreservoir screw-onmaster cylinder in ATE quality is suitable for VW Beetle Split up to 12/1953 and VW Combi Split up to 07/1966.
Diameter: 22.2 mm

This double circuit brake master cylinder for Renault 4 (10/1976-07/1982) - 20.64mm is true to the original.

This master cylinder for R4 with 20.6mm piston is double circuit. It has 3 outlets and incorporates a valve. It was used as a transitional model before the arrival of disc brakes in 1982 on R4s with Cleon engines.

Compatible models:

- R4 GTL type R1128 : 10/1977 to 07/1982

- R4 Extended van F6 type R2370 : 10/1976 to 06/1982
- R4 F6 Pick up type 3C2370 : 07/1978 to 06/1982
- R4 Long glass van R2430 : 10/1976 to 06/1982

Dual-circuit master cylinder designed to complement a CSP disc brake kit. Diameter: 20.64 mm
For VW Combi Split from 03/1955 to 08/1967 and chassis n° 20-117 902 to n° 217 148 459.

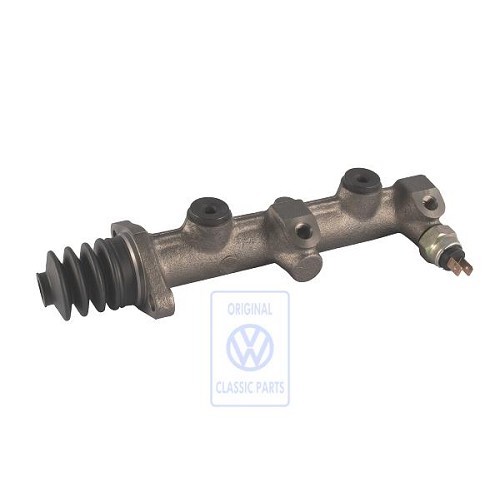

Master cylinder 20.64 mm mounting without brake booster
Original German quality ATE/FTE
Comes with the inlet seals.

For Combi Bay Window, 08/1970 ->07/1979
since chassis no. 211 2000 001->

Tandem brake master cylinder for VW LT with ABS from 1996 to 2006.
Suitable for all versions and engines up to LT35.

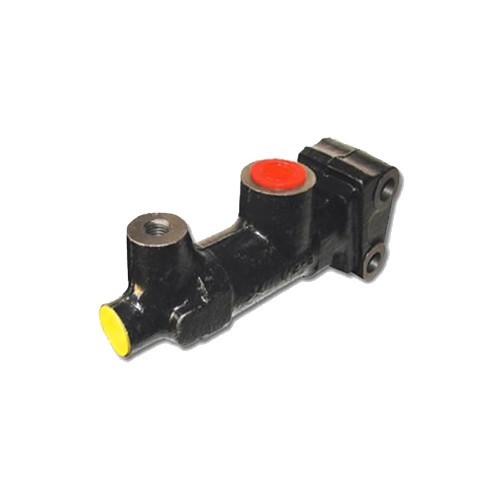

This single jar master cylinder for AMI 6 (12/1963-02/1969) - 20.6mm is a quality reproduction.

This master cylinder for AMI 6was fitted over a very short period of time on early 2CV4s, some vans, early Dyanes and Meharis and some AMI6s.

The connection to the front brakes is still done by a flexible hose in M12

Check the compatibility by measuring the diameter of the piston and the threads of your original master cylinder.

Compatible models:

- AMI 6 Sedan type AM/AM2: 12/1963 to 03/1969
- AMI 6 Break type AMB/AMB2: 10/1964 to 09/1969

Warning!!! Your vehicle may have been modified, check the wheel cylinder diameter and the wrench needed to tighten the brake hose ends.
Only use DOT 4 or DOT 5 brake fluid.
LHM fluid is very corrosive to parts not intended for its use, Using the wrong brake fluid could severely damage your brake system.

Tandem master cylinder,

For Octavia (1Z) :
- All models with left-hand steering
(except models with RS equipment)

This single jar master cylinder for 2cv 4 (02/1970-06/1970) - 20.6mm is a quality reproduction.

This master cylinder for 2CV 4was fitted over a very short period of time on the first 2CV4s, a few vans, the first Dyanes and Meharis and some AMI6s and AMI8s.

The connection to the front brakes is still done by a flexible hose in M12

Check the compatibility by measuring the diameter of the piston and the threads of your original master cylinder.

Compatible models:

- 2CV 4 type AZ KB/A2: 02/1970 to 06/1970

Attention!!! Your vehicle may have been modified, check the diameter of the wheel cylinder and the wrench needed to tighten the brake hose ends.
Only use DOT 4 or DOT 5 brake fluid.
LHM fluid is very corrosive to parts not intended for its use, Using the wrong brake fluid could severely damage your brake system.

Master cylinder for Mazda MX-5 NB

For NB 1.6L and 1.8L with ABS
Not suitable for NBFL (2000-2005)

New quality adaptable part

Comes with tank, cap and level sensor

This Tandem brake master cylinder for Renault 4 (07/1982-12/1992) - 19,05mm is faithful to the original.

This tandem master cylinder for R4 with four outlets was a transitional model until the appearance of the double master cylinder with three outlets.

It integrates probe and bleed screw.

Compatible models:

- R4 GTL type R1128: 07/1982 to 07/1983 until #461100
- R4 Savane type R112C: 09/1986 to 12/1992

- R4 Extended Van F6 type R2370: 07/1982 to 07/1983
- R4 F6 Pick up type 3C2370: 07/1982 to 07/1983
- R4 F4 type R210B: 07/1982 to 07/1983
- R4 F4 station wagon type 239B: 07/1982 to 07/1983

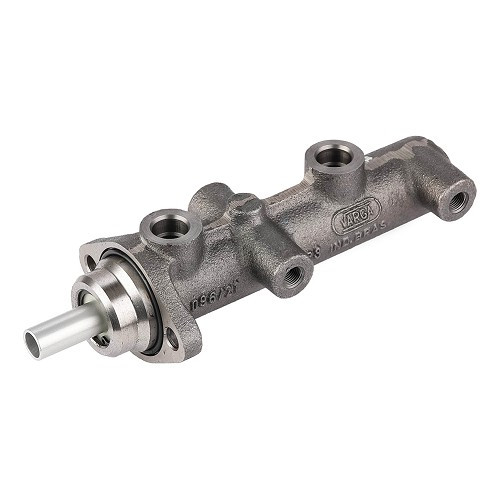

Master cylinder 20.64 mm mounting without brake booster
Comes with the inlet seals.

For Combi Bay Window, 08/1970 ->07/1979
since chassis no. 211 2000 001->
