Transmission coupling

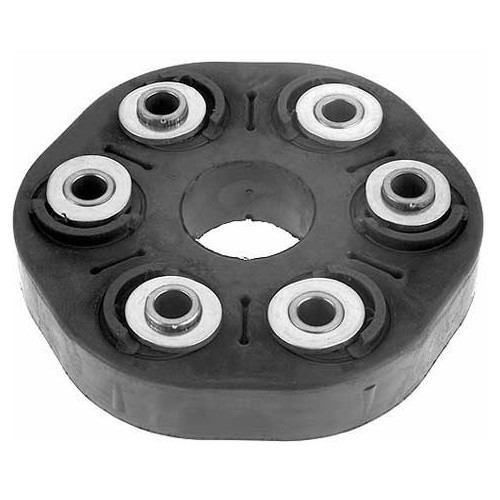

MEYLE HD series 140mm front driveshaft Flector for BMW 3 series E90LCI Sedan, E91LCI Touring and E92LCI Coupé :

E90LCI Sedan :
- 330dxDrive 245hp from 07/2007 to 10/2011 (engine code N57D30OL) --> manual gearbox

E91LCI Touring :
- 330dxDrive 245hp from 07/2007 to 05/2012 (engine code N57D30OL) --> manual gearbox

E92LCI Coupé :
- 330dxDrive 245hp from 02/2010 to 06/2013 (engine code N57D30OL) --> manual gearbox

Dimensions :
- Number of holes: 6
- Hole diameter : M10
- Outside diameter: 140mm
- Mounting center distance: 105mm

This flector is mounted in the front position between the gearbox and the drive shaft.

6 M10X1.5-10 ZNS3 screws and 6 M10-10-ZNS3 self-locking hex nuts required to mount the flector are supplied.

This product is sold individually.

This part offers optimized quality compared to the original, with design flaws corrected and greater strength for improved durability and roadholding.

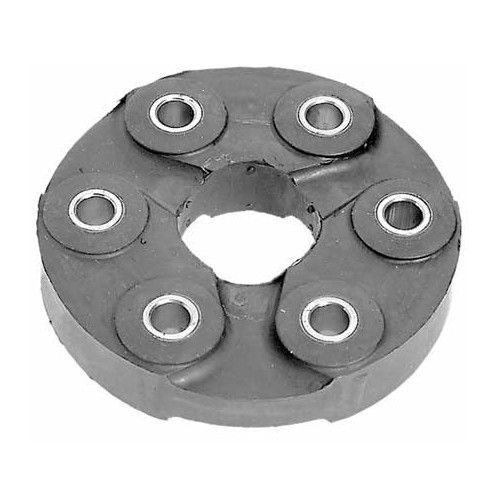

Reinforced 132mm MEYLE HD transmission selector, located between gearbox output and driveshaft, for BMW 5 Series E60, E60LCI Sedan and E61, E61LCI Touring with manual and automatic gearbox:

E60 Sedan :
- 520i 2.2L 170hp from 02/2002 to 02/2005 (engine code M54B22)
- 523i 2.5L 177hp from 07/2004 to 02/2007 (engine code N52B25)
- 525i 192hp from 01/2002 to 02/2007 (engine code M54B25)
- 525i 218hp from 07/2004 to 02/2007 (engine code N52B25OL)
- 530i 231hp from 12/2001 to 02/2005 (engine code M54B30)
- 530i 258hp from 07/2004 to 02/2007 (engine code N52B30)
- 520d 4cyl 163hp from 02/2005 to 02/2007 (engine code M47D20TU2)

E60LCI Sedan :
- 520i 170hp from 04/2006 to 12/2009 (engine code N43B20O1) --> automatic gearbox only
- 523i 2.5L 177hp from 11/2005 to 12/2009 (engine code N52B25TU)
- 523i 2.5L 190hp from 11/2005 to 12/2009 (engine code N53B25)
- 525i 218hp from 09/2006 to 12/2009 (engine code N52B25OL)
- 525i 3.0L 218hp from 11/2005 to 12/2009 (engine code N53B30UL)
- 530i 272hp from 11/2005 to 12/2009 (engine code N53B30OL)
- 520d 4cyl 177hp from 11/2006 to 02/2008 (engine code M47D20TU2)
- 520d 4cyl 177hp from 04/2006 to 12/2009 (engine code N47D20)

E61 Touring :
- 523i 2.5L 177hp from 10/2004 to 02/2007 (engine code N52B25)
- 525i 192hp from 10/2002 to 02/2005 (engine code M54B25)
- 525i 218hp from 07/2004 to 02/2007 (engine code N52B25)
- 530i 258hp from 07/2004 to 02/2007 (engine code N52B30)
- 520d 4cyl 163hp from 04/2005 to 02/2007 (engine code M47D20TU2)

E61LCI Touring :
- 520i 170hp from 04/2006 to 05/2010 (engine code N43B20O1) --> automatic gearbox only
- 523i 2.5L 190hp from 11/2005 to 05/2010 (engine code N53B25)
- 525i 218hp from 12/2005 to 03/2010 (engine code N52B25)
- 525i 3.0L 218hp from 11/2005 to 05/2010 (engine code N53B30)
- 530i 258hp from 11/2005 to 03/2010 (engine code N52B30)
- 530i 272hp from 11/2005 to 04/2010 (engine code N53B30)
- 520d 4cyl 177hp from 05/2006 to 02/2008 (engine code M47D20TU2)
- 520d 4cyl 177hp from 04/2006 to 05/2010 (engine code N47D20)

Screws and bolts not included.

Dimensions :
- Mounting centres: 96mm (6 holes)
- Outside diameter: 132mm
- Thickness: 32mm

This bearing offers optimized quality compared to the original, with design flaws corrected and greater strength for improved durability and roadholding.

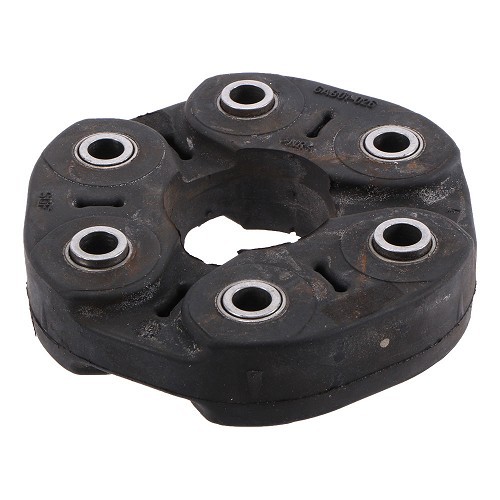

MEYLE HD range 110mm reinforced transmission selector, located in front of the driveshaft, for BMW 02 E10 series:

- 1502 1.6l 75hp phase 2 from 11/1974 to 07/1977 (engine code M116)

ATTENTION: We advise you to check your flector before ordering, as an alternative 76mm mounting center distance exists!

Screws and bolts included (6 M10X50-10.9 screws and 6 M10 self-locking hex nuts).

Dimensions :
- Mounting centers: 78mm (6 holes)
- Outside diameter: 110mm
- Inside diameter: 40mm
- Thickness: 28mm

This bearing offers optimized quality compared to the original, with design flaws corrected and greater strength for improved durability and roadholding.

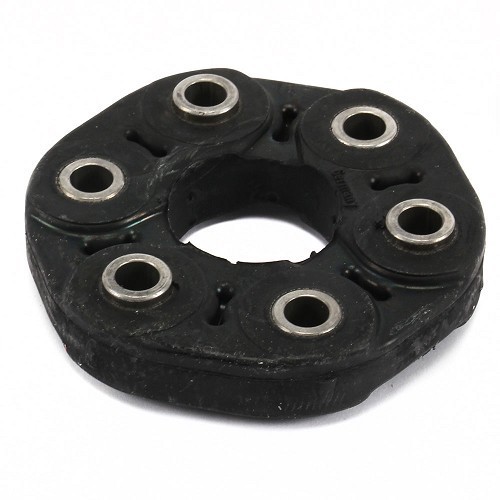

For Saloon

Located between the gearbox outlet and the driveshaft for those in the 'front' position, or between the drive shaft and the rear drive axle for those in the 'rear' position
Some models with a double flex disc have the same at the front and rear

For E90 LCI & E91 LCI:
- 320 d N47 & N47N with manual transmission (front + rear position)
- 325 d M57N2 with automatic transmission (front + rear position)
- 325 d N57 with automatic transmission from 10/10-> (front position)
- 330 d N57 with automatic transmission from 10/10-> (front position)
- 330 xd N57 with automatic transmission from 09/07-> (rear position)
- 335 d M57N2 (front position)
- 335 i N54 (front position)
- 335 i N55 with manual transmission (front position)
- 335 i N55 with automatic transmission from 03/08-> (front position)

For E92 LCI & E93 LCI:
- 320 d N47N with manual transmission (front + rear position)
- 325 d N57 with automatic transmission from 10/10-> (front position)
- 330 d N57 with automatic transmission from 10/10-> (front position)
- 330 xd N57 E92 with automatic transmission from 09/07-> (rear position)
- 335 d M57N2 E92 only (front positions)
- 335 i N55 (front position)

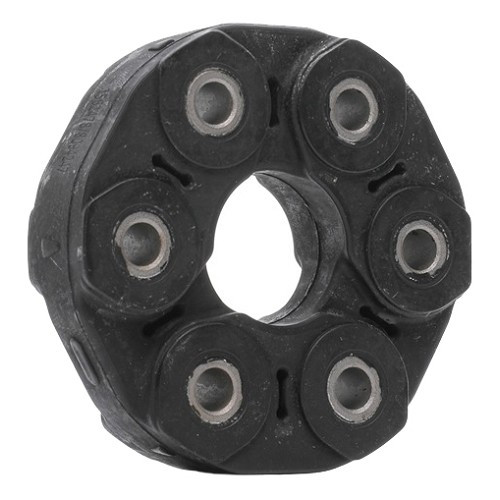

RIdex transmission selector for Bmw 3 Series :
Bmw 3 Series E36 Sedan :
- 316i 4cyl 100hp from 12/1990 to 08/1992 (engine code M40B16) --> manual gearbox- 316i 4cyl 100hp from 12/1991 to 02/1994 (engine code M40B16) --> automatic gearbox- 316i 4cyl 102hp from 02/1993 to 09/1998 (engine code M43B16) --> automatic gearbox- 318i 4cyl 113hp from 12/1989 to 08/1992 (engine code M40B18) --> manual gearbox- 318i 4cyl 113hp from 12/1991 to 03/1994 (engine code M40B18) --> automatic gearbox- 318i 4cyl 116hp from 02/1993 to 06/1998 (engine code M43B18) --> automatic gearbox- 318is 4cyl 140hp from 05/1993 to 01/1996 (engine code M42B18) --> automatic gearbox- 318is 4cyl 1.9L 140hp from 02/1995 to 07/1998 (engine code M44B19) --> automatic gearbox- 320i 150hp from 12/1991 to 08/1992 (engine code M50B20) --> automatic gearbox- 320i 150hp from 09/1992 to 09/1995 (engine code M50B20TU) --> automatic gearbox- 320i 150hp from 12/1993 to 05/1998 (engine code M52B20) --> automatic gearbox
Bmw 3 Series E36 Touring:
- 316i 4cyl 102hp from 09/1996 to 05/1999 (engine code M43B16) --> automatic gearbox- 318i 4cyl 116hp from 02/1995 to 05/1999 (engine code M43B18) --> automatic gearbox- 320i 150hp from 05/1994 to 05/1999 (engine code M52B20) --> automatic gearbox
Bmw 3 Series E36 Compact:
- 316i 4cyl 102hp from 06/1993 to 12/1998 (engine code M43B16) --> automatic gearbox- 316i 4cyl 1.9L 105hp from 01/1999 to 07/2000 (engine code M43B19) --> automatic gearbox- 318ti 4cyl 140hp from 08/1994 to 01/1996 (engine code M42B18) --> automatic gearbox- 318ti 4cyl 1.9L 140hp from 01/1995 to 08/2000 (engine code M44B19) --> automatic gearbox
Bmw 3 Series E36 Coupé:
- 316i 4cyl 102hp from 03/1993 to 03/1999 (engine code M43B16) --> automatic gearbox- 318is 4cyl 140hp from 02/1991 to 08/1992 (engine code M42B18) --> manual gearbox- 318is 4cyl 1.9L 140hp from 02/1995 to 05/1999 (engine code M44B19) --> automatic gearbox- 320i 150hp from 12/1991 to 08/1992 (engine code M50B20) --> automatic gearbox- 320i 150hp from 09/1992 to 07/1995 (engine code M50B20TU) --> automatic gearbox- 320i 150hp from 01/1994 to 11/1998 (engine code M52B20) --> automatic gearbox
Bmw 3 Series E36 Cabriolet :
- 318i 4cyl 116hp from 11/1993 to 09/1999 (engine code M43B18) --> automatic gearbox- 320i 150hp from 11/1992 to 04/1995 (engine code M50B20TU) --> automatic gearbox- 320i 150hp from 05/1994 to 10/1999 (engine code M52B20) --> automatic gearbox
Screws and bolts not supplied.

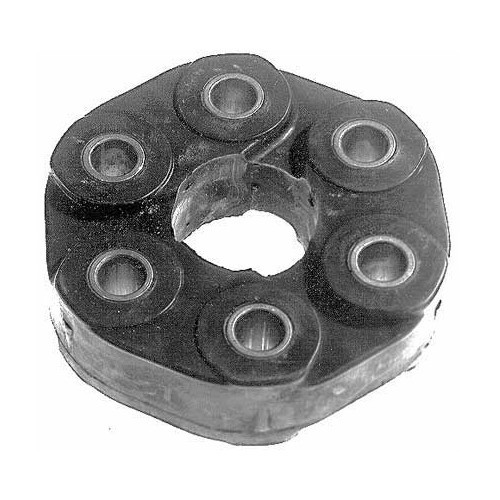

MEYLE HD range 110mm reinforced transmission selector for BMW 5 series E34 Sedan and Touring :

Sedan :
- 518i 4cyl 113hp phase 1 from 04/1989 to 05/1994 (engine code M40B18) --> manual and automatic gearboxes
- 520i 129hp phase 1 from 06/1987 to 04/1990 (engine code M20B20) --> manual and automatic gearboxes
- 520i 150hp phase 1 from 05/1990 to 12/1990 (engine code M50B20) --> manual gearbox
- 520i 150hp phase 1 from 09/1990 to 08/1992 (engine code M50B20) --> automatic gearbox
- 520i 150hp phase 1 from 09/1992 to 03/1994 (engine code M50B20TU) --> automatic gearbox
- 520i 150hp phase 2 from 04/1994 to 12/1995 (engine code M50B20TU) --> automatic gearbox
- 525ix 192hp phase 1 from 04/1991 to 08/1992 (engine code M50B25) --> manual and automatic gearboxes
- 525ix 192hp phase 1 from 09/1992 to 03/1994 (engine code M50B25TU) --> manual and automatic gearboxes
- 525ix 192hp phase 2 from 04/1994 to 12/1995 (engine code M50B25TU) --> manual and automatic gearboxes
- 524td 115hp phase 1 from 07/1987 to 08/1991 (engine code M21D24) --> automatic transmission

Touring :
- 520i 150hp phase 1 from 11/1990 to 12/1990 (engine code M50B20) --> manual gearbox
- 520i 150hp phase 1 from 11/1990 to 08/1992 (engine code M50B20) --> automatic gearbox
- 520i 150hp phase 1 from 09/1992 to 03/1994 (engine code M50B20TU) --> automatic gearbox
- 520i 150hp phase 2 from 04/1994 to 06/1996 (engine code M50B20TU) --> automatic gearbox
- 525ix 192hp phase 1 from 07/1991 to 08/1992 (engine code M50B25) --> manual and automatic gearboxes
- 525ix 192hp phase 1 from 09/1992 to 03/1994 (engine code M50B25TU) --> manual and automatic gearboxes
- 525ix 192hp phase 2 from 04/1994 to 03/1996 (engine code M50B25TU) --> manual and automatic gearboxes

Screws and bolts included (6 M10X50-10.9 screws and 6 M10 self-locking hex nuts).

Dimensions :
- Mounting centers: 78mm
- Outside diameter: 110mm
- Inside diameter: 40mm
- Thickness: 28mm

This bearing offers optimized quality compared to the original, with design flaws corrected and greater strength for improved durability and roadholding.

Located in the rear position, between the drive shaft and the axle,

For E90 & E91:
- 325 d M57N2
- 330 d M57N2

For E92 & E93:
- 325 d M57N2
- 330 d M57N2 & N57
- 330 xd N57 (E92 only)

For E90 LCI & E91 LCI:
- 325 d M57N2 & N57
- 330 d/xd N57

For E92 LCI & E93 LCI:
- 325 d N57
- 330 d N57
- 330 xd N57 (E92 only)

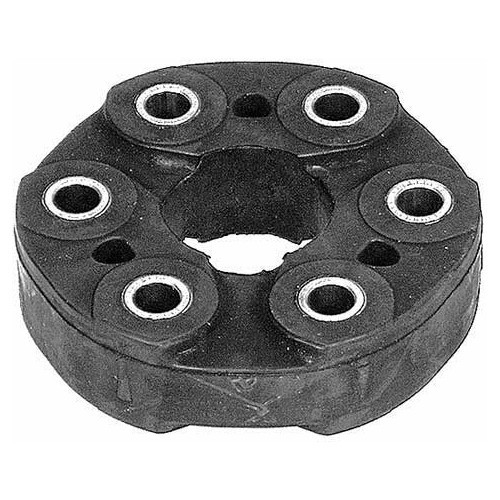

MEYLE HD range 135mm reinforced transmission Flector for BMW 3 series E36 Sedan, Touring, Compact, Coupé and Cabriolet :

E36 Sedan :
- M3 3.0L 6cyl 286hp from 06/1994 to 08/1995 (engine code S50B30)
- M3 3.2L 6cyl 321hp from 09/1995 to 12/1997 (engine code S50B32)

E36 Coupé :
- M3 3.0L 6cyl 286hp from 03/1992 to 08/1995 (engine code S50B30)
- M3 3.0L GT 6cyl 295hp from 11/1994 to 06/1995 (engine code S50B30)
- M3 3.2L 6cyl 321hp from 09/1995 to 12/1998 (engine code S50B32)

E36 Cabriolet :
- M3 3.0L 6cyl 286hp from 11/1993 to 12/1995 (engine code S50B30)
- M3 3.2L 6cyl 321hp from 02/1996 to 08/1999 (engine code S50B32)

Located between the gearbox outlet and the drive shaft,

For E60 & E61:
- 520 d M47N2
- 520 i M54 (E60 only)
- 523 i N52
- 525 i M54 & N52
- 530 i M54 & N52

For E60 LCI & E61 LCI:
- 520 d M47N2
- 520 d N47 (E60 only)
- 520 i N46N automatic transmission (E60 only)
- 520 i N43 automatic transmission
- 523 i N52N & N53
- 525 i N52N & N53
- 530 i N52N & N53

MEYLE HD 160mm reinforced transmission selector for BMW E90/E91/E92/E93

Located between gearbox output and drive shaft (front position),

For E90

MEYLE HD reinforced transmission selector for Bmw 6 Series:

Bmw E63 :

- 645ci 8 cyl 333hp from 03/2005 to 08/2005 automatic gearbox (engine code n62b44a)

Bmw E64 :

- 645ci 8 cyl 333hp from 03/2005 to 08/2005 automatic gearbox (engine code n62b44a)

Caution! For compatible manual gearboxes only from 04/2005 to 08/2005.

Screws and bolts included.

This bearing offers optimized quality compared to the original, with design flaws corrected and greater strength for improved durability and roadholding.

MEYLE HD range 140mm front or rear driveshaft selector for BMW 3 Series E90 Sedan, E91 Touring, E92 Coupé and E93 Cabriolet:

E90 Sedan :
- 330d 231hp from 02/2004 to 08/2008 (engine code M57D30TU2) --> automatic gearbox
- 330xd 231hp from 02/2004 to 08/2008 (engine code M57D30TU2) --> manual gearbox

E91 Touring :
- 330d 231hp from 02/2004 to 08/2008 (engine code M57D30TU2) --> automatic gearbox
- 330xd 231hp from 12/2004 to 08/2008 (engine code M57D30TU2) --> manual gearbox

E92 Coupé :
- 330d 231hp from 05/2005 to 08/2008 (engine code M57D30TU2) --> automatic gearbox
- 330d 245hp from 03/2008 to 02/2010 (engine code N57D30OL) --> automatic gearbox
- 330xd 231hp from 05/2005 to 08/2008 (engine code M57D30TU2) --> manual gearbox
- 330xd 245hp from 03/2008 to 02/2010 (engine code N57D30OL) --> manual gearbox

E93 Cabriolet :
- 330d 231hp from 09/2005 to 02/2009 (engine code M57D30TU2) --> automatic gearbox
- 330d 245hp from 09/2008 to 02/2010 (engine code N57D30OL) --> automatic gearbox

Dimensions :
- Number of holes: 6
- Hole diameter : M10
- Outside diameter: 140mm
- Mounting center distance: 105mm

This flector is mounted in the front position between the gearbox and the driveshaft, and in the rear position between the driveshaft and the axle (the 2 flectors are identical).

M10X1.5-10 ZNS3 screws and M10-10-ZNS3 self-locking hex nuts are not supplied.

This product is sold individually.

This part offers optimized quality compared to the original, with design flaws corrected and greater strength for improved durability and roadholding.

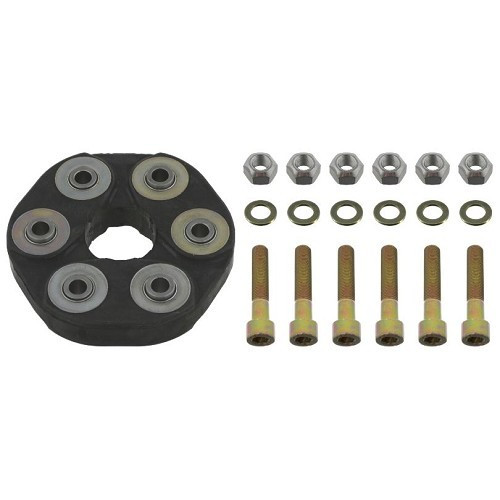

Transmission Selector for Mercedes 190

For front driveshaft mounting

For Mercedes 190 C-Class W201 listed below:
- 190 (201.022) from 10/1982 to 09/1984
- 190 (201.023) from 10/1984 to 06/1988
- 190 (201.023) from 09/1988 to 01/1991 Automatic transmission and up to chassis No. A495250 or F616831
- 190 D (201.122) from 07/1988 to 08/1989 Manual transmission and up to chassis No. A495250 or F616831
- 190 D (201.122) from 07/1988 to 08/1989 Manual transmission and up to chassis No. A495250 or F616831
- 190 D 2.5 (201.126) from 09/1985 to 06/1988
- 190 D 2.5 (201.126) from 07/1988 to 08/1993 Up to chassis N°A495250 or F616830
- 190 E 2.0 (201.024) from 10/1982 to 09/1988
- 190 E 2.0 (201.024) from 07/1988 to 08/1993 Manual gearbox up to chassis N°A495250 or F616784
- 190 E 2.0 (201.024) from 07/1988 to 08/1993 Automatic gearbox up to chassis N°A495250 or F616731

Axis 80mm
Outer diameter 128mm
Inner diameter 34mm
Thickness 20,5mm
Front mounting

Transmission selector sold complete with mounting kit
OEM quality

MEYLE HD range 140mm front or rear driveshaft selector for BMW 3 Series E90 Sedan, E91 Touring, E92 Coupé and E93 Cabriolet:

E90 Sedan :
- 330d 231hp from 02/2004 to 08/2008 (engine code M57D30TU2) --> automatic gearbox
- 330xd 231hp from 02/2004 to 08/2008 (engine code M57D30TU2) --> manual gearbox

E91 Touring :
- 330d 231hp from 02/2004 to 08/2008 (engine code M57D30TU2) --> automatic gearbox
- 330xd 231hp from 12/2004 to 08/2008 (engine code M57D30TU2) --> manual gearbox

E92 Coupé :
- 330d 231hp from 05/2005 to 08/2008 (engine code M57D30TU2) --> automatic gearbox
- 330d 245hp from 03/2008 to 02/2010 (engine code N57D30OL) --> automatic gearbox
- 330xd 231hp from 05/2005 to 08/2008 (engine code M57D30TU2) --> manual gearbox
- 330xd 245hp from 03/2008 to 02/2010 (engine code N57D30OL) --> manual gearbox

E93 Cabriolet :
- 330d 231hp from 09/2005 to 02/2009 (engine code M57D30TU2) --> automatic gearbox
- 330d 245hp from 09/2008 to 02/2010 (engine code N57D30OL) --> automatic gearbox

Dimensions :
- Number of holes: 6
- Hole diameter : M10
- Outside diameter: 140mm
- Mounting center distance: 105mm

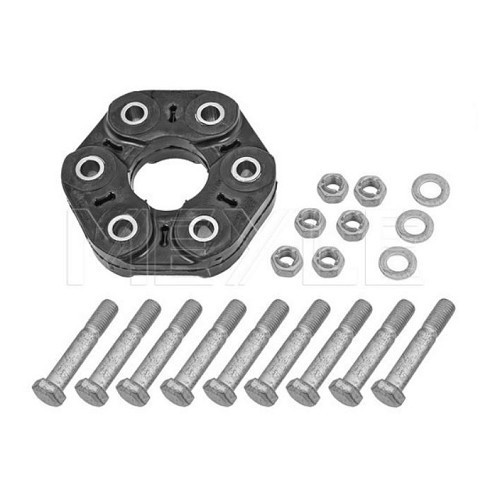

This flector is mounted in the front position between the gearbox and the driveshaft, and in the rear position between the driveshaft and the axle (the 2 flectors are identical).

6 M10X1.5-10 ZNS3 screws and 6 M10-10-ZNS3 self-locking hex nuts are supplied for mounting the flector.

This product is sold individually.

This part offers optimized quality compared to the original, with design flaws corrected and greater strength for improved durability and roadholding.

MEYLE HD reinforced transmission selector for Bmw 6 Series :

Bmw E63 :

- 650i 8 cyl 367hp from 02/2005 to 07/2007 automatic gearbox (engine code n62n48b)
- 650i 8 cyl 367hp from 04/2006 to 07/2010 automatic gearbox (engine code n62b48b)

Bmw E64 :

- 650i 8 cyl 367hp from 02/2005 to 07/2007 automatic gearbox (engine code n62b48b)
- 650i 8 cyl 367hp from 04/2006 to 07/2010 automatic gearbox (engine code n62b48b)

Warning! Not suitable for Bmw 6 Series 645i engine code n62b44a.

Screws and bolts not supplied.

This bearing offers optimized quality compared to the original, with design flaws corrected and greater strength for improved durability and roadholding.

FEBI transmissionselector for Bmw X5 E70 : Bmw X5 E70 : - X5 M 8cyl 555hp from 07/2008 to 06/2013 (engine code s63)
Bmw X5 E70 Lci : - M50D 6cyl 381hp from 08/2011 to 06/2013 (n57d30 Three Turbo)

Ridex transmissionselector for Bmw 5 Series:
Bmw 5 Series E60 Sedan :
- 520i 170hp from 04/2006 to 12/2009 (engine code N43B20O1)
Bmw 5 Series E61 Touring:
- 520i 170hp from 04/2006 to 05/2010 (engine code N43B20O1)
Screws and bolts not included.

RIdex transmission selector for Bmw z1 :
Bmw z1 E30 Roadster :
- 2.5i 6cyl 170hp from 07/1988 to 06/1991 (engine code m20b25)

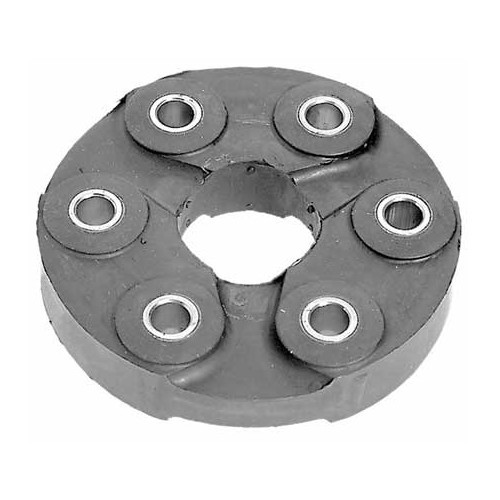

Transmission flex disc, dimensions:
Attachments centre-to-centre : 78mm
Outer diameter: 110mm
Inner diameter: 40mm
Thickness: 28mm
Suitable for:

BMW 5 Series E34 Saloon & Touring (Estate):
- 518 i 1.8 113hp manual gearbox and automatic
- 520 i 2.0 125hp, 129hp manual gearbox and automatic
- 520 i 2.0 24V 150hp manual gearbox and automatic
- 524 Td 2.4 TD 115hp manual gearbox and automatic
- 525 iX 2.5 24V 192hp manual gearbox and automatic
