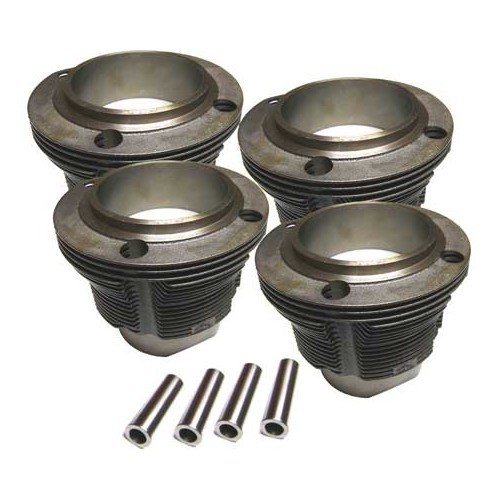

Cylinder capacity kit

AA complete performance kit: 1776 cc
- 4 pistons with bore: 90.50 mm
- 4 jackets base: 96 mm/height: 98 mm
- 4 pins & clips: 22 mm
- 12 rings
For Type 1 engine: 1300/1500/1600 (except CT)
- Crankshaft travel: 69 mm
- Block machining: Yes/cylinder heads: Yes
- Type approved: No (reserved for competition)

AA brand original Type 1192 kit, products:
- 4 pistons with bore: 77 mm
- 4 base jackets: 81.9 mm/height: 83.9 mm
- 4 pins & clips: 20 mm
- 12 rings

For Beetle, Karmann-Ghia & Combi, 1955 ->1960
with 1192 cc, 25/30 bhp engine (77 x 64 mm)
(the dynamo support is part of the block).

Complete 2.0 L kit with flat pistons:
cylinder liners, pistons, shafts and segments
Reproduction of the Porsche 914 2.0 L kit

For Type 4 engine: 2000 (1971cc)
- Pistons: flat (aluminium)
- Bore: 94 mm
- Stroke: 71 mm

Complete AA performance kit cubic capacity: 1915 cm3- 4 pistons bore: 94 mm- 4 liners base: 97.2 mm / top: 101 mm- 4 pins & clips: 22 mm- 12 piston ringsFor Type 1 engines: 1300 / 1500 / 1600 (except CT)- Crankshaft stroke: 69 mm- Block machining: Yes / Cylinder heads: Yes- Homologated: No (for competition use only)

MAHLE cylinder complete performance kit: 1641 cc
- 4 forged pistons with bore: 87 mm
- 4 jackets base: 90 mm/height: 94 mm
- 4 pins & clips: 22 mm
- 12 rings

For Type 1 engine: 1300/1500/1600 (except CT)
- Crankshaft travel: 69 mm
- Block machining: No/cylinder head: No (1300: Yes)
- Type approved: No (reserved for competition)

MAHLE complete cylinder performance kit: 1776 cc
- 4 forged pistons with bore: 90.50 mm
- 4 jackets base: 96 mm/height: 98 mm
- 4 pins & clips: 22 mm
- 12 rings
For Type 1 engine: 1300/1500/1600 (except CT)
- Crankshaft travel: 69 mm
- Block machining: Yes/cylinder heads: Yes
- Type approved: No (reserved for competition)

Sleeve for 1800 cc cylinder kit for type 4 engines.
VW Classic Part
Sold individually without the piston.

For VW Bay Window type 4 engines,
- 1800 cc (68hp, AP)

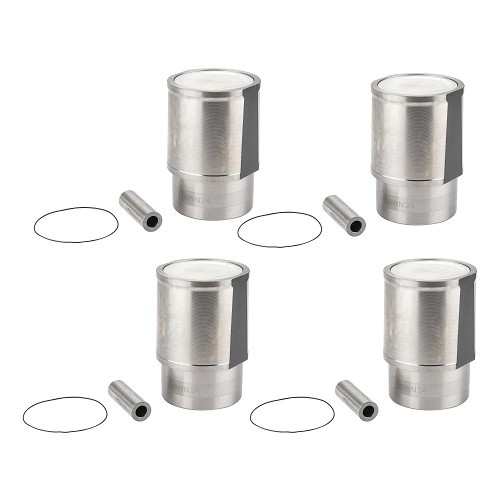

This piston liner kit for Alpine A110 Berlinette V85 (09/1969-09/1976) - 1289cc is true to the original.

This piston liner kit for Alpine A110 V85 berlinette is a quality reproduction. Intended for Alpine 1300 V85 type 13000vc with 810 engine, it includes liners, pistons, connecting rod pins and segmentation.

Compatible models:

- Berlinette A110 V85/1300 - type 1300 VC (10/1969-12/1976)

AA full performance 2412 cc cylinder kit:
cylinder liners, pistons, shafts and segments.
Requires machining of the cylinder heads.

For Type 4 engine: 2000 cc (1971cc)
- Pistons: flat
- Bore: 104 mm
- Stroke: 71 mm

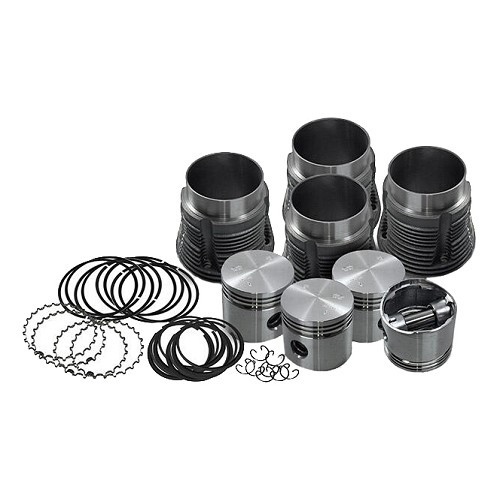

Displacement kit 1192cc 30hp foot-molded engine only for VW Combi Split up to 1967.

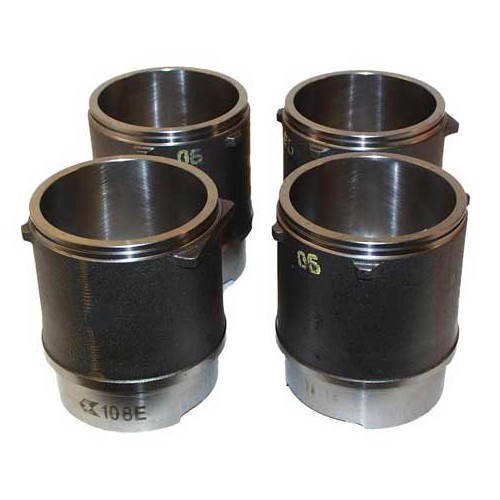

Liner and piston assembly for Renault 5

For Renault 5 :
- Renault 5 LS (R1224) from 04/1974 to 06/1975 - Cléon Fonte 1289cm3 64hp (810-725)
- Renault 5 TS (R1224/R1394) from 07/1975 to 12/1984 - Cléon Fonte 1289cm3 64hp (810-725)
- Renault 5 GTL (R1225) from 02/1976 to 06/1979 - Cléon Fonte 1289cm3 64hp (810-726)
- Renault 5 1300 Automatic (R1225/R1395) from 01/1978 to 01/1981 - Cléon Fonte 1289cm3 64hp (810-729)

This complete, original-displacement kit includes liners, pistons, connecting-rod pins and segmentation.

Complete 1.8 L kit with cylinder liners, pistons, shafts and segments

For Type 4 engine: 1800 (1793cc)
- Bore: 93 mm
- Stroke: 66 mm

Complete MAHLE performance kit displacement: 2007 / 2110 cc
- 4 forged pistons bore : 90.5 mm
- 4 liners base : 96 mm / top : 98 mm
- 4 pins

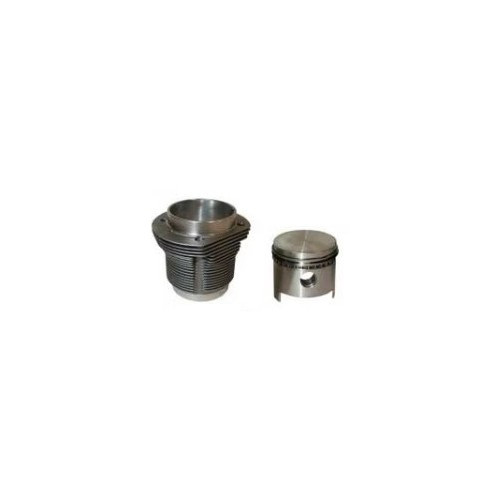

Complete original 1200 piston cylinder :- 1 piston bore: 77 mm- 1 liner base: 90 mm / top: 90 mm- 1 pins & clips : 20 mm- 4 piston rings
For Beetle 1200 since 08/1969(77 x 64 mm) from engine N° D 525050please check, as your engine may no longer be the original one
