Camshaft

For Saloon & Compact:
- 316i/ti N40, N42, N45 & N46
- 318i/ti N42 & N46

For Touring:
- 316i N42 & N46
- 318i N42 & N46

For Coupé:
- 316Ci N40 & N45
- 318Ci N42 & N46

For Cabriolet:
- 318Ci N42 & N46

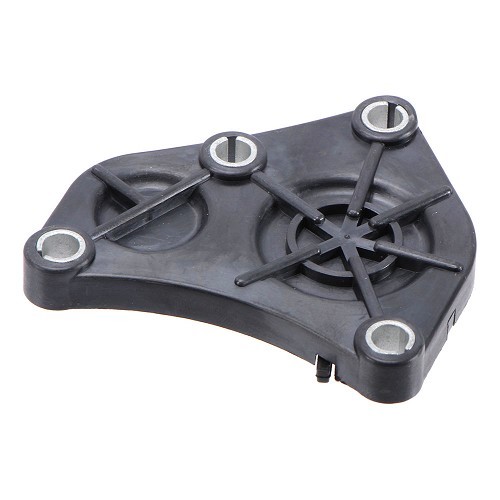

For Roadster (E85):
- 2.0 i N46

Located at the end of the cylinder head,

For E60 LCI:
- 520 i N46N

For E81 & E87 LCI:
- 116 i 1.6 N45N
- 118 i N46N
- 120 i N46N

For E82 & E88:
- 118 i N46N (E88 only)
- 120 i N46N

For E87:
- 116 i N45
- 118 i N46
- 120 i N46

This EMPI GT7 camshaft for Volkswagen type 1 engines is a reference for type 1 perfo engines from 1600cc displacement upwards.
Machined in a refrigerated foundry to EMPI specifications, GT series camshafts are Parkerized("deep" manganese phosphating) for easy running-in and high hardness.
Valve lift (exhaust and intake): 0.538" => 13.66mm at 1.1:1Cam lift: 0.430" =>10.92mmOpening time: 295°.
Supplied with molybdenum mounting grease and quality screws and bolts, all camshaft specifications can be found in the downloadable pdf.

Original type camshaft for Bmw 3 Series:
- Compatible with Bmw 3 Series E36 Sedan from 12/1989 to 03/1994 only with 4-cylinder m40 petrol engine.
Warning! Not suitable for models 316i and 318i engine code m43.
Camshaft wear is a known problem on these models.Clattering and difficulty in revving up are the consequences of the weakness of these engines.

Intake camshaft

For A3 (8P):
- 2.0 TDi 136 hp (AZV, CBAA)
- 2.0 TDi 140hp (CBAB, CFFB, BKD, CCFA, CLJA)
- 2.0 TDi 170hp (BMN, CBBB, CFGB)

Cover to seal the camshaft,

For E90 & E91:
- 316 i N45 & N45N (E90 only)
- 318 i N46 & N46N
- 320 i N46 & N46N
- 320 si N45 (E90 only)

For E92 & E93:
- 320 i N46N

For E90 LCI, E91 LCI, E92 LCI & E93 LCI:
- 316 i N45N (E90 only)
- 318 i N46N (for E90 & E91 only)
- 320 i N46N

This EMPI GT2 camshaft for Volkswagen type 1 engines is a reference for type 1 perfo engines from 1600cc displacement upwards.
Machined in a refrigerated foundry to EMPI specifications, GT series camshafts are Parkerized("deep" manganese phosphating) for easy running-in and high hardness.
Valve lift (exhaust and intake): 0.427" => 10.85mm at 1.1:1Cam lift: 0.388" =>9.85mmOpening time: 282
Supplied with molybdenum mounting grease and quality screws and bolts, all camshaft specifications can be found in the downloadable pdf.

Origine camshaft for Volkswagen Golf 2
For VW Golf 2:- 1.6 75hp (EZ)- 1.6 82hp (HM)
Synchronized with the rest of the engine by the timing belt, the camshaft controls the opening and closing of the intake and exhaust valves. It ensures good combustion in the cylinders. Worn cams can alter the intake and exhaust cycle, leading to engine misfiring.
Bare camshaft, without pulley or bearingsOriginal Volkswagen part

Suitable for :
- Golf 2 16S
- Golf 3 16s
- Corrado & Passat 16S

Chain that connects the exhaust and intake camshafts via sprockets,

For Ibiza (6K):
- 2.0 16s (ADL, ABF)

Intake camshaft,

For Golf 6:
- 1.6 TDi 90hp (CAYB)
- 1.6 TDi 105hp (CAYC)
- 2.0 TDi 110hp (CBDC, CLCA)
- 2.0 TDi 136hp (CBAA, CFFA)
- 2.0 TDi 140hp (CBAB, CJAA, CFFB)
- 2.0 TDi 170hp (CBBB, CFGB)

Original VW part for Saloon or Variant:
- 1.4 75hp (AHW) up to engine no. ->164200
- 1.4 75hp (AKQ) up to engine no. ->241244

This EMPI GT1 camshaft for Volkswagen type 1 engines is a reference for type 1 perfo engines from 1600cc displacement upwards.
Machined in a refrigerated foundry to EMPI specifications, GT series camshafts are Parkerized("deep" manganese phosphating) for easy running-in and high hardness.
Valve lift (exhaust and intake): 0.422" => 10.72 mm at 1.1:1Cam lift: 0.384" =>9.75mmOpening time: 275
Supplied with molybdenum mounting grease and quality screws and bolts, all camshaft specifications can be found in the downloadable pdf.

Engle VZ-14 performance camshaft: 279°.
Gap between intake and exhaust cams: 108°.
Cam lift: 11.049 mm / Valve lift: 12.154 mm
Power and torque up to 6000 rpm
Ideal for medium-displacement road engines
Order VD20004 pulley additionally.
Fitted with oil pump for 3-pin pulley.

For Beetle, Karmann, Combi, Buggy, 181, Type 3 ...
Type 1 engines: 1300, 1500, 1600, 1641cc
with original rocker arms ratio 1.1/1

Racing Engle W-125 performance camshaft: 301°.
Gap between intake and exhaust cams: 108°.
Cam lift: 10.617 mm / Valve lift: 11.68 mm (1.1/1)
Power and torque at high revs
Ideal for large-displacement competition engines
Order VD20004 pulley additionally.
Fitted with oil pump for 3-pin pulley.

For Beetle, Karmann, Combi, Buggy, 181, Type 3 ...
Type 1 engines: 1776, 1835, 1915, 2007, 2237cc
with original 1.1/1 or 1.25/1 rocker arms

Unstable idle on medium displacement, large valves and reinforced springs recommended for fitting this AAC.

Racing Engle W-130 performance camshaft: 308°.
Intake and exhaust camshaft spacing: 108°.
Cam lift: 10.64 mm / Valve lift: 11.706 mm (1.1/1)
Power and torque at high revs
Ideal for large-displacement competition engines
Order VD20004 pulley additionally.
Fitted with oil pump for 3-pin pulley.

For Beetle, Karmann, Combi, Buggy, 181, Type 3 ...
Type 1 engines: 1776, 1835, 1915, 2007, 2237cc
with original 1.1/1 or 1.25/1 rocker arms

Unstable idle on medium displacement, large valves and reinforced springs recommended for fitting this AAC.

This EMPI GT2 camshaft for Volkswagen type 1 engines is a reference for type 1 perfo engines from 1600cc displacement upwards.
Machined in a refrigerated foundry to EMPI specifications, GT series camshafts are Parkerized("deep" manganese phosphating) for easy running-in and high hardness.
Valve lift (exhaust and intake): 0.430" => 10.92mm at 1.1:1Cam lift: 0.391" =>9.93mmOpening time: 291°.
Supplied with molybdenum mounting grease and quality screws and bolts, all camshaft specifications can be found in the downloadable pdf.

Central camshaft for :
- 914-4 1.7 à 2.0

Sold without pulley.

Please note: due to their reinforced nature, this camshaft should only be used with Web-cam tappets.
Mount the pulley on its AAC using Loctite threadlocker and tighten to torque (2.5daN). In some cases, it may be necessary to lightly grind the screw heads if they touch the oil pump body during blank assembly.
